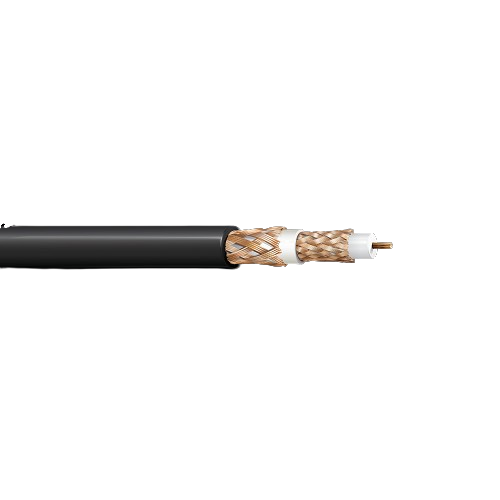

Belden 1859A 15 AWG 1 Conductor 19x27 Stranding Bare Copper 300V Video Triax Coax Cable

Description:-

Triax, RG11, 15 AWG (19x27) Bare Copper Conductor, FEP Insulation, 95% Bare Copper Braid Shield, PVDF Insulation, 90% Bare Copper Braid Shield, PVDF Jacket, CMP.

Insulation:-

• Material: FEP - Fluorinated Ethylene Propylene (Foam)
• Nom. Insulation Diameter: 0.285 in (7.24 mm)

Inner Shield:-

• Layer: 1
• Shield Type: Braid
• Material: Bare Copper (BC)
• Coverage: 95%

Outer Shield:-

• Layer: 1
• Shield Type: Braid
• Material: Bare Copper (BC)
• Coverage: 90%

Outer Jacket:-

• Material: PVDF - Polyvinylidene Fluoride
• Nom. Diameter: 0.350 in (8.89 mm)

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.406 in (10.3 mm)

Standards:-

• UL Voltage Rating: 300 V (CMP)
• Nom. Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -20°C to +125°C

Applications:-

• Analog Video; Interconnect camera to CCU (camera control unit)

Specifications:-

• Size (AWG): 15
• No. of Conductor: 1
• Stranding: 19x27
• RG Type: 11
• Nom. Diameter: 0.064 in
• Conductor Material: BC - Bare Copper
• Part Number: 1859A
