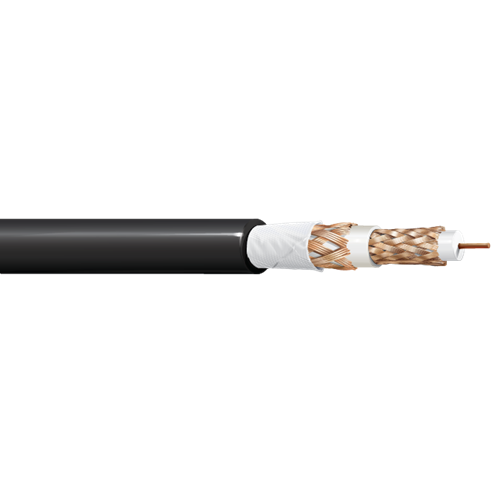

Belden 1858A 15 AWG 1 Conductor 19x27 Stranding Bare Copper 300V Video Triax Cable

Belden 1858A 15 AWG 1 Conductor 19x27 Stranding Bare Copper 300V Video Triax Cable

SKU: SKU: NES1858A Download PDF

FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Regular price Now $5.25 /FT
Regular price BEFORE   $0.00 Sale price Now $5.25 /FT
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Belden 1858A 15 AWG 1 Conductor 19x27 Stranding Bare Copper 300V Video Triax Cable

Description:

15 AWG stranded (19x27) 0.064" bare copper conductor, foam HDPE insulation, bare copper braid shields (95% coverage), Belflex PVC jacket.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 0.312 in (7.92 mm)
• Gas Injected

Inner Shield:

• Shield Type: Braid
• Material: Bare Copper (BC)
• Coverage: 95%

Outer Shield:

• Shield Type: Braid
• Material: Bare Copper (BC)
• Coverage: 95%

Inner Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.391 in (9.93 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.52 in (13 mm)
• Overall Cable Diameter (Nominal): 0.52 in (13 mm)

Standards:

• Voltage Rating: 300 V RMS
• Operating Temperature: -50°C To +80°C
• Nom. Characteristic Impedance: 75 Ohm

Applications:

• Analog Video, Interconnect Camera to CCU (Camera Control Unit)

Specifications:

• Size (AWG):
15
• No. of Conductor: 1
• Stranding: 19x27
• RG Type: RG11
• Nominal Diameter: 0.064 in
• Conductor Material: BC - Bare Copper
• Part Number: 1858A
