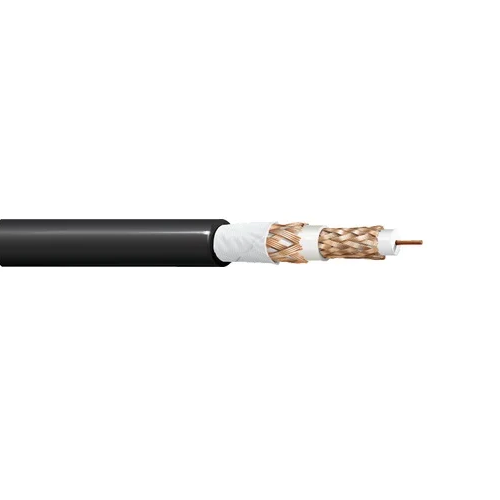

Belden 1856A 20 AWG 1 Conductor Solid Bare Copper 300V Triax Cable

Description:

Triax, RG59, 20 AWG Solid Bare Copper Conductor, PE Insulation, 95% Bare Copper Braid Shield, PE Insulation, 95% Bare Copper Braid Shield, Belflex Jacket.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 0.145 in (3.68 mm)

Inner Shield:

• Layer: 1
• Shield Type: Braid
• Material: Bare Copper (BC)
• Coverage: 95%

Inner Jacket:

• Material: PE - Polyethylene
• Nom. Diameter: 0.216 in (5.49 mm)

Outer Shield:

• Layer: 1
• Outer Shield Type: Braid
• Material: Bare Copper (BC)
• Coverage: 95%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.360 in (9.14 mm)
• Overall Cable Diameter (Nominal): 0.360 in (9.14 mm)

Standards:

• Voltage Rating: 300V
• Operating Temperature: -50°C to +80°C
• Nom. Characteristic Impedance: 75 Ohm

Applications:

• Analog Video; Interconnect camera to CCU (camera control unit)

Specifications:

• Size (AWG): 20
• No. of Conductor: 1
• Stranding: Solid
• RG Type: 59
• Nom. Diameter: 0.032 in
• Conductor Material: BC - Bare Copper
• Part Number: 1856A
