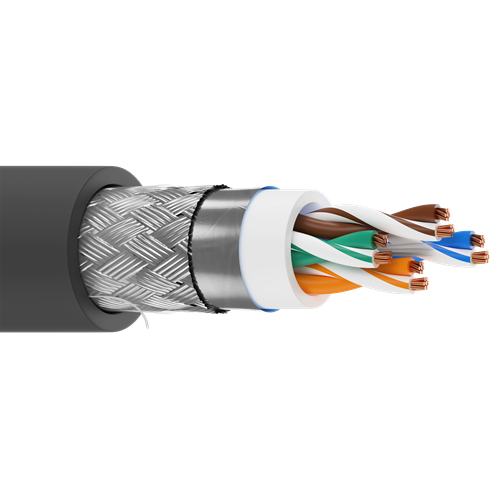

Belden 7938A 24 AWG 4 Pair 7x32 Stranding Bare Copper Alloy Cat 5e DataTuff Cable

Description:

Industrial Ethernet Cat 5e, 4 Bonded-Pair, 24 AWG (Stranded) Alloy, PO Insulation, Overall Beldfoil+Tinned Copper Braid (85%) Shield, TPE Inner Jacket, TPE Outer Jacket, High Flex 10M cycles at 10xOD AWM 20606.

Insulation:

• Material: PO - Polyolefin

Inner Jacket:

• Material: TPE - Thermoplastic Elastomer
• Nom. Diameter: 0.254 in (6.45 mm)
• Separator: Central Filler

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 85%

• Dual shielded with 100% coverage Beldfoil shield plus an 85% tinned copper braid shield.

Outer Jacket:

• Material: TPE - Thermoplastic Elastomer
• Nom. Diameter: 0.342 in (8.69 mm)
• Overall Cable Diameter (Nominal): 0.342 in (8.69 mm)
• Polyester Tape

Standards:

• Voltage Rating: 300 V
• Operating Temperature: -40°C To +80°C

Applications:

• robotic, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc
