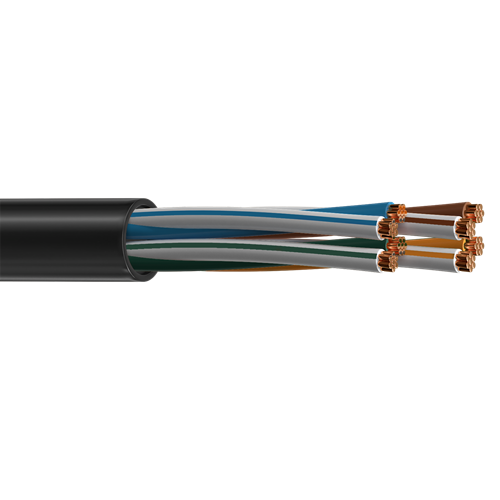

Belden 7930A 24 AWG 4 Pair 7x32 Stranding Bare Copper Cat 5e CMR DataTuff Cable

Belden 7930A 24 AWG 4 Pair 7x32 Stranding Bare Copper Cat 5e CMR DataTuff Cable

SKU: NES7930A   Download PDF

Select a gauge:
  • Belden 7930A 24 AWG 4 Pair 7x32 Stranding Bare Copper Cat 5e CMR DataTuff Cable
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $1.58 /FT   Web pricing policy
BEFORE   Now $1.58 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Belden 7930A 24 AWG 4 Pair 7x32 Stranding Bare Copper Cat 5e CMR DataTuff Cable

Description:

Industrial Ethernet Cat 5e, 4 Pair 24 AWG (7x32) Bare Copper, PO Insulation, PVC Outer Jacket, CMX-Outdoor CMR.

Insulation:

• Material: PO - Polyolefin

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.24 in (6.1 mm)
• Overall Cable Diameter (Nominal): 0.24 in (6.1 mm)

Standards:

• Operating Temperature: -40°C To +75°C
• Voltage Rating: 300 V (CMR), 300 V (CMX-Outdoor)

Applications:

• outdoor, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc.

Specifications:

• Size (AWG): 24
• No. of Pair: 4
• Stranding: 7x32
• Conductor Material: BC - Bare Copper
• Part Number: 7930A
