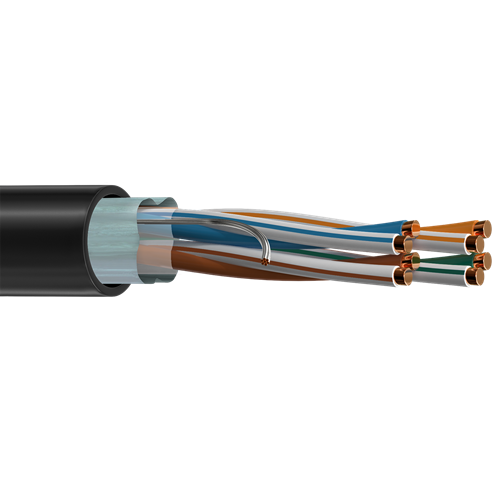

Belden 7929A 24 AWG 4 Pair Solid Bare Copper Cat 5e CMR DataTuff Cable

Description:

Industrial Ethernet Cat 5e, 4 Bonded-Pair 24 AWG (Solid) Bare Copper, PO Insulation, Overall Beldfoil Shield, PVC Outer Jacket, CMR CMG.

Insulation:

• Material: PO - Polyolefin

Outer Shield:

• Shield Type: Tape
• Material: Polyester + Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.275 in (6.99 mm)
• Overall Cable Diameter (Nominal): 0.275 in (6.99 mm)

Standards:

• Operating Temperature: -40°C To +75°C
• Voltage Rating: 300 V (CMR), 300 V (CMX-Outdoor)

Applications:

• mining, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc.
