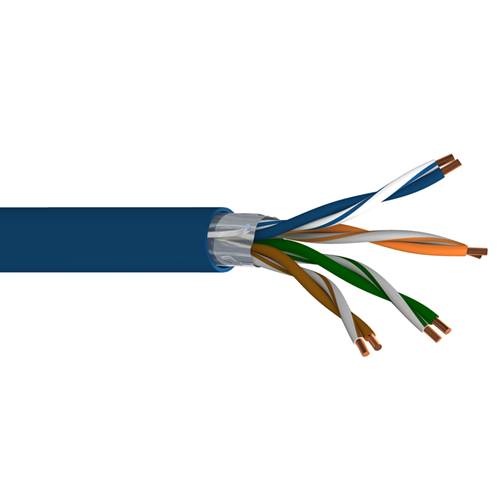

Belden 7936A 24 AWG 4 Pair Solid Bare Copper Cat 5e DataTuff Cable

Description:

Industrial Ethernet Cat 5e, 4 Bonded-Pair 24 AWG (Solid) Bare Copper, PO Insulation, Overall Beldfoil Shield, LSZH Outer Jacket, CMG-ST1, NFPA 130.

Insulation:

• Material: PO - Polyolefin

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC

Outer Jacket:

• Material: PO - Polyolefin
• Nom. Diameter: 0.265 in (6.73 mm)
• Overall Cable Diameter (Nominal): 0.265 in (6.73 mm)

Standards:

• Operating Temperature: -10°C To +75°C
• Voltage Rating: 300 V (CM), 300 V (CMG)

Applications:

• noisy environment, shipboard, transportation, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc
