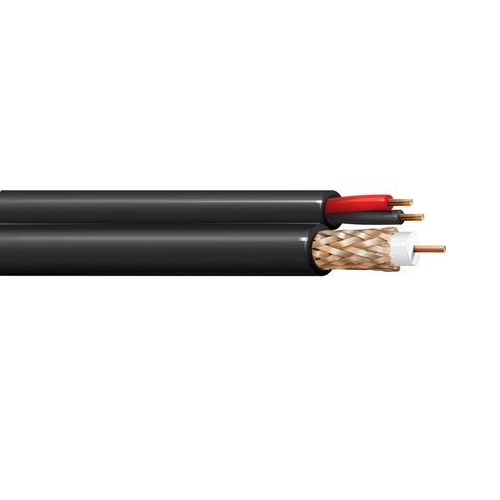

Belden 579945 25 AWG 1 Conductor 20 AWG 1 Pair Bare Copper 300V CCTV Plus Audio Cable

Description:-

25 AWG bare copper conductor, foam polyolefin insulation, bare copper braid shield, PVC jacket

Insulation:-

• Coax Insulation Material: Gas-injected FPE - Foam Polyethylene
• Coax Insulation Diameter: 0.085 in.

Inner Shield:-

• Coax Inner Shield Type: Braid
• Coax Inner Shield Material: BC - Bare Copper
• Coax Inner Shield % Coverage: 95 %

Insulation:

• Twisted Pair Insulation Material: PVC - Polyvinyl Chloride
• Twisted Pair Insulation Diameter: 0.056 in.

Inner Shield:

• Twisted Pair Inner Shield Material: Unshielded

Outer Jacket:-

• Overall Cabling Outer Jacket Material: PVC - Polyvinyl Chloride

Overall Diameter:

• Overall Composite Cabling Nominal Diameter: 0.151 x 0.332 in.

Standards:-

• UL Voltage Rating: 300 V RMS
• Nominal Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -20°C To +75°C

Specifications:-

Coax:
• Size (AWG): 25
• No. of Conductor: 1
• Stranding: Solid
• RG Type (Single Coax): 59/U
• Coax Conductor Diameter: 0.018 in.
• Conductor Material: BC - Bare Copper

Twisted Pair Cable(s):
• Size (AWG): 20
• No. of Conductor: 1
• Stranding: 7x28
• Coax Conductor Diameter: 0.0378 in.
• Conductor Material: BC - Bare Copper
• Part Number: 579945
