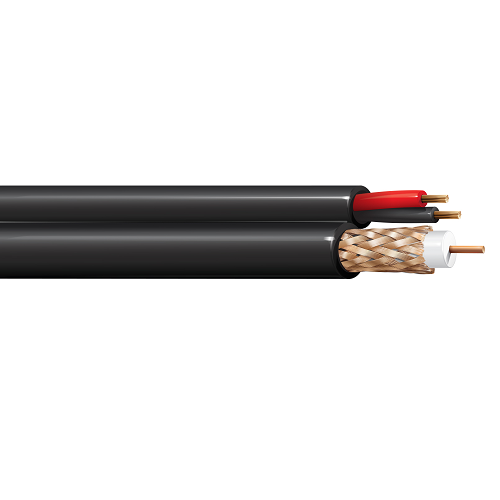

Belden 549945 20 AWG 1 Pair 18 AWG 1 Conductor Bare Copper 300V PTZ Coax Cable

Description:-

PTZ (CCTV + Power/Audio) Cable, Rated-CMG, 1-RG59 20 AWG solid bare copper with foam polyethylene, 95% bare copper braid, 1-18 AWG stranded bare copper pair with polypropylene insulation, unshielded, Siamese with PVC jacket.

Insulation:-

Element: Coax(es)
• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 0.145 in (3.68 mm)

Element: Pair1
• Material: PP - Polypropylene
• Nom. Insulation Diameter: 0.059 in (1.5 mm)

• Gas Injected

Inner Shield:-

• Shield Type: Braid
• Material: Bare Copper (BC)
• Coverage: 90%

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.232 x 0.450 in

Standards:-

• RG Type: 59
• Nom. Characteristic Impedance: 75 Ohm
• UL Voltage Rating: 300 V RMS (UL Type CMG)
• Operating Temperature Range: -30°C To +75°C

Applications:-

• Surveillance, CCTV Camera, PTZ (Pan-Tilt-Zoom)

Specifications:-

Element: Coax(es)
• Size (AWG): 20
• No. of Pair: 1
• Stranding: Solid
• Nom. Diameter: 0.032 in
• Conductor Material: BC - Bare Copper

Element: Pair1
• Size (AWG): 18
• No. of Conductor: 1
• Stranding: 7x26
• Nom. Diameter: 0.047 in
• Conductor Material: BC - Bare Copper
• Part Number: 549945
