Belden 639948 18 AWG 1 Conductor Solid 1 Pair 7x26 Stranding RG-6 75 Ohm PTZ Cable
Description:

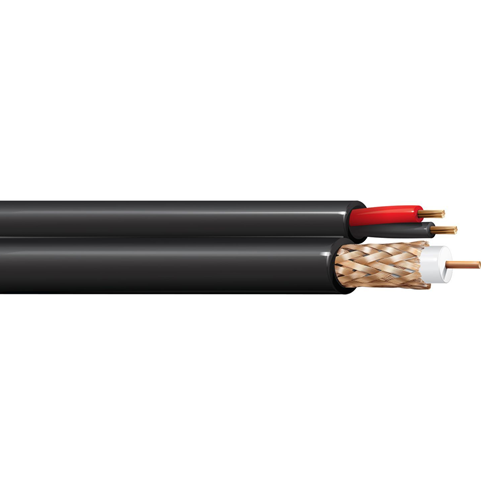

PTZ (CCTV + Power/Audio) Cable, Plenum-CMP, 1-RG6 18 AWG solid bare copper with foam FEP, 95% bare copper braid, 1-18 AWG stranded bare copper pair with Flamarrest insulation, Siamese with Flamarrest jacket.
Insulation:
Element: Coax(es);-
• Material: PE - Polyethylene (Foam)
• Nominal Diameter: 0.170 in
Element: Pair(es);-
• Material: PVC - Polyvinyl Chloride
• Nominal Diameter: 0.062 in
Inner Shield:
Element: Coax(es);-
• Type: Braid
• Material: Bare Copper (BC)
• Coverage [%]: 95%
Element: Pair(es);-
• No Shield
Inner Jacket:
Nominal Diameter: 0.230 in
Outer Jacket:
• Material: PVC - Polyvinyl Chloride
• Material Trade Name: Flamarrest
• Nominal Diameter: 0.230 in x 0.424 in
Applications:
• Surveillance, CCTV Camera, PTZ (Pan-Tilt-Zoom)
Element: Coax(es);-
• Size (AWG): 18
• Conductor Count: 1
• Stranding: Solid
• Conductor Material: BC - Bare Copper
• Impedance: 75 Ohm
• RG Type: 6
Element: Pair(es);-
• Size (AWG): 18
• Number of Pair: 1
• Stranding: 7x26
• Nom. Diameter: 0.047 in
• Conductor Material: BC - Bare Copper
• RG Type: 6
• Part Number: 639948
