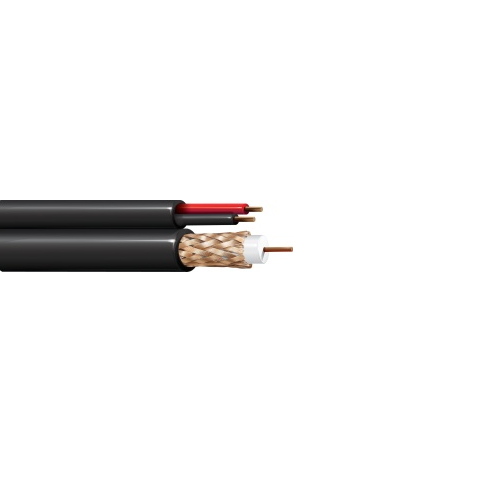

Belden 1306SB 18 AWG 1 Pair 1 Conductor Bare Copper 300V Coax Cable

Description:-

Composite Shipboard, 18 AWG Coax BC, BC Braid Shield 95% coverage, FPE insulation for video and 1 PR 18 AWG BC, stranded (7x26), PP insulation for power, overall CMG-LS rating, LSZH jacket.

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nominal Diameter: 0.18 in

• Material: PP - Polypropylene
• Nominal Diameter: 0.058 in

Inner Shield:-

• Shield Type: Braid
• Material: Bare Copper (BC)
• Coverage: 95%

Outer Shield:-

• Shield Type: Braid
• Material: Bare Copper (BC)
• Coverage: 95%

Outer Jacket:-

• Material: LSZH - Low Smoke Zero Halogen (Flame Retardant)
• Nom. Diameter: 0.275 x 0.514 in

Standards:-

• UL Voltage Rating: 300 V RMS
• Nominal Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -30°C To +75°C

Applications:-

• Surveillance, CCTV Camera, PTZ (Pan-Tilt-Zoom), Shipboard, Low Smoke

Specifications:-

• Size (AWG): 18
• No. of Pair: 1
• Stranding: Solid
• Nominal Diameter: 0.04 in
• Conductor Material: BC - Bare Copper

• Size (AWG): 18
• No. of Conductor: 1
• Stranding: 7x26
• Nominal Diameter: 0.046 in
• Conductor Material: BC - Bare Copper
• Part Number: 1306SB
