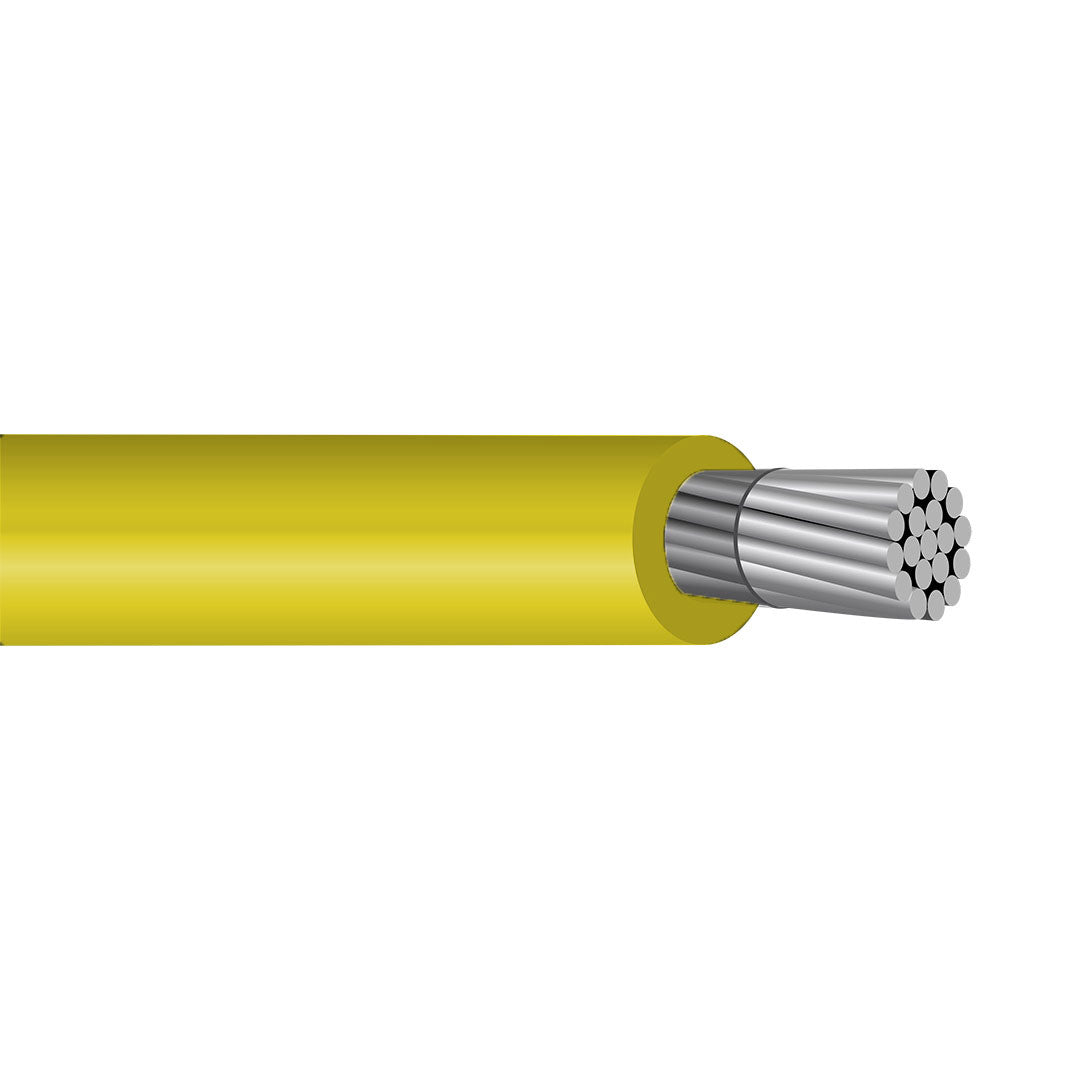

8 AWG XHHW-2 Aluminum Cable 600V

SKU: SKU: NES1733X1 Download PDF

Color Black Blue Green Orange Red White Yellow Brown Gray

Select a gauge:

8 AWG XHHW-2 Aluminum Cable 600V

Set the Length:

Length:

Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.

Now $0.49 /FT Web pricing policy

~~BEFORE~~ Now $0.49 /FT Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Applications Features Specifications Reviews

Product Information

Also Known As:

8 XHHW-2 cable, 8 XHHW-2 cable, 8 rw90 cable, 8 rw90 wire, 8 type se cable style u type XHHW-2, 8 XHHW-2, 8 southwire XHHW-2, 8 XHHW-2 insulation, 8 awg wire, 8 gauge aluminum wire, 8 aluminum wire

Conductors:

XHHW-2 conductor is a soft drawn bare 8000 series aluminum, with Class B stranding per ASTM. Stranded conductors reduce power loss and are also easier to use in applications where flexibility is vital.

Insulation:

XHHW-2 has abrasion, heat, and moisture resistant cross-linked polyethylene insulation. Cross linking a polyethylene helps to achieve an excellent strength that makes the material suitable for covering this cable used in harsh conditions.

Compatible with Manufacturer

Houston item :	Black : HW002A00601 Black : 6-01XHHWBLACKAL
Priority Wire & Cable :	Black : 6-01XHHW-2-ALUM
Omni Cable item :	Black : M806ST-01 Blue : M806ST-05 Green : M806ST-04 Orange : M806ST-07 Red : M806ST-03 White : M806ST-02 Yellow : M806ST-08 Brown : M806ST-010 Gray : M806ST-06
Southwire :	Black : 11270601 Blue : 64383799 Green : 58532199 Orange : 59121099 Red : 64383699 White : 59121299 Yellow : 59121199 Brown : 59120999

Resources

Applications

These electrical wires, also known as XHHW-2 cables, are primarily used for power distribution, in both wet and dry places, with ambient temperatures not exceeding 90°C. Voltage rating for this electrical wire, XHHW-2 cable, is 600V.

Based on 6 awg ampacity, the applications are:

• Branch circuits
• Feeder circuits
• Sub-panel distribution
• Air conditioning units
• Conduit systems
• Motors and pumps
• Renewable energy systems

Features

Standards:

• XHHW-2 meet or exceed the following standards

• UL standard 44

• Requirements of the National Electrical Code.

• ASTM standards B 800, B 801

• Federal Specification J–C-30B

• Sunlight resistant

Allowable Ampacity for 8 AWG XHHW-2 Aluminum Cable 600V at 75°C: 40 Amps

Allowable Ampacity for 8 AWG XHHW-2 Aluminum Cable 600V at 90°C: 45 Amps

Specifications

• Size AWG: 8

• Stranding: 7

• Conductor Diameter Inches: 0.134

• Insulation Thickness Inches: 0.045

• O.D. Inches: 0.224

• New Weight lb/1000FT: 27 lbs

• Ampacity at 75°C: 40 Amps

• Ampacity at 90°C: 45 Amps
