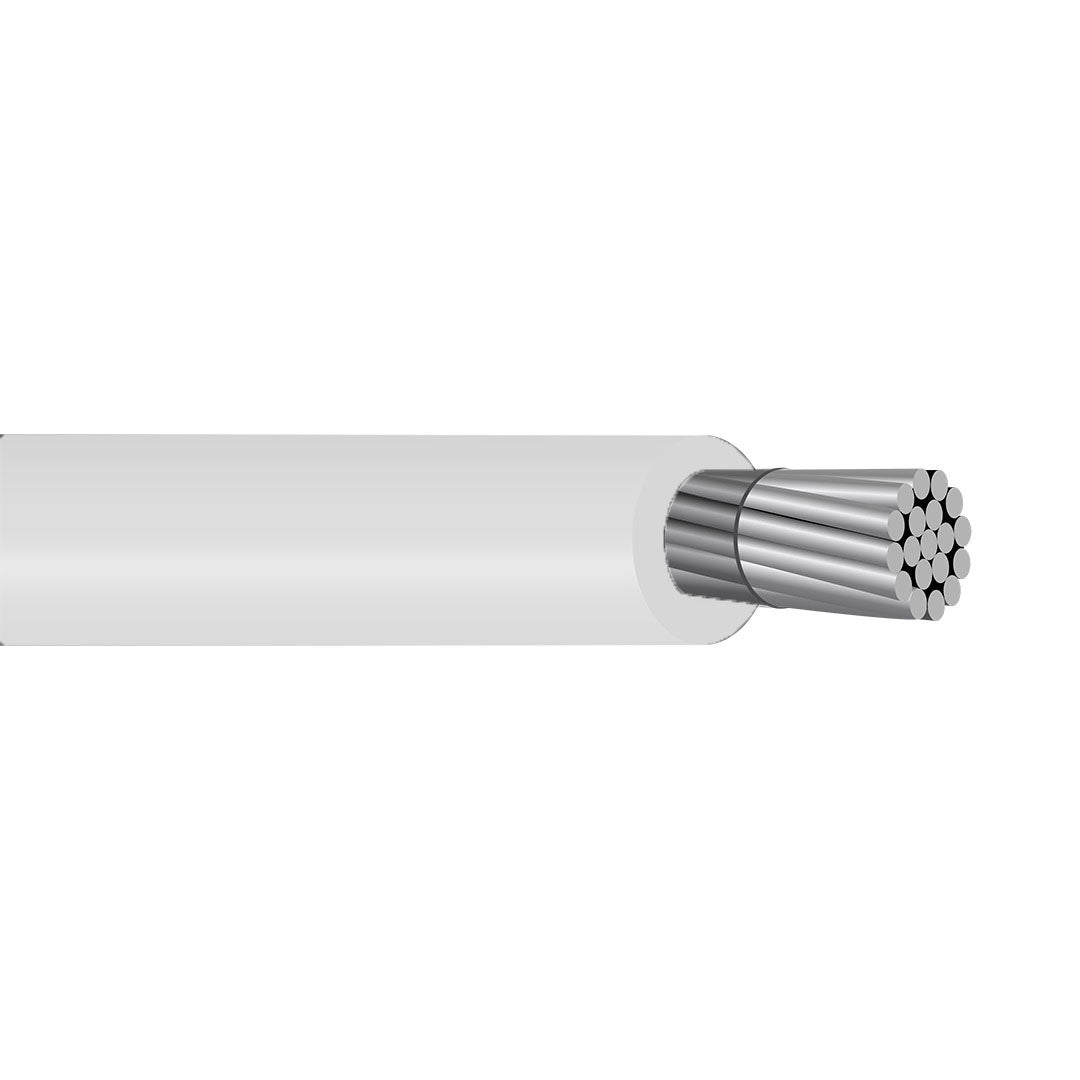

4 AWG XHHW-2 Aluminum Cable 600V

4 AWG XHHW-2 Aluminum Cable 600V

SKU: NES1742X   Download PDF

Color
Select a gauge:
  • 4 AWG XHHW-2 Aluminum Cable 600V
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $0.57 /FT   Web pricing policy
BEFORE   Now $0.57 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details

Get Extra Discount On Standard reels
Product Information Resources Applications Features Specifications Reviews
Product Information

Also Known As:

4 awg wire, 4 awg aluminum wire, #4 aluminum wire, 4 xhhw-2 cable, 4 hxxw-2 cable, 4 rw90 cable, 4 rw90 wire, 4 type se cable style u type xhhw-2, 4 xhhw-2, 4 southwire xhhw-2, 4 xhhw-2 insulation, 4 gauge aluminum wire.

Conductors:

XHHW-2 conductor is a soft drawn bare 8000 series aluminum, with Class B stranding per ASTM. Stranded conductors reduce power loss and are also easier to use in applications where flexibility is vital.

Insulation:

XHHW-2 has abrasion, heat, and moisture resistant cross-linked polyethylene insulation. Cross linking a polyethylene helps to achieve an excellent strength that makes the material suitable for covering this cable used in harsh conditions.

Compatible with Manufacturer

Houston item : Black : HW002A00401
Black : 4-01XHHWBLACKAL
Priority Wire & Cable : Black : 4-01XHHW-2-ALUM
Omni Cable item : Black : M804ST-01
Blue : M804ST-05
Green : M804ST-04
Orange : M804ST-07
Red : M804ST-03
White : M804ST-02
Yellow : M804ST-08
Brown : M804ST-010
Gray : M804ST-06
Southwire : Black : 11271401
Blue : 59111599
Green : 58532099
Orange : 59120299
Red : 59111499
White : 59111699
Yellow :59120399
Brown : 59120199
Gray : 59805199




Resources
Applications
These electrical wires, also known as XHHW-2 cables, are primarily used for power distribution, in both wet and dry places, with ambient temperatures not exceeding 90°C. Voltage rating for this electrical wire, XHHW-2 cable, is 600V. The 4 awg ampacity is 65 Amps at 75°C.

The particular applications of XHHW cable in size 4 AWG are:

• General Building Wiring
• Service Entrance
• Conduit Systems
• Wet or Dry Locations
• High Ambient Temperature Locations
• Switchboards and Panelboards
• Appliances and Motors
• Renewable Energy Systems
Features
Standards:

• XHHW-2 meet or exceed the following standards

• UL standard 44

• Requirements of the National Electrical Code.

• ASTM standards B 800, B 801

• Federal Specification J–C-30B

• Sunlight resistant

Allowable Ampacity for 4 AWG XHHW-2 Aluminum Cable 600V at 75°C: 65 Amps

Allowable Ampacity for 4 AWG XHHW-2 Aluminum Cable 600V at 90°C: 75 Amps
Specifications
• Size AWG: 4

• Stranding: 7

• Conductor Diameter Inches: 0.213

• Insulation Thickness Inches: 0.045

• O.D. Inches:  0.303

• New Weight lb/1000FT: 56 lbs

• Ampacity at 75°C: 65 Amps

• Ampacity at 90°C: 75 Amps
