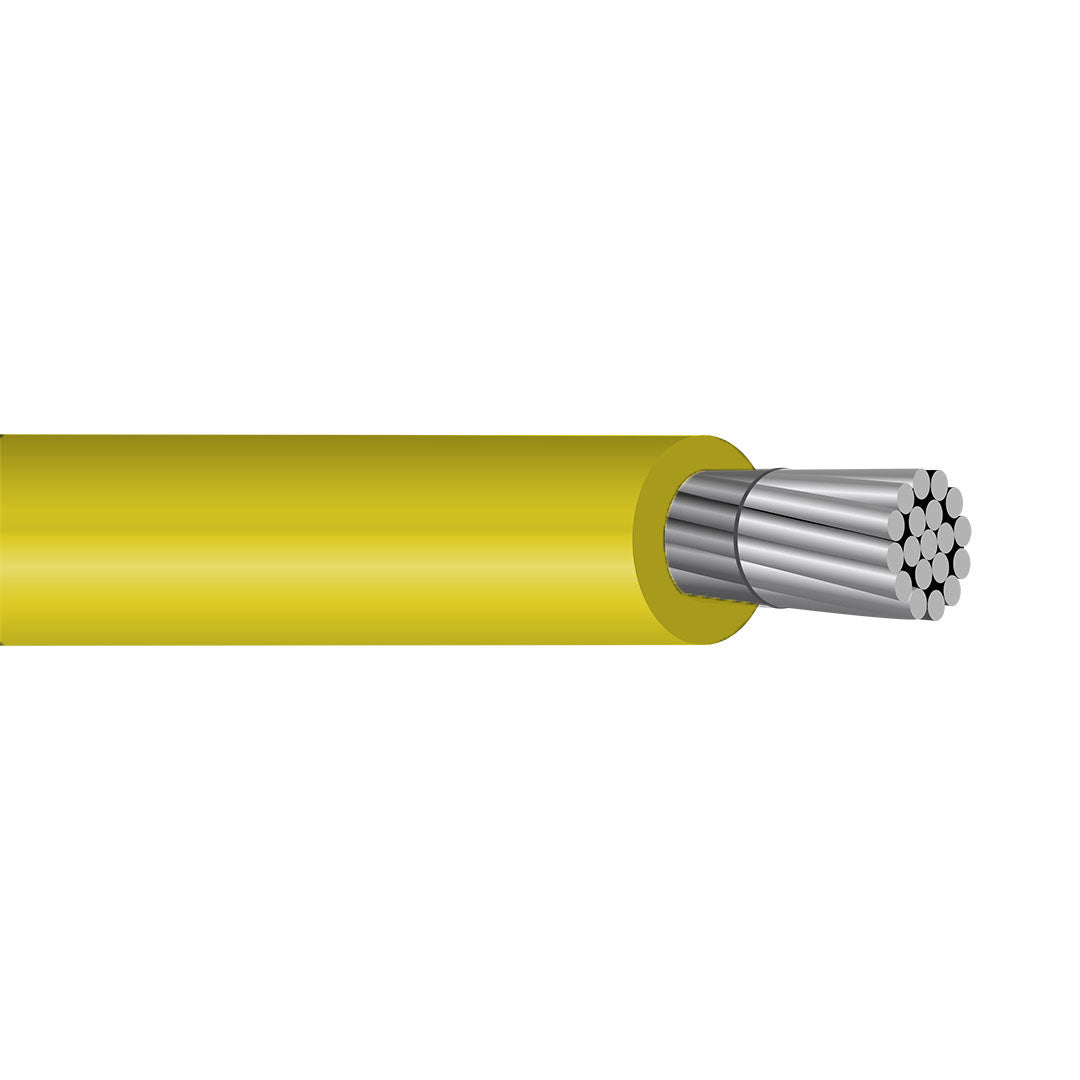

1 AWG XHHW-2 Aluminum Cable 600V

1 AWG XHHW-2 Aluminum Cable 600V

SKU: NES1760X   Download PDF

Color
Select a gauge:
  • 1 AWG XHHW-2 Aluminum Cable 600V
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $0.82 /FT   Web pricing policy
BEFORE   Now $0.82 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details

Get Extra Discount On Standard reels

250' 1 AWG XHHW-2 Aluminum Cable 600V
$205.00
500' 1 AWG XHHW-2 Aluminum Cable 600V
$395.00
1000' 1 AWG XHHW-2 Aluminum Cable 600V
$730.00
Product Information Resources Applications Features Specifications Reviews
Product Information

Also Known As:

1 xhhw-2 cable, 1 hxxw-2 cable, 1 rw90 cable, 1 rw90 wire, 1 type se cable style u type xhhw-2, 1 xhhw-2, 1 southwire xhhw-2, 1 xhhw-2 insulation, #1 xhhw-2 aluminum wire, xhhw-2 2 general cable.

Conductors:

XHHW-2 conductor is a soft drawn bare 8000 series aluminum, with Class B stranding per ASTM. Stranded conductors reduce power loss and are also easier to use in applications where flexibility is vital.

Insulation:

XHHW-2 has abrasion, heat, and moisture resistant cross-linked polyethylene insulation. Cross linking a polyethylene helps to achieve an excellent strength that makes the material suitable for covering this cable used in harsh conditions.

Compatible with Manufacturer

Houston item : Black : HW002A00101
Black : 1-01XHHWBLACKAL
Priority Wire & Cable : Black : 1-01XHHW-2-ALUM
Omni Cable item : Black : M801ST-01
Blue : M801ST-05
Green : M801ST-04
Orange : M801ST-07
Red : M801ST-03
White : M801ST-02
Yellow : M801ST-08
Brown : M801ST-010
Gray : M801ST-06
Southwire : Black : 11273001
Blue : 59120599
Green : 58531899
Orange : 59120899
Red : 59120499
White : 59120699
Yellow : 59121699
Brown : 59120799
Gray : 59649799




Resources
Applications
These electrical wires, also known as XHHW-2 cables, are primarily used for power distribution, in both wet and dry places, with ambient temperatures not exceeding 90°C. Voltage rating for this electrical wire, XHHW-2 cable, is 600V.

1 AWG XHHW aluminum cable is used for:

• Service entrance
• Feeder circuits
• Sub-panel distribution
• Large appliances & equipment
• Conduit systems
• Motors and industrial equipment
• Renewable energy installations
Features
Standards:

• XHHW-2 meet or exceed the following standards

• UL standard 44

• Requirements of the National Electrical Code.

• ASTM standards B 800, B 801

• Federal Specification J–C-30B

• Sunlight resistant

Allowable Ampacity for 1 AWG XHHW-2 Aluminum Cable 600V at 75°C: 100 Amps

Allowable Ampacity for 1 AWG XHHW-2 Aluminum Cable 600V at 90°C: 115 Amps
Specifications
• Size AWG: 1

• Stranding: 18

• Conductor Diameter Inches: 0.299

• Insulation Thickness Inches: 0.055

• O.D. Inches:  0.409

• New Weight lb/1000FT: 106 lbs

• Ampacity at 75°C: 100 Amps

• Ampacity at 90°C: 115 Amps
