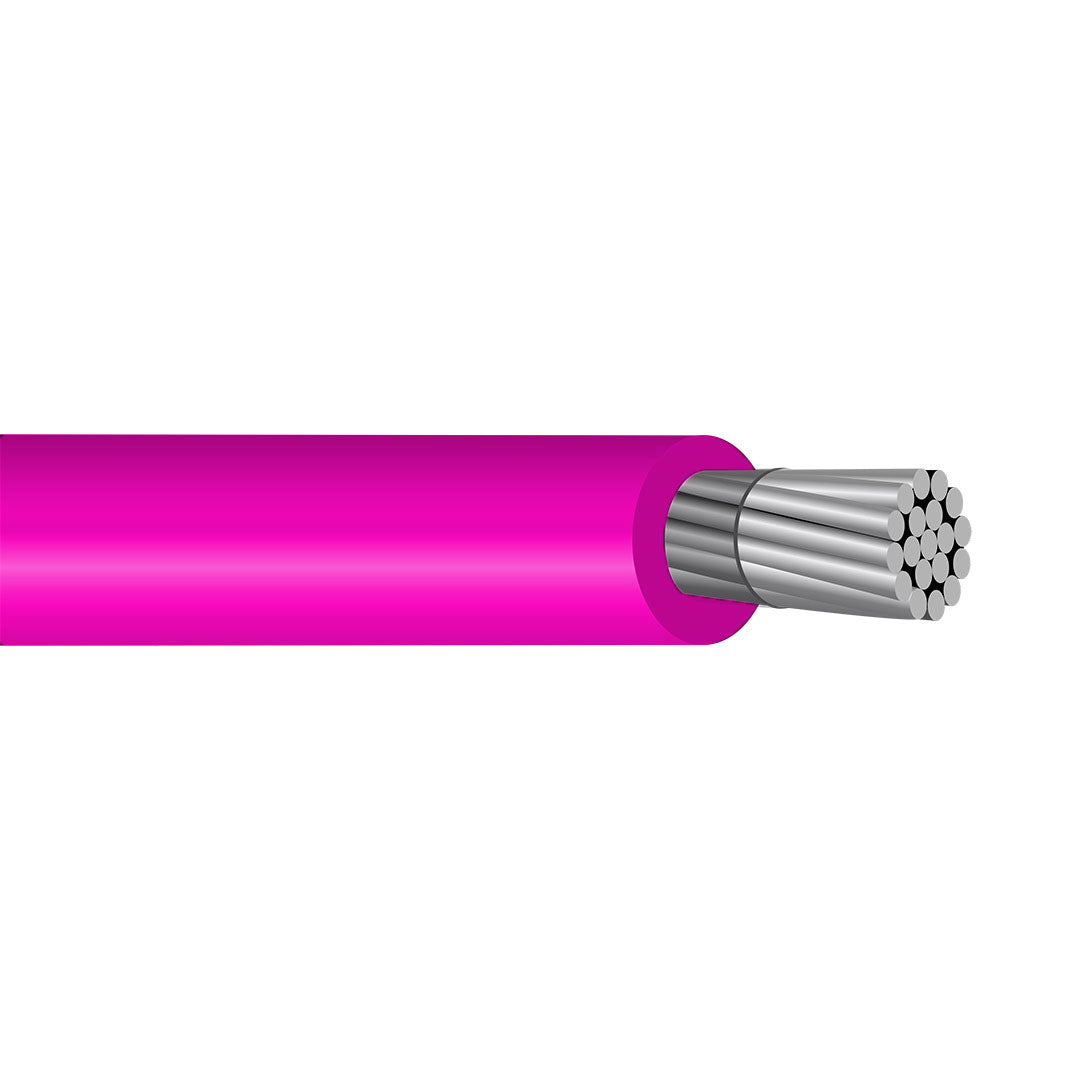

500' 3/0 AWG XHHW-2 Aluminum Cable 600V

500' 3/0 AWG XHHW-2 Aluminum Cable 600V

SKU: NES1787X-18   Download PDF

Color
Select a Variant:
  • 500' 3/0 AWG XHHW-2 Aluminum Cable 600V
Qty:
Now $635.00   Web pricing policy
BEFORE   Now $635.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details

Choose your required cuts from here

3/0 AWG XHHW-2 Aluminum Cable 600V
$1.32
Product Information Resources Applications Features Specifications Reviews
Product Information

Also Known As:

3/0 xhhw-2 cable, 3/0 hxxw-2 cable, 3/0 rw90 cable, 3/0 rw90 wire, 3/0 type se cable style u type xhhw-2, 3/0 xhhw-2, 3/0 southwire xhhw-2, 3/0 xhhw-2 insulation.

Conductors:

XHHW-2 conductor is a soft drawn bare 8000 series aluminum, with Class B stranding per ASTM. Stranded conductors reduce power loss and are also easier to use in applications where flexibility is vital.

Insulation:

XHHW-2 has abrasion, heat, and moisture resistant cross-linked polyethylene insulation. Cross linking a polyethylene helps to achieve an excellent strength that makes the material suitable for covering this cable used in harsh conditions.

Compatible with Manufacturer

Houston item : Black : HW002A30101
Black : 3/0-01XHHWBLACKAL
Priority Wire & Cable : Black : 3/0-01XHHW-2-ALUM
Omni Cable item : Black : M83/0ST-01
Blue : M83/0ST-05
Green : M83/0ST-04
Orange : M83/0ST-07
Red : M83/0ST-03
White : M83/0ST-02
Yellow : M83/0ST-08
Brown : M83/0ST-010
Gray : M83/0ST-06
Southwire : Black : 11276301
Blue : 58530399
Green : 58530199
Orange : 58530699
Red : 58530299
White : 58530499
Yellow : 58530899
Brown : 58530599
Gray : 58530999




Resources
Applications
These electrical wires, also known as XHHW-2 cables, are primarily used for power distribution, in both wet and dry places, with ambient temperatures not exceeding 90°C. Voltage rating for this electrical wire, XHHW-2 cable, is 600V.
Features
Standards:

• XHHW-2 meet or exceed the following standards

• UL standard 44

• Requirements of the National Electrical Code.

• ASTM standards B 800, B 801

• Federal Specification J–C-30B

• Sunlight resistant

Allowable Ampacity for 3/0 AWG XHHW-2 Aluminum Cable 600V at 75°C: 155 Amps

Allowable Ampacity for 3/0 AWG XHHW-2 Aluminum Cable 600V at 90°C: 175 Amps
Specifications
• Size AWG: 3/0

• Stranding: 18

• Conductor Diameter Inches: 0.423

• Insulation Thickness Inches: 0.055

• O.D. Inches: 0.533

• New Weight lb/1000FT: 195 lbs

• Ampacity at 75°C: 155 Amps

• Ampacity at 90°C: 175 Amps
