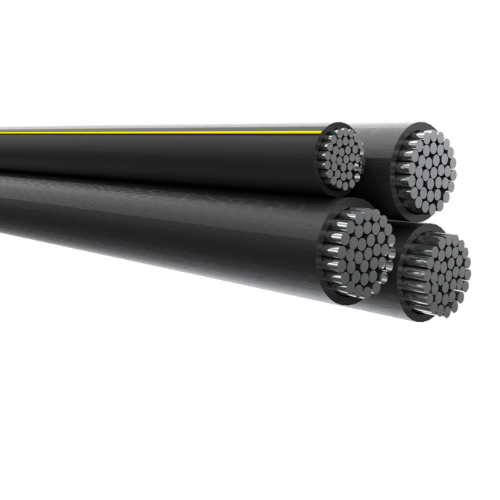

500-500-500-350 Wofford Quadruplex Aluminum Conductor Underground Direct Burial 600V URD

Allowable Ampacity for 500-500-500-350 Wofford Quadruplex Aluminum Conductor 600V URD direct burial: 467 Amps

Allowable Ampacity for 500-500-500-350 Wofford Quadruplex Aluminum Conductor 600V URD in duct: 420 Amps

Also Known As:

500-500-500-350 wofford aluminum urd cable, 500-500-500-350 wofford urd direct burial cable, 500-500-500-350 wofford quadruplex cable, 500-500-500-350 wofford quadruplex wire, 500-500-500-350 wofford four conductor wire, 500-500-500-350 wofford four conductor cable, 500-500-500-350 wofford direct burial electrical cable, 500-500-500-350 wofford direct burial power cable, 500-500-500-350 wofford aluminum direct burial cable.

Conductors:

Aluminum conductor used for this cable is either a concentric strand or compressed 1350-H19 series aluminum conductor. The conductors are cabled together, with surface printing for identification. The neutral conductor has a yellow stripe.

Insulation:

Versatile insulation system made of cross linked black polyethylene material helps to secure the cable conductors. This insulation is water tight, repulsive to corrosive substances, resistant to oil, heat and flame. Cross linking a polyethylene helps to achieve an excellent strength that makes the material suitable for covering this cable used in harsh conditions like direct burial installation.
