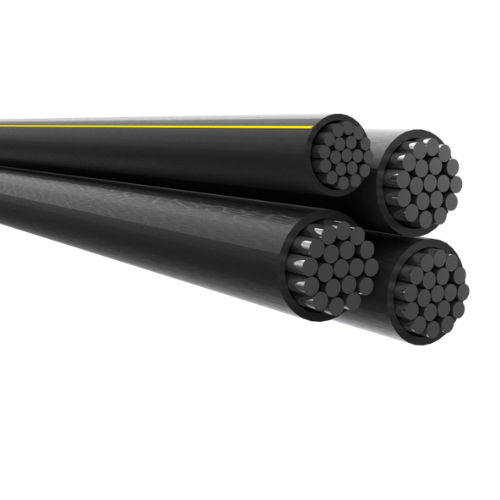

1000' 2/0-2/0-2/0-1 Syracuse Quadruplex Aluminum Conductor Underground Direct Burial 600V URD

SKU: SKU: NES1931X1000 Download PDF

Select a Variant:

1000' 2/0-2/0-2/0-1 Syracuse Quadruplex Aluminum Conductor Underground Direct Burial 600V URD

SET THE QTY:

Now $3,280.00 Web pricing policy

~~BEFORE~~ Now $3,280.00 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Applications Features Specifications Reviews

Product Information

2/0-2/0-2/0-1 Syracuse Quadruplex Aluminum Conductor Underground Direct Burial 600V URD

Allowable Ampacity for 2/0-2/0-2/0-1 Syracuse Quadruplex Aluminum Conductor 600V URD direct burial: 225 Amps

Allowable Ampacity for 2/0-2/0-2/0-1 Syracuse Quadruplex Aluminum Conductor 600V URD in duct: 170 Amps

Also Known As:

2/0-2/0-2/0-1 syracuse aluminum urd cable, 2/0-2/0-2/0-1 syracuse urd direct burial cable, 2/0-2/0-2/0-1 syracuse quadruplex cable, 2/0-2/0-2/0-1 syracuse quadruplex wire, 2/0-2/0-2/0-1 syracuse four conductor wire, 2/0-2/0-2/0-1 syracuse four conductor cable, 2/0-2/0-2/0-1 syracuse direct burial electrical cable, 2/0-2/0-2/0-1 syracuse direct burial power cable, 2/0-2/0-2/0-1 syracuse aluminum direct burial cable, underground cable

Conductors:

Aluminum conductor used for this cable is either a concentric strand or compressed 1350-H19 series aluminum conductor. The conductors are cabled together, with surface printing for identification. The neutral conductor has a yellow stripe.

Insulation:

Versatile insulation system made of cross linked black polyethylene material helps to secure the cable conductors. This insulation is water tight, repulsive to corrosive substances, resistant to oil, heat and flame. Cross linking a polyethylene helps to achieve an excellent strength that makes the material suitable for covering this cable used in harsh conditions like direct burial installation.

Resources

Applications

The aluminum 600V URD is designed to serve in the secondary distribution circuits for power. In these secondary circuits, the electrical cable is installed in duct or direct burial applications. Due to its versatility, conductor strength, and insulation integrity, it works well for these outdoor applications. It is also used in wet and dry places since the cable has a maximum operating temperature of 90°C. The electrical cable is also designed to provide an option of pre-pulling into ducts.

Features

Standards:

• ASTM B-230
• ASTM B-231
• ASTM B-609
• ASTM B-901
• ICEA S-105-692
• Federal Specification J-C – 30B
• RUS ACCEPTED

Specifications

• Size AWG: 2/0
• Stranding: 19
• Insulation Thickness (mils): 80
• Neutral Size AWG: 1
• Single Phase Conductor Inches: 0.555
• O.D. Inches:  1.340
• Weight lbs./1000ft: 664 lbs
• Ampacity: Direct burial: 225 Amps
• Ampacity: In duct: 170 Amps
