2/0-2/0-2/0-2/0 Lafayette Quadruplex Aluminum Conductor Underground Direct Burial 600V URD

2/0-2/0-2/0-2/0 Lafayette Quadruplex Aluminum Conductor Underground Direct Burial 600V URD

SKU: NES1666X06   Download PDF

Select a gauge:
  • 2/0-2/0-2/0-2/0 Lafayette Quadruplex Aluminum Conductor Underground Direct Burial 600V URD
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $4.21 /FT   Web pricing policy
BEFORE   Now $4.21 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Applications Features Specifications Reviews
Product Information

2/0-2/0-2/0-2/0 Lafayette Quadruplex Aluminum Conductor Underground Direct Burial 600V URD

Allowable Ampacity for 2/0-2/0-2/0-2/0 Lafayette Quadruplex Aluminum Conductor Underground Direct Burial 600V URD: 120 Amps

Allowable Ampacity for 2/0-2/0-2/0-2/0 Lafayette Quadruplex Aluminum Conductor Underground Direct Burial 600V URD in duct: 85 Amps

Also Known As:

2/0-2/0-2/0-2/0 Lafayette aluminum urd cable, 2/0-2/0-2/0-2/0 Lafayette urd direct burial cable, 2/0-2/0-2/0-2/0 Lafayette quadruplex cable, 2/0-2/0-2/0-2/0 Lafayette quadruplex wire, 2/0-2/0-2/0-2/0 Lafayette four conductor wire, 2/0-2/0-2/0-2/0 Lafayette four conductor cable, 2/0-2/0-2/0-2/0 Lafayette direct burial electrical cable, 2/0-2/0-2/0-2/0 Lafayette direct burial power cable, 2/0-2/0-2/0-2/0 Lafayette aluminum direct burial cable.

Conductors:

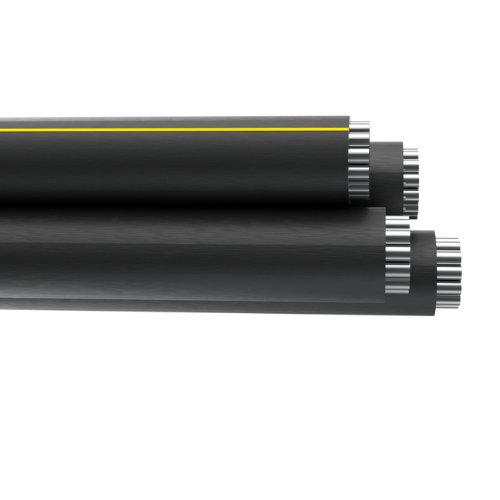

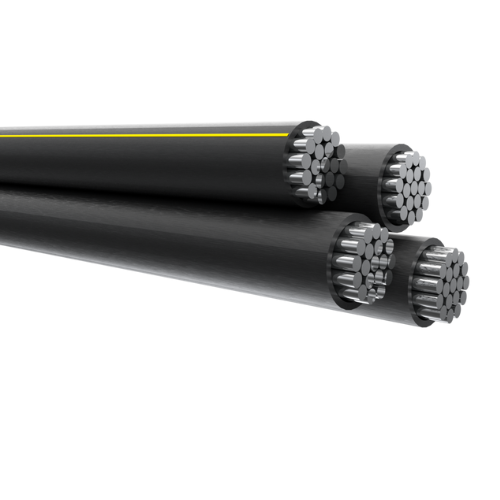

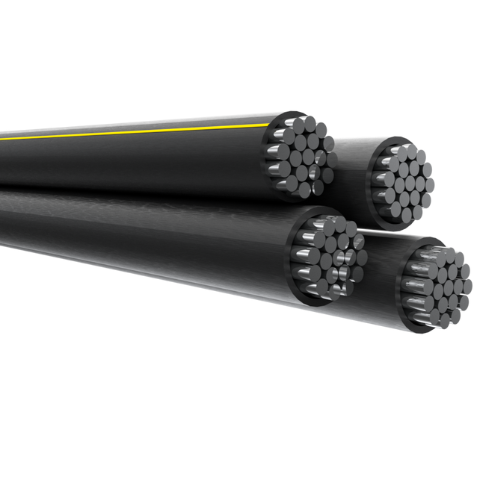

Aluminum conductor used for this cable is either a concentric strand or compressed 1350-H19 series aluminum conductor. The conductors are cabled together, with surface printing for identification. The neutral conductor has a yellow stripe.

Insulation:

Versatile insulation system made of cross linked black polyethylene material helps to secure the cable conductors. This insulation is water tight, repulsive to corrosive substances, resistant to oil, heat and flame. Cross linking a polyethylene helps to achieve an excellent strength that makes the material suitable for covering this cable used in harsh conditions like direct burial installation.

Resources



Applications
The aluminum 600V URD is designed to serve in the secondary distribution circuits for power. In these secondary circuits, the electrical cable is installed in duct or direct burial applications. Due to its versatility, conductor strength, and insulation integrity, it works well for these outdoor applications. It is also used in wet and dry places since the cable has a maximum operating temperature of 90°C. The electrical cable is also designed to provide an option of pre-pulling into ducts.
Features
Standards:

• ASTM B-230
• ASTM B-231
• ASTM B-609
• ASTM B-901
• ICEA S-105-692
• Federal Specification J-C – 30B
• RUS ACCEPTED
Specifications
• Phase Conductor-Size: 2/0 AWG
• Conductor Strand: 19
• Neutral Conductor-Size: 2/0 AWG
• Conductor Strand: 19
• Insulation Thickness: 0.080 inches
• Outside Diameter: 1.34 inches
• Allowable Ampacity-Direct Burial: 225 Amps
• Allowable Ampacity-In Duct: 170 Amps
• Weight: 0.745 lbs per ft
