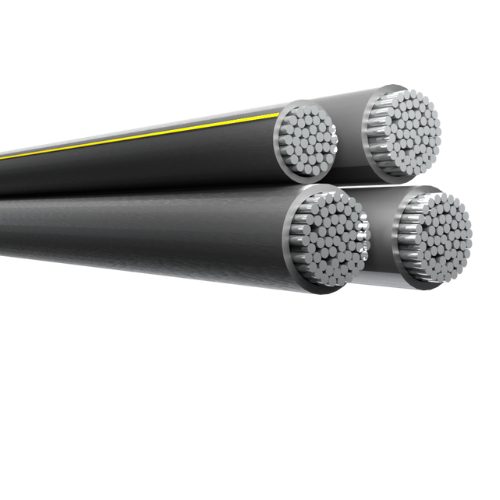

750-750-750-500 Windham Quadruplex Aluminum Conductor Underground Direct Burial 600V URD

750-750-750-500 Windham Quadruplex Aluminum Conductor Underground Direct Burial 600V URD

SKU: NES1938X   Download PDF

Select a gauge:
  • 750-750-750-500 Windham Quadruplex Aluminum Conductor Underground Direct Burial 600V URD
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $16.88 /FT   Web pricing policy
BEFORE   Now $16.88 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Applications Features Specifications Reviews
Product Information

750-750-750-500 Windham Quadruplex Aluminum Conductor Underground Direct Burial 600V URD

Allowable Ampacity for 750-750-750-500 Windham Quadruplex Aluminum Conductor 600V URD direct burial: 615 Amps

Allowable Ampacity for 750-750-750-500 Windham Quadruplex Aluminum Conductor 600V URD in duct: 492 Amps

Also Known As:

750-750-750-500 windham aluminum urd cable, 750-750-750-500 windham urd direct burial cable, 750-750-750-500 windham quadruplex cable, 750-750-750-500 windham quadruplex wire, 750-750-750-500 windham four conductor wire, 750-750-750-500 windham four conductor cable, 750-750-750-500 windham direct burial electrical cable, 750-750-750-500 windham direct burial power cable, 750-750-750-500 windham aluminum direct burial cable.

Conductors:

Aluminum conductor used for this cable is either a concentric strand or compressed 1350-H19 series aluminum conductor. The conductors are cabled together, with surface printing for identification. The neutral conductor has a yellow stripe.

Insulation:

Versatile insulation system made of cross linked black polyethylene material helps to secure the cable conductors. This insulation is water tight, repulsive to corrosive substances, resistant to oil, heat and flame. Cross linking a polyethylene helps to achieve an excellent strength that makes the material suitable for covering this cable used in harsh conditions like direct burial installation.

Resources



Applications
The aluminum 600V URD is designed to serve in the secondary distribution circuits for power. In these secondary circuits, the electrical cable is installed in duct or direct burial applications. Due to its versatility, conductor strength, and insulation integrity, it works well for these outdoor applications. It is also used in wet and dry places since the cable has a maximum operating temperature of 90°C. The electrical cable is also designed to provide an option of pre-pulling into ducts.
Features
Standards:

• ASTM B-230
• ASTM B-231
• ASTM B-609
• ASTM B-901
• ICEA S-105-692
• Federal Specification J-C – 30B
• RUS ACCEPTED
Specifications
• Size AWG: 750
• Stranding: 61
• Insulation Thickness (mils): 110
• Neutral Size AWG: 500
• Single Phase Conductor Inches: 1200
• O.D. Inches: 2.890
• Weight lbs./1000ft: 3266 lbs
• Ampacity: Direct burial: 615 Amps

Ampacity: In duct: 492 Amps
