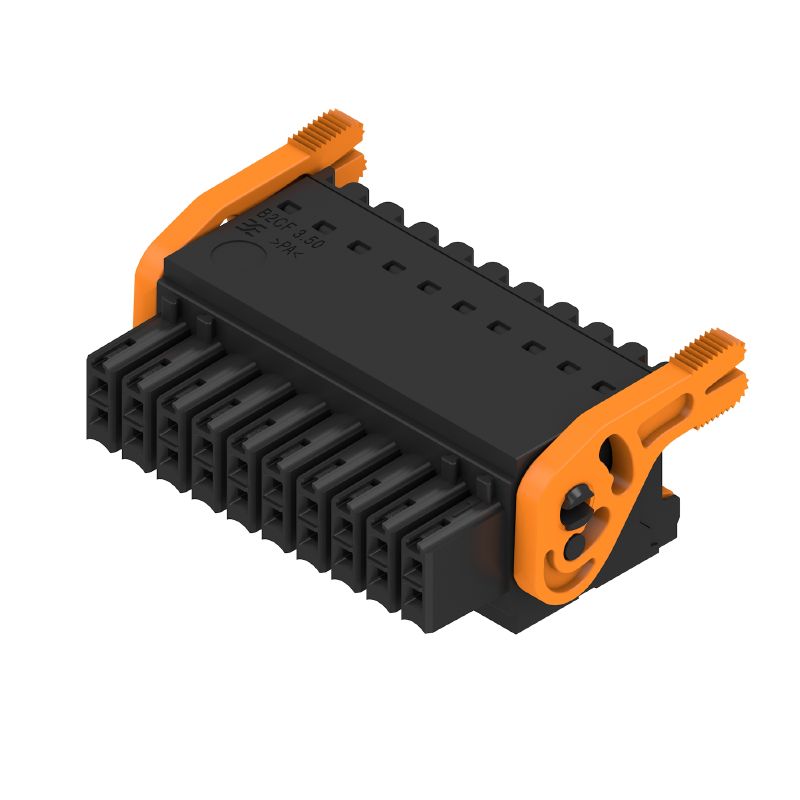

2711210000 - 3.50mm 20-Pole Female PCB Connector with 180° Angle (Pack of 42)

2711210000 - 3.50mm 20-Pole Female PCB Connector with 180° Angle (Pack of 42)

SKU: SKU: 2711210000   Download PDF

Select a Variant:
  • 2711210000 - 3.50mm 20-Pole Female PCB Connector with 180° Angle (Pack of 42)
Qty:
Regular price Now $546.13   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $546.13 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing a versatile female plug PCB connector, featuring a 350 mm pitch with 20 poles and designed for a 180° angle connection This connector employs a user-friendly PUSH IN mechanism with an actuator, compatible with wire sizes from 014 to 15 mm² It comes securely packaged in a box and adheres to IEC and UL voltage standards, with a maximum clamping capability of 15 mm² Ideal for various applications, this connector ensures a reliable and efficient connection.

Features and Benefits:

    •RoHS compliant without exemptions.

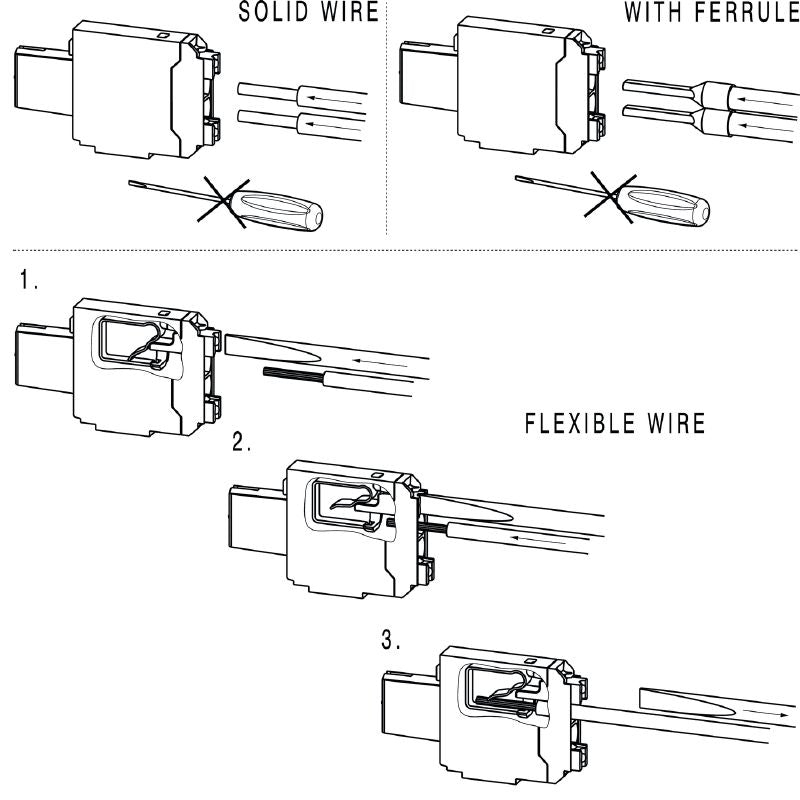

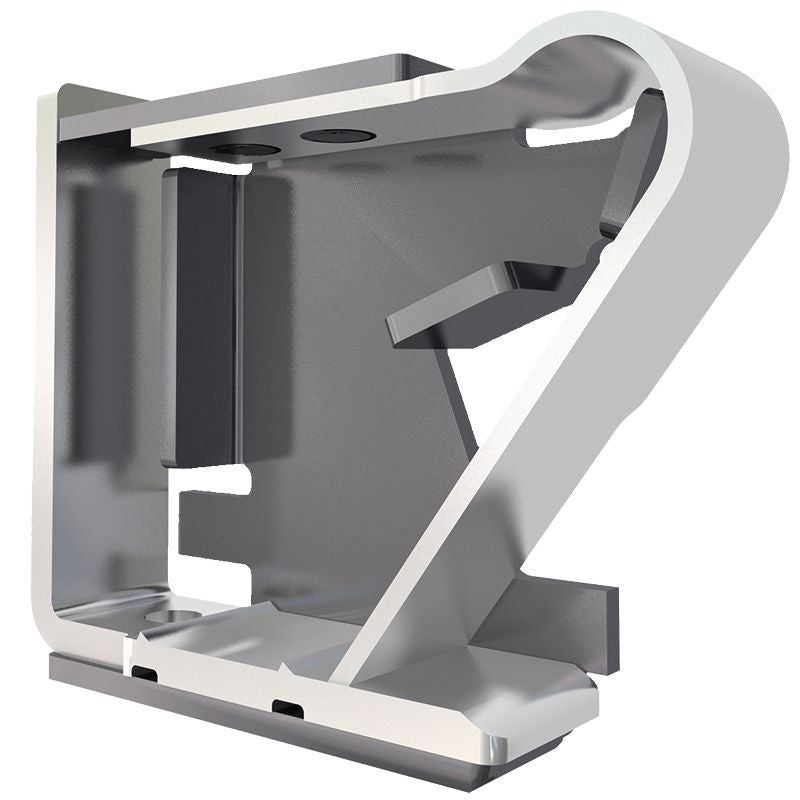

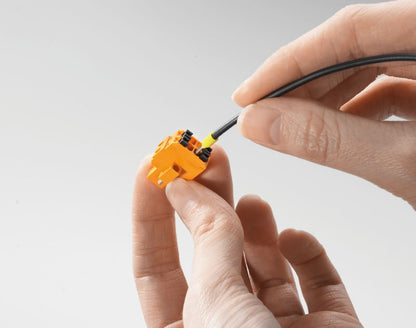

    •Easy to use PUSH IN wire connection method.

    •Touch-safe design according to DIN VDE standards.

    •Can be coded for secure connections.

    •Passes durability and misengagement tests.

Specifications:

 Rated Voltage (IEC) 320 V

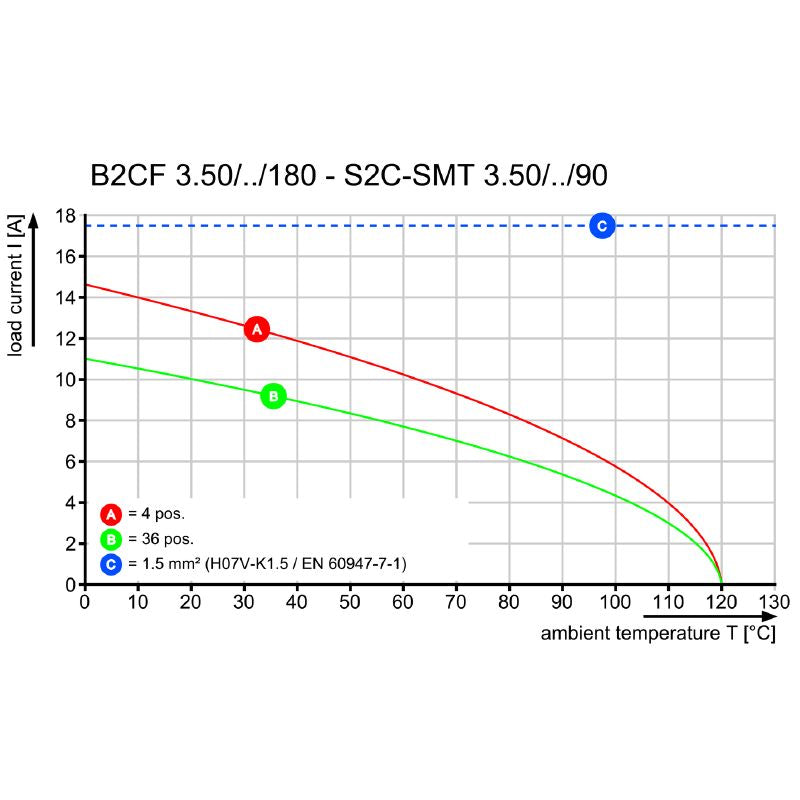

 Rated Current (IEC) 13.4 A
 Clamping range, max 1.5 mm²
 Pitch 3.5 mm
 Number of poles 20
 Storage Temperature (min) -40 °C
 Storage Temperature (max) 70 °C
 Operating Temperature (min) -50 °C
 Operating Temperature (max) 120 °C
 Insulation Resistance ≥ 10^8 Ω
 UL Flammability Rating V-0
 Protection Degree IP20
 Material PA 66 GF 30
 Plugging Cycles 25
 Screwdriver Blade Size 0.4 x 2.5
