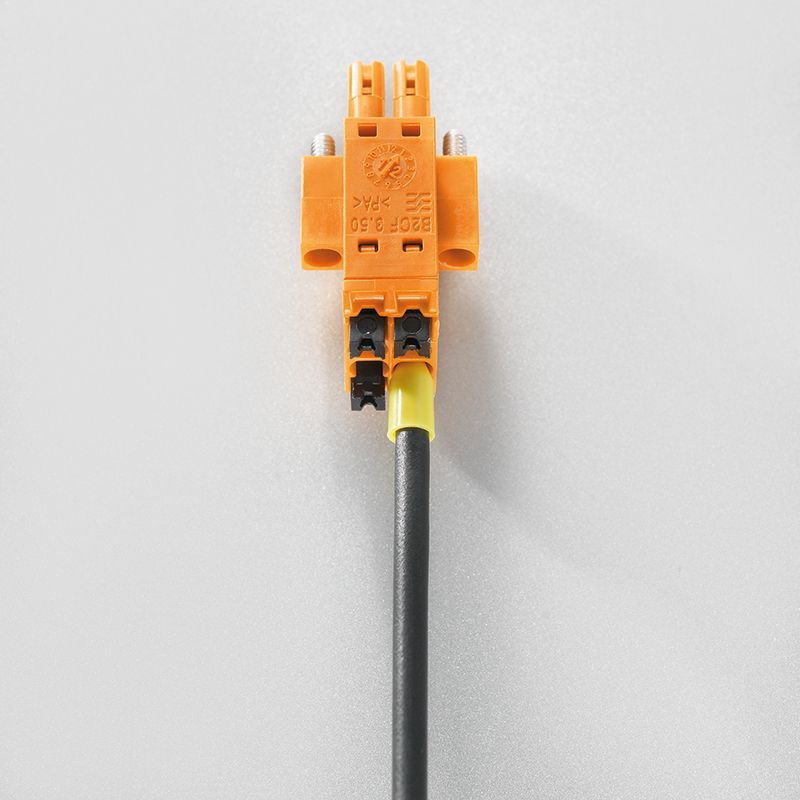

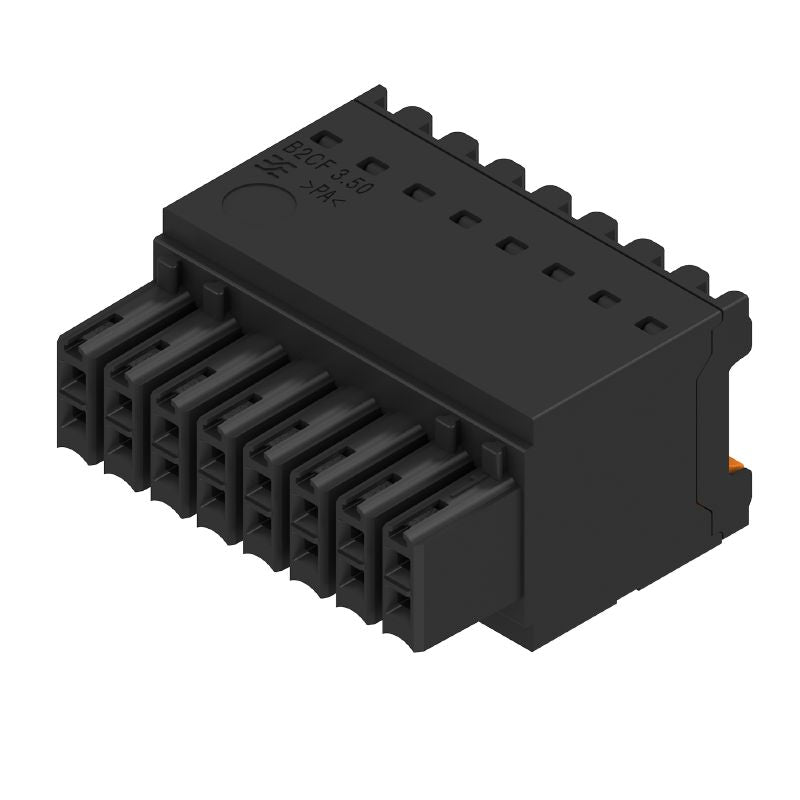

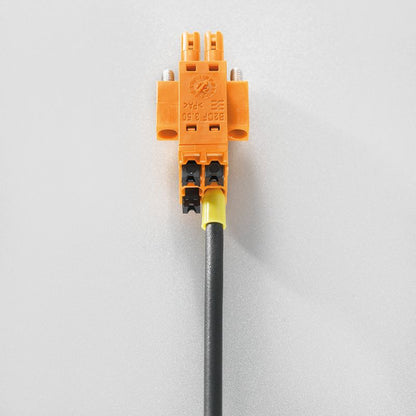

2848650000 - 3.50mm Pitch Female PCB Connector with 16 Poles (Pack of 66)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

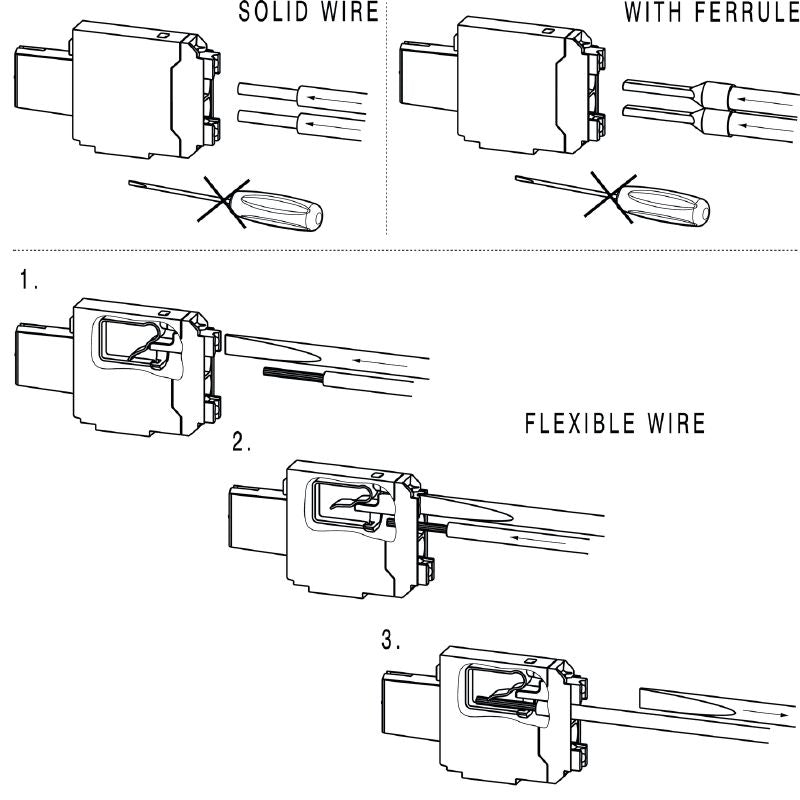

Introducing the B2CF 350/16/180 SN BK BX SO, a high-quality PCB plug-in connector crafted as a female plug with a precise 350 mm pitch This connector showcases 16 poles oriented at a 180° angle and utilizes a reliable PUSH IN connection system that includes a convenient push button Capable of accommodating conductors up to 15 mm², it offers a robust solution for your connectivity needs Please note that this product is only available until August 31, 2025, as it is no longer in production and comes packaged in a box for your convenience.

Features and Benefits:

•Suitable for field connection.

•Offers a touch-safe design as per DIN VDE regulations.

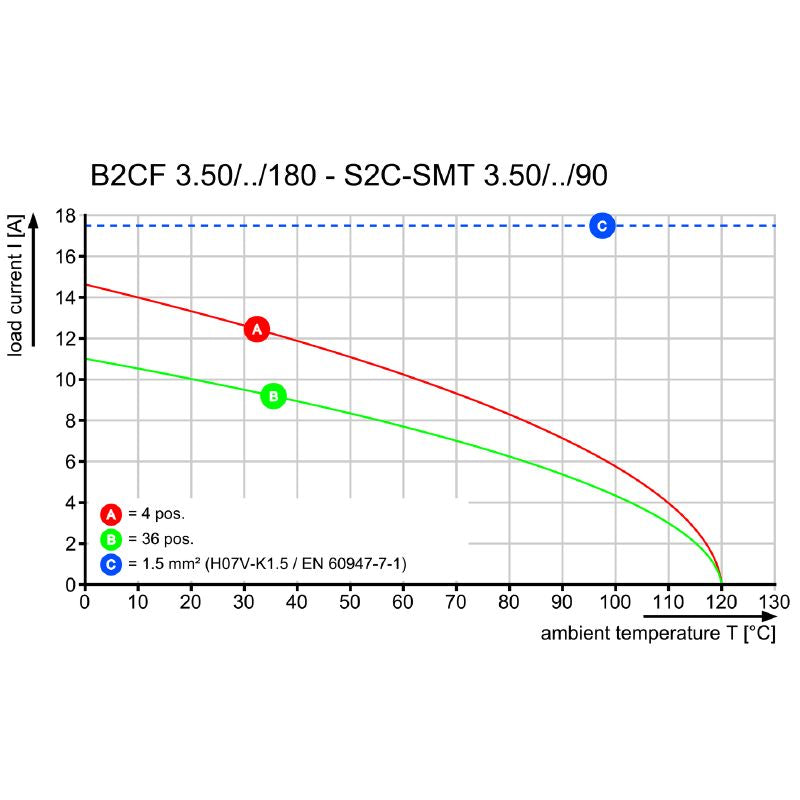

•Can handle a rated current of up to 13.4 A at 320 V.

•Includes robust insulation material and a flame class rated at V-0.

Specifications:
