2973090000 - 3.5mm Pitch PUSH IN Component for 10 Poles Connectivity (Pack of 102)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

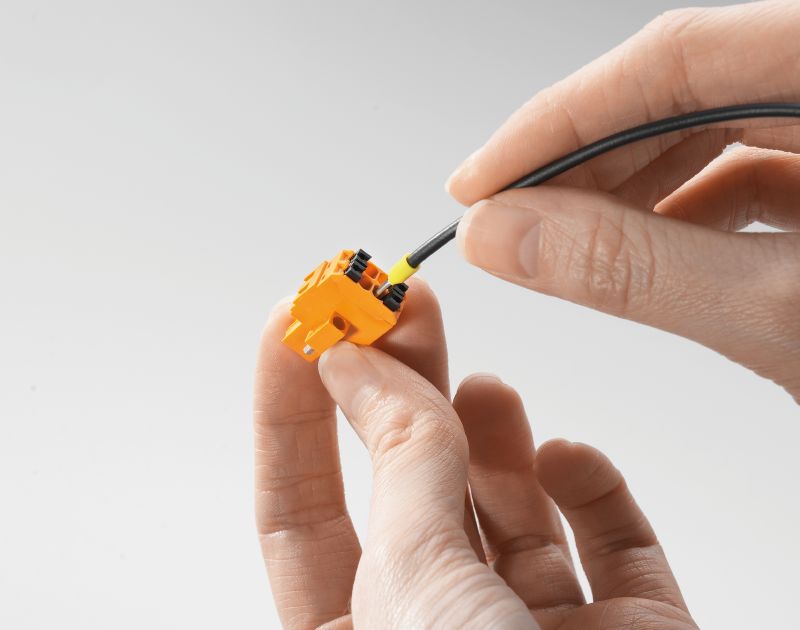

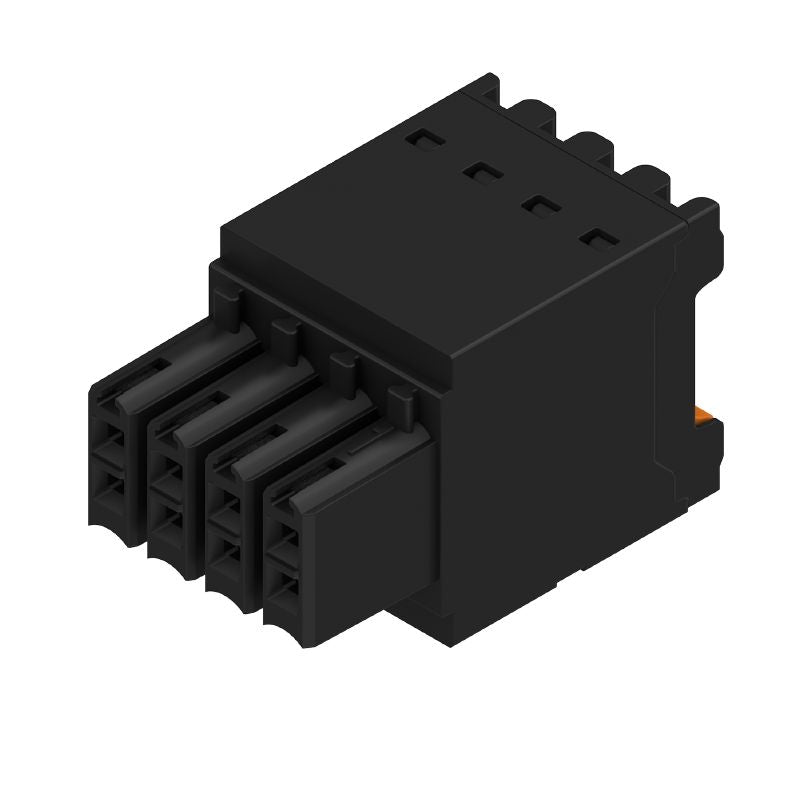

Introducing the B2CF 350/10/180 SN BK BX LRP, a reliable component engineered for field connection through an easy-to-use PUSH IN button mechanism With a compact pitch of 35 mm, this device can accommodate up to 10 poles and features a 180° conductor outlet for efficient wiring Ensuring user safety, it meets touch-safe standards, while supporting a rated cross-section of 15 mm² When installed, it boasts an IP20 rating, making it suitable for a variety of environments.

Additionally, it connects conductors with a clamping range from 014 mm² to 15 mm² and complies with RoHS regulations, with no SVHC materials exceeding 01 wt% This component is an exceptional choice for your electrical needs.

Features and Benefits:

•Lightweight at 6.59 g.

•Designed for safety with touch-safe protection.

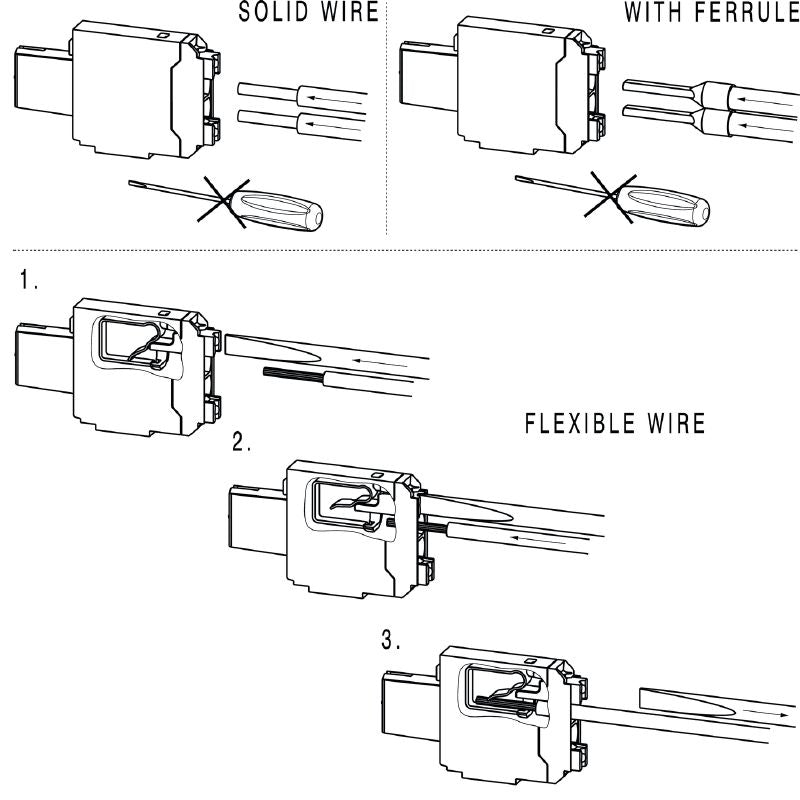

•Easy to connect with a push button mechanism.

•Operable in a wide temperature range from -50 °C to 120 °C.

•Multiple approvals including UL 1059 and CSA.

Specifications:
