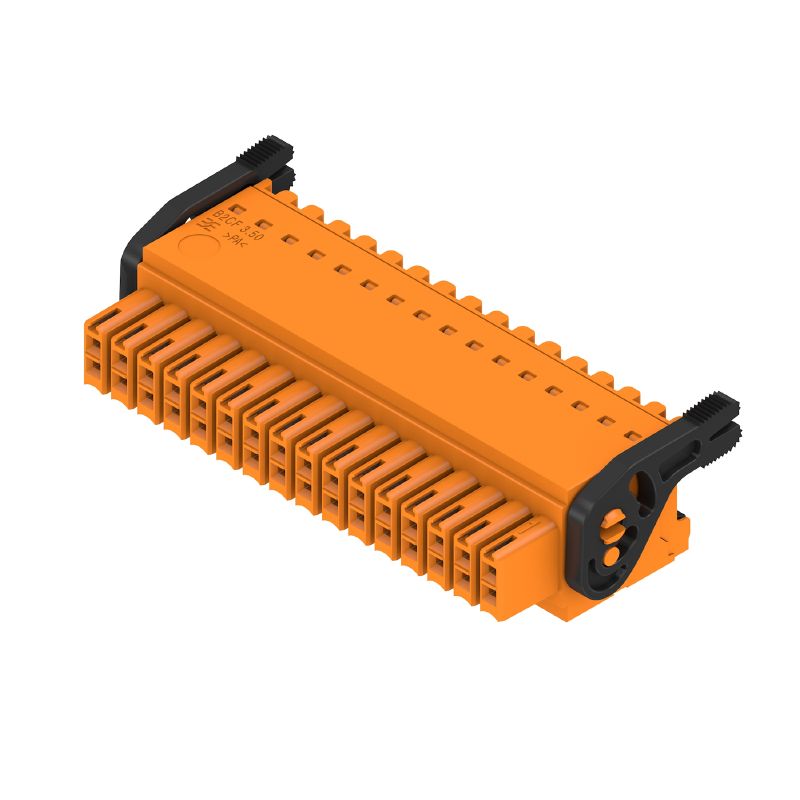

2984850000 - 3.50mm 32-Pole PCB Connector with 180° Angle and PUSH IN System (Pack of 24)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a versatile PCB plug-in connector designed for efficiency and reliability This female connector features a 350 mm pitch and an impressive arrangement of 32 poles at a 180° angle The innovative PUSH IN wire connection method, complemented by an actuator, allows for a maximum clamping range of 15 mm², ensuring a secure fit Packaged in a convenient box, this connector meets stringent IEC standards with a rated voltage of 320 V and a current of up to 13.

4 A It accommodates a wire connection range from 014 mm² to 15 mm² Additionally, it boasts UL ratings for 300 V and 95 A, making it compatible with wire sizes from AWG 30 to AWG 16 Ideal for a variety of electrical applications, this connector combines safety and performance seamlessly.

Features and Benefits:

•PUSH IN connection method with actuator.

•Conductor outlet direction is 180°.

•Can be coded for secure connectivity.

•Safe from finger touch with IP20 protection.

•Plugging cycles rated for 150 cycles.

Specifications:
