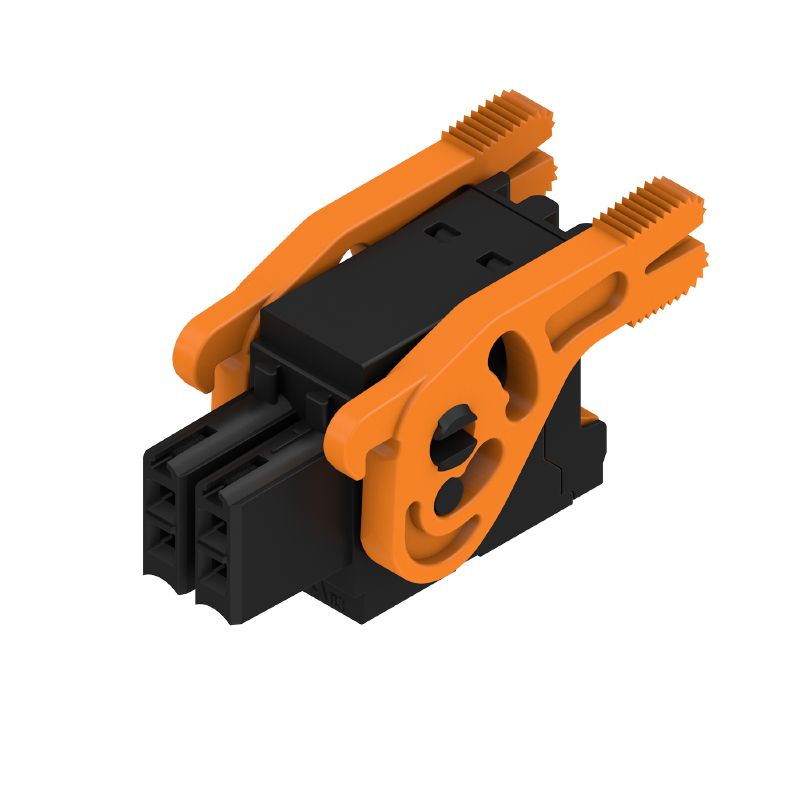

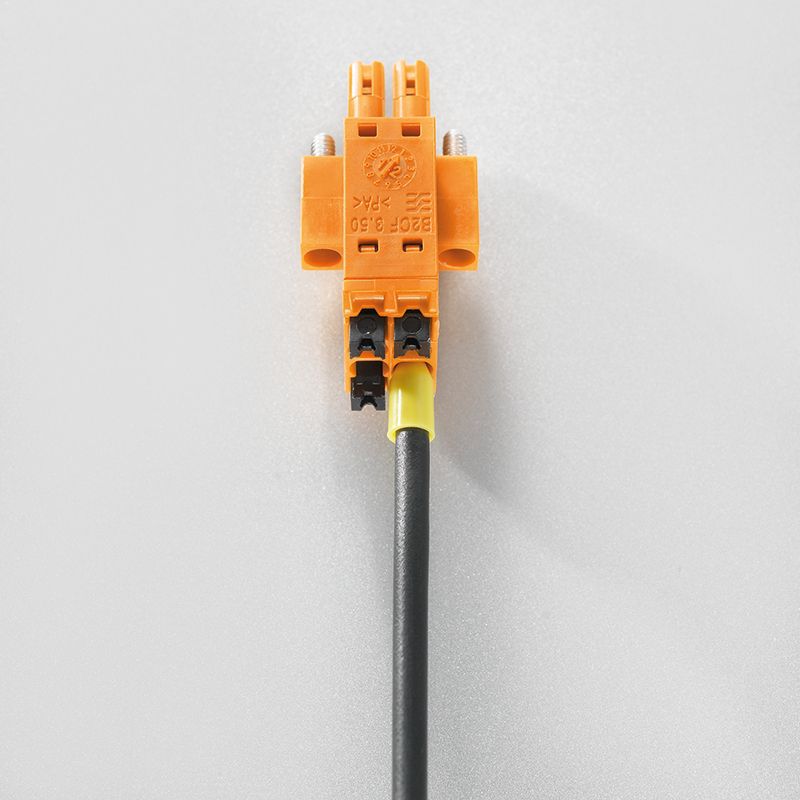

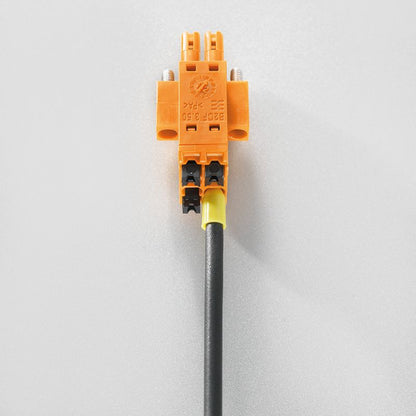

2711020000 - 3.50mm Female PCB Connector, 4 Poles, Push-In Mechanism (Pack of 105)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a reliable PCB plug-in connector that serves as a female plug with a 350 mm pitch This connector includes four poles and offers a 180° connection, enhanced by a PUSH IN mechanism complete with an actuator It supports a maximum clamping range for wires up to 15 mm², adhering to IEC standards with a voltage rating of 320 V at 134 A for wire sizes ranging from 014 to 15 mm² Made from durable PA 66 GF 30 insulating material, this connector is not only robust but also weighs a mere 3.

376 g Each unit arrives securely packed in a box.

Features and Benefits:

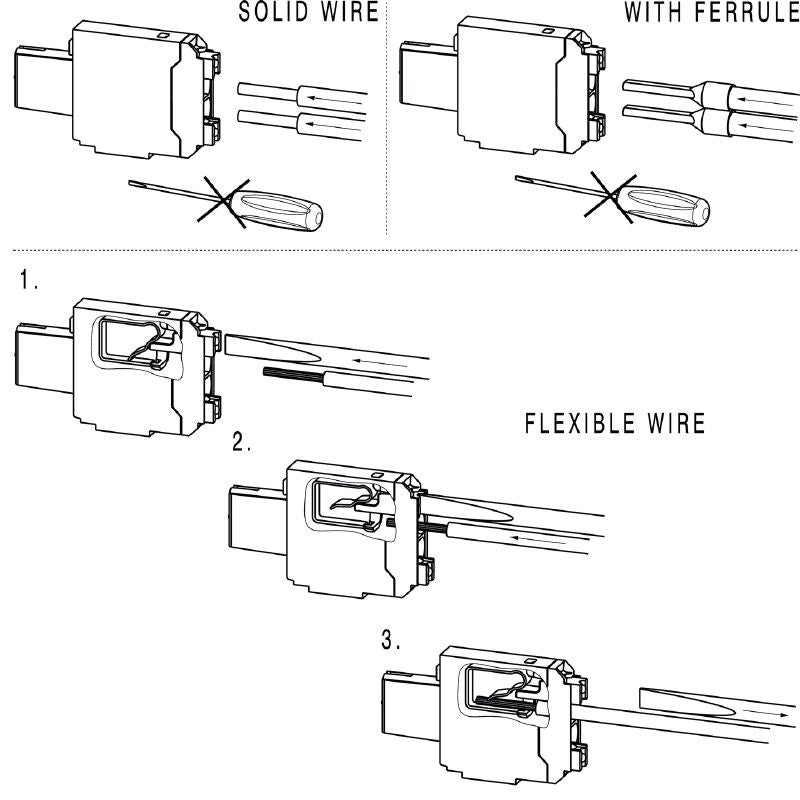

•PUSH IN wire connection method.

•Touch-safe protection according to DIN VDE.

•Compliant with RoHS and REACH standards.

•Can be coded for identification.

Specifications:
