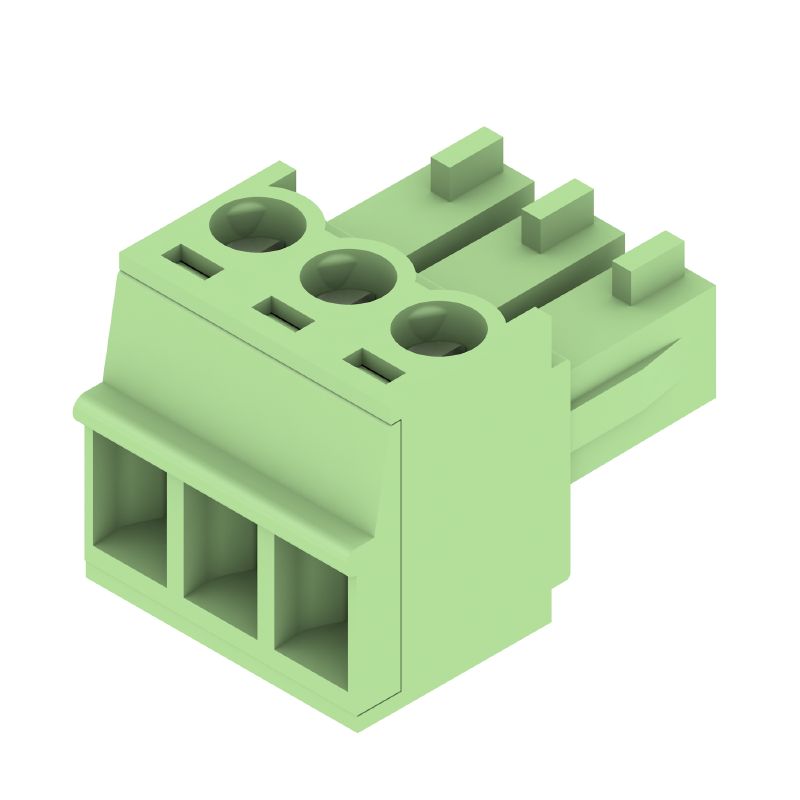

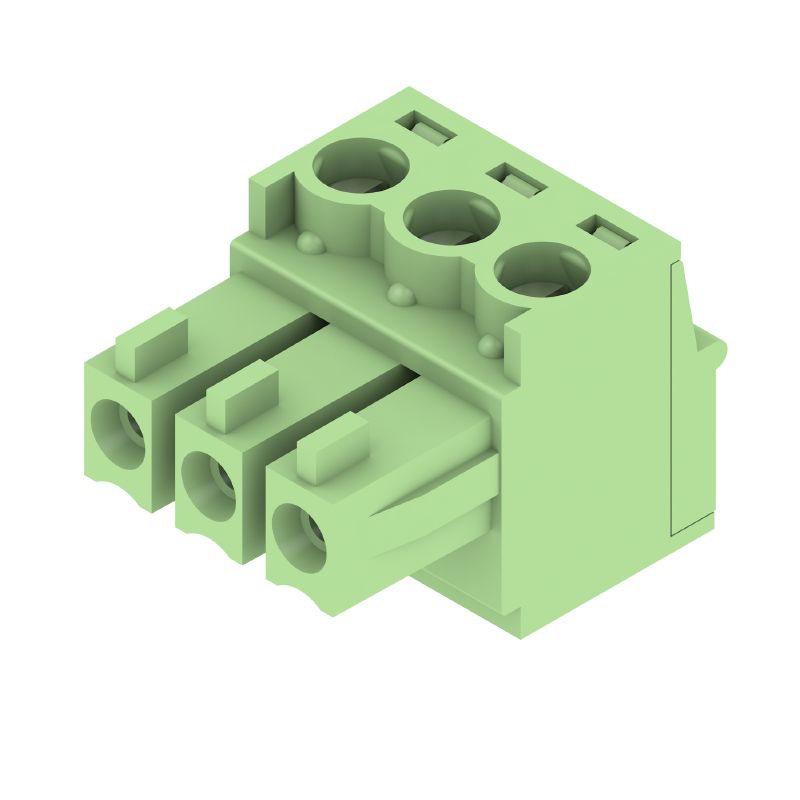

2613220000 - 3-Pole 3.81mm PCB Connector, 180° Angle, RoHS Approved (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the BCZ 381/03/180 SN GN BX PRT, a reliable female PCB plug-in connector, designed for seamless connectivity With a 381 mm pitch and a versatile 180° connection angle, this connector boasts three poles for effective performance It utilizes a clamping yoke system for secure wire connections, accommodating wire sizes of up to 15 mm² Packaged in a convenient box, this product also complies with RoHS regulations, ensuring it meets safety and environmental standards.

Perfect for various electronic applications, it combines functionality and compliance in one compact solution.

Features and Benefits:

•Connector designed for PCB plug-in use.

•Clamping yoke connection for reliable wire attachment.

•Compatible with a wide range of wire sizes from 0.2 to 1.5 mm².

•IEC rated for 320 V and 17.5 A.

•UL rated up to 300 V and 10 A.

Specifications:
