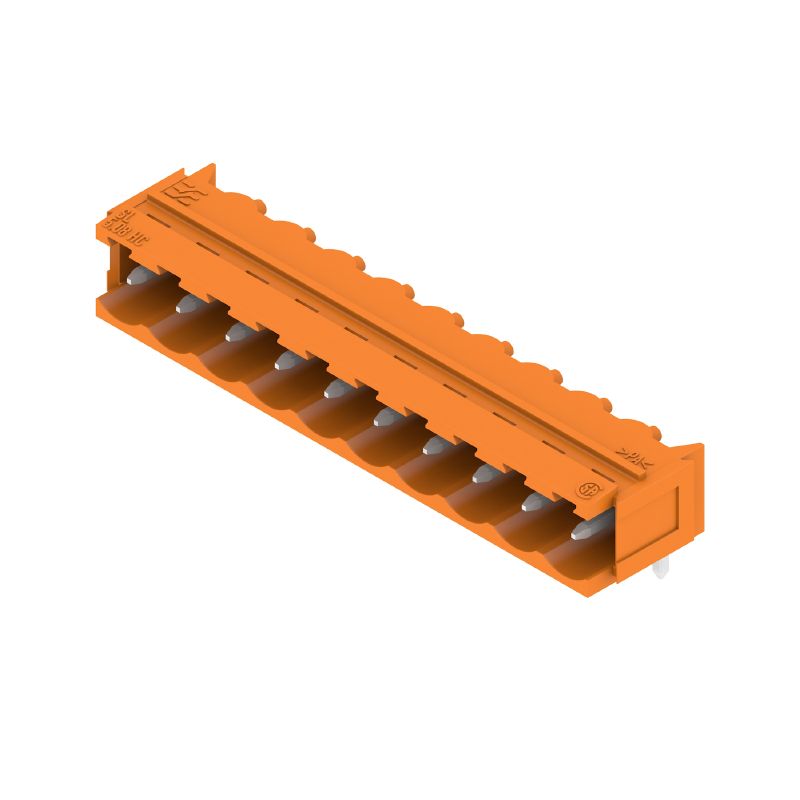

2603480000 - 5.08mm 10-Pole THT PCB Connector with 90° Elbow (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a robust male header PCB plug-in connector, expertly crafted for through-hole technology (THT) solder applications With a pitch measurement of 508 mm and equipped with 10 poles, this connector features a convenient 90° outgoing elbow Its solder pin length is 45 mm and comes with a tinned plating, all neatly enclosed in an eye-catching orange housing This connector is perfect for a wide range of electrical applications, ensuring reliable and solid connections.

Features and Benefits:

•Compliant with RoHS without exemptions.

•No SVHC above 0.1 wt% in compliance with REACH.

•Touch-safe protection according to DIN VDE 57 106.

•Finger-safe when unplugged and back-of-hand-safe when plugged.

•Certified according to IEC 60664-1 and IEC 61984.

•Can be coded for secure connections.

•Rated for 25 plugging cycles.

Specifications:
