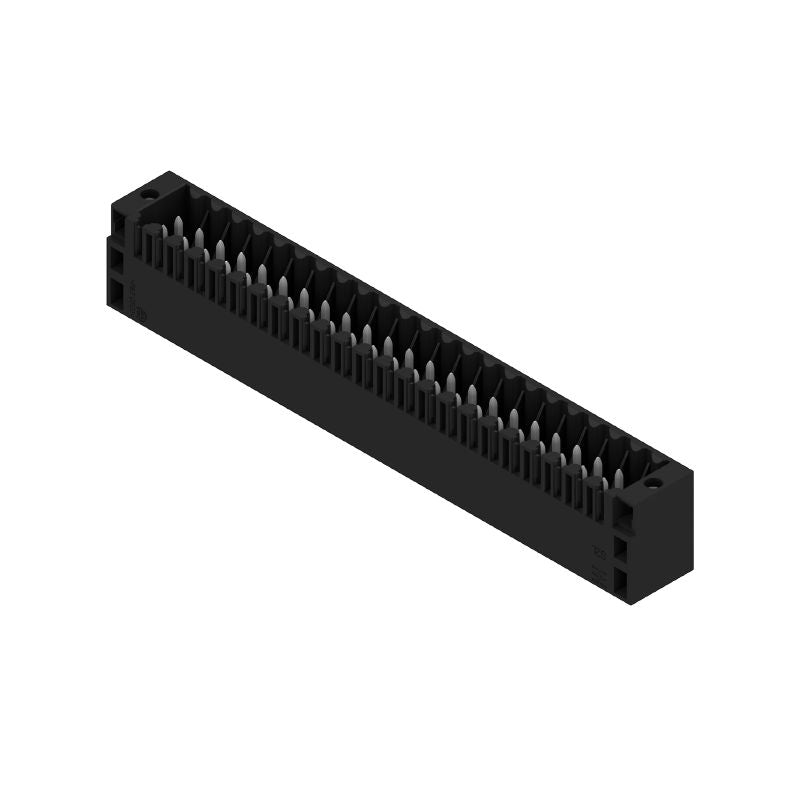

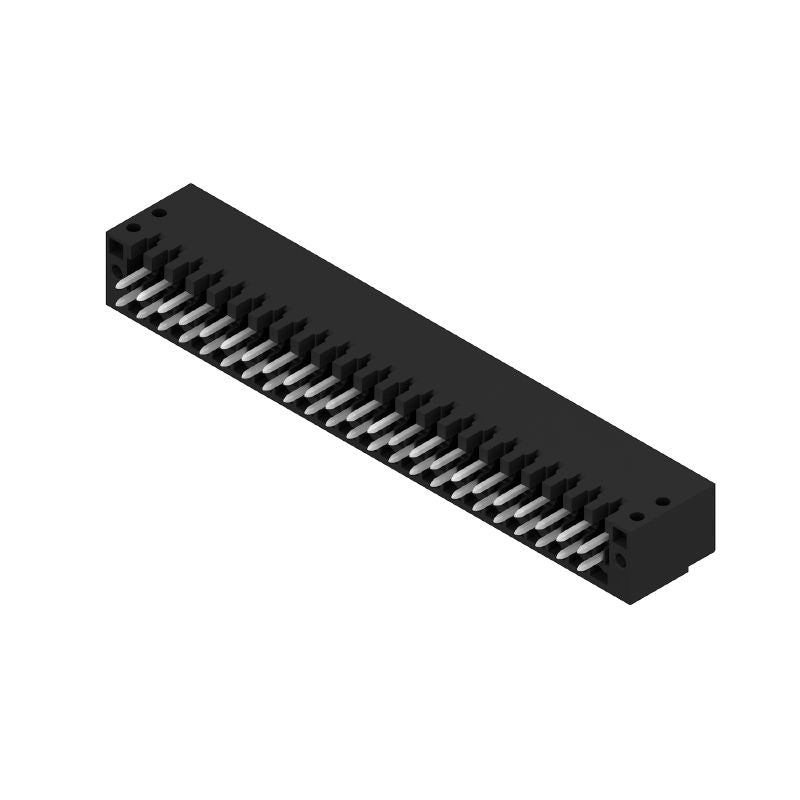

2559410000 - 3.5mm 46-Pole THT Male Header Connector, Black (Pack of 18)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Upgrade your connectivity solutions with this 350 mm male header PCB plug-in connector Engineered with a flange and through-hole technology (THT) solder connection, it features 46 poles arranged at a 180° angle for enhanced functionality The tinned solder pin measures 35 mm in length and comes in a classic black hue, guaranteeing both durability and aesthetic appeal Meeting RoHS standards, this connector is an environmentally friendly choice.

With dimensions of 105 mm in depth, 177 mm in height, and a width of 875 mm, it has a lightweight design at 1197 grams Rated for 250 V and capable of handling a maximum current of 10 A, it complies with UL and IEC standards, making it a versatile option for various applications.

Features and Benefits:

•Touch-safe protection according to DIN VDE standards.

•Can be coded.

•Available in a box for packaging.

•Compliant with RoHS and does not contain exempt substances.

•Long-term storage capable under specific temperature and humidity conditions.

Specifications:
