2548190000 - 5.08mm Female PCB Connector, 4 Poles, 180° Angle (Pack of 90)

2548190000 - 5.08mm Female PCB Connector, 4 Poles, 180° Angle (Pack of 90)

SKU: SKU: 2548190000   Download PDF

Select a Variant:
  • 2548190000 - 5.08mm Female PCB Connector, 4 Poles, 180° Angle (Pack of 90)
Qty:
Regular price Now $275.43   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $275.43 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing this female PCB plug-in connector, specially designed with a 508 mm pitch and accommodating 4 poles at a 180° angle It features a reliable clamping yoke connection, suitable for wires with a maximum clamping range of 4 mm² This connector is packaged in a box for easy storage and handling It also meets essential safety and quality standards, being RoHS and UL certified for your peace of mind.

Features and Benefits:

    •Conforms to RoHS regulations without exemptions.

    •Can be coded for secure connections.

    •Durability of markings has been tested and passed.

Specifications:

 IEC standard 400 V / 23 A / 0.2 - 4 mm²
 UL standard 300 V / 20 A / AWG 26 - AWG 12

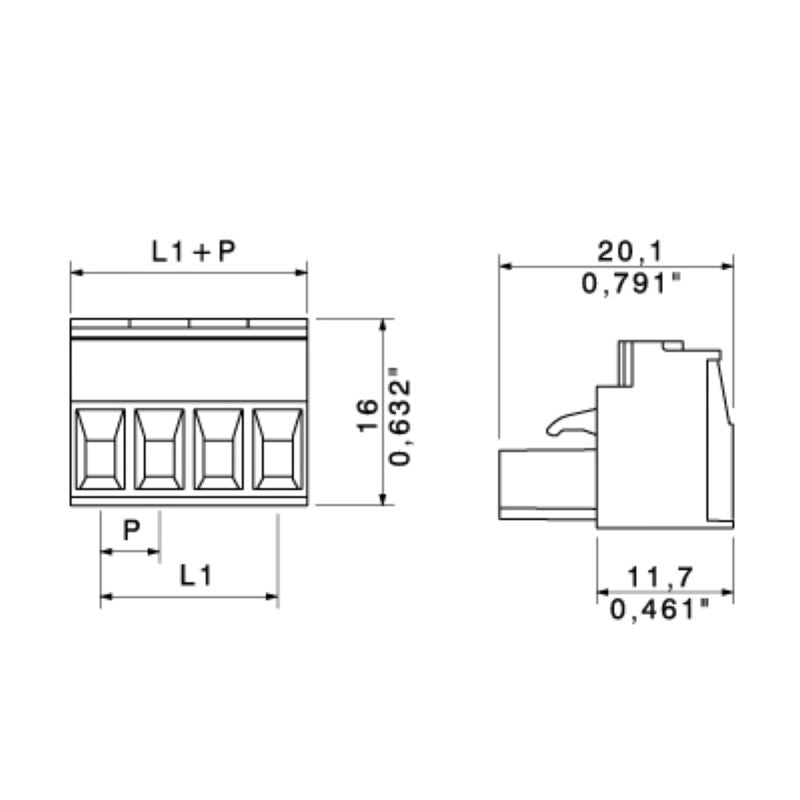

 Dimensions {'Depth': '20.1 mm', 'Height': '16 mm', 'Width': '20.32 mm'}
 Clamping screw M 2.5
 Plugging cycles 25
 Touch-safe protection IP20 plugged/ IP10 unplugged
 Material {'Insulating material': 'PBT', 'Contact material': 'Cu-alloy'}
 Rated impulse voltage 4 kV
 Operating temperature (max) 100 °C
 Storage temperature {'min': '-40 °C', 'max': '70 °C'}
