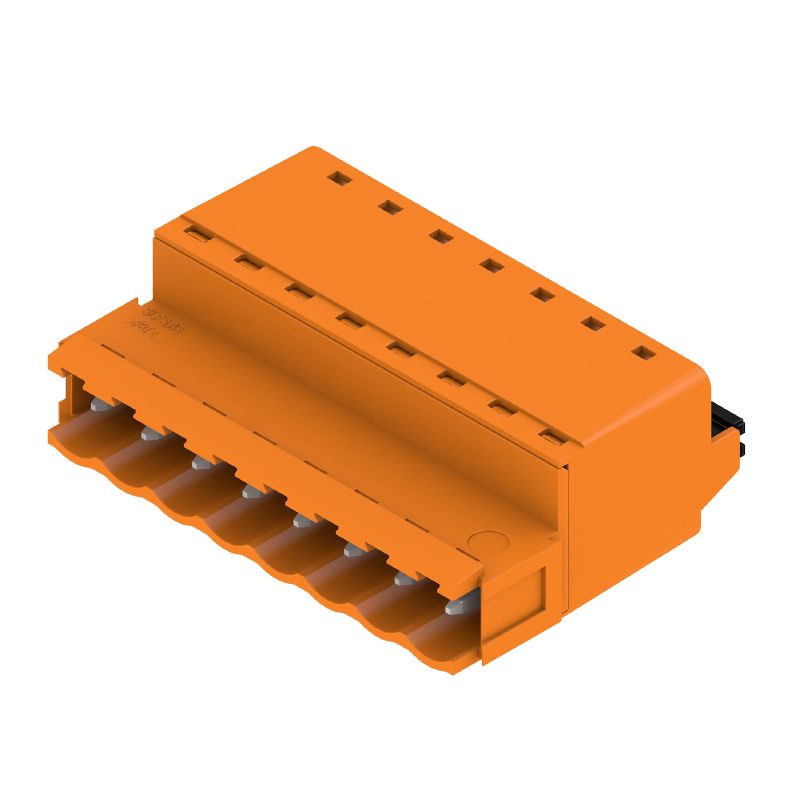

2536160000 - 5.08mm Male PCB Connector, 8-Pole, 180° Orientation (Pack of 42)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a robust male PCB plug-in connector tailored for field applications With a 508 mm pitch, this connector supports 8 poles arranged in a 180° configuration It features a PUSH IN connection system without an actuator, making installation straightforward The connector has a maximum clamping range of 331 mm², ensuring secure connections Capable of handling an operating voltage of up to 400 V and a current rating of 25.

9 A in line with IEC standards, it also meets UL specifications for 300 V and 14 A Each package contains 42 units, conveniently boxed for easy handling.

Features and Benefits:

•PUSH IN connection method without actuator.

•IP20 protection when plugged in, IP10 when unplugged.

•Can be coded for specific applications.

•Compact design with a depth of 30 mm and height of 14.2 mm.

•Made from durable insulating material (PBT).

•Gold-plated contact surfaces available upon request.

Specifications:
