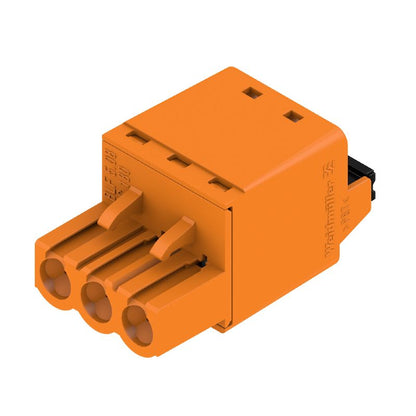

2473460000 - 5.08mm PCB Female Connector, 180° Push-In Design (Pack of 120)

2473460000 - 5.08mm PCB Female Connector, 180° Push-In Design (Pack of 120)

SKU: SKU: 2473460000   Download PDF

Select a Variant:
  • 2473460000 - 5.08mm PCB Female Connector, 180° Push-In Design (Pack of 120)
Qty:
Regular price Now $246.94   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $246.94 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Experience reliable connectivity with this PCB plug-in connector, specifically crafted for female plugs featuring a 508 mm pitch and a 180° orientation It uses a PUSH IN wire connection method enhanced by an actuator, allowing for a maximum wire clamping capacity of 331 mm² Adhering to RoHS standards, this product is neatly packaged in a box for easy storage and transport.

Features and Benefits:

    •Three poles configuration.

    •Touch-safe design against unintended contact.

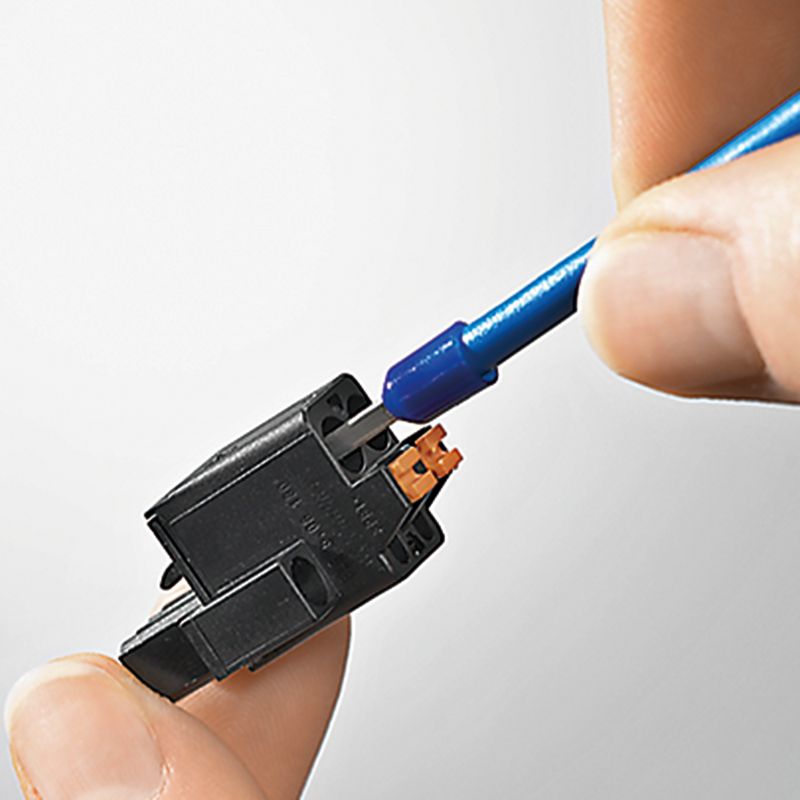

    •Connection method enables easy installation.

    •Can be coded for specific applications.

Specifications:

 Operating Voltage (IEC) 400 V / 24 A / 0.2 - 2.5 mm²
 Operating Voltage (UL) 300 V / 18.5 A / AWG 26 - AWG 12

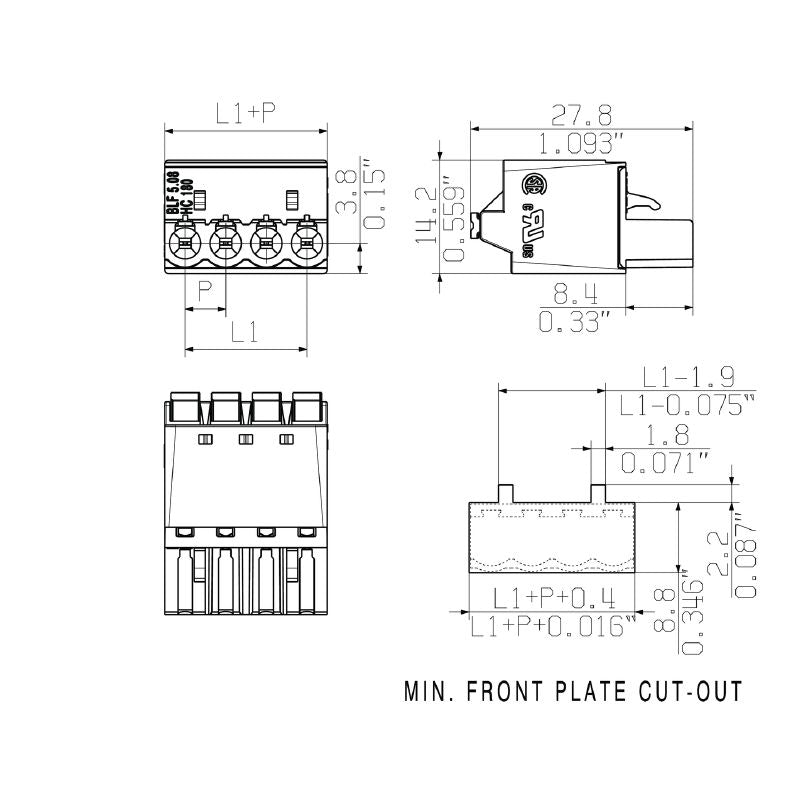

 Dimensions {'Depth': '27.7 mm', 'Height': '14.2 mm', 'Width': '15.24 mm'}
 Material {'Insulating Material': 'PBT', 'Contact Material': 'Cu-alloy'}
 Rated Cross Section 2.5 mm²
 Voltage Ratings {'Surge Voltage Class II/2': '400 V', 'Surge Voltage Class III/2': '320 V', 'Surge Voltage Class III/3': '250 V'}
 Temperature Ratings {'Storage': '-40 °C to 70 °C', 'Operating': '-50 °C to 100 °C', 'Installation': '-30 °C to 100 °C'}
 Protection Degree IP20
 Number of Rows 1
 Pin Series Quantity 1
 Plugging Cycles 25
