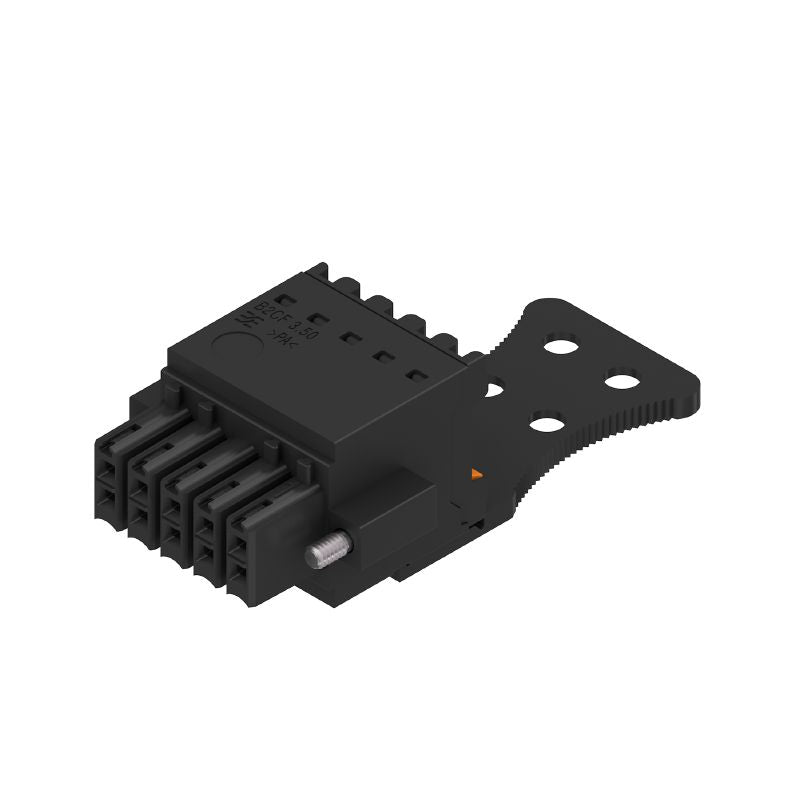

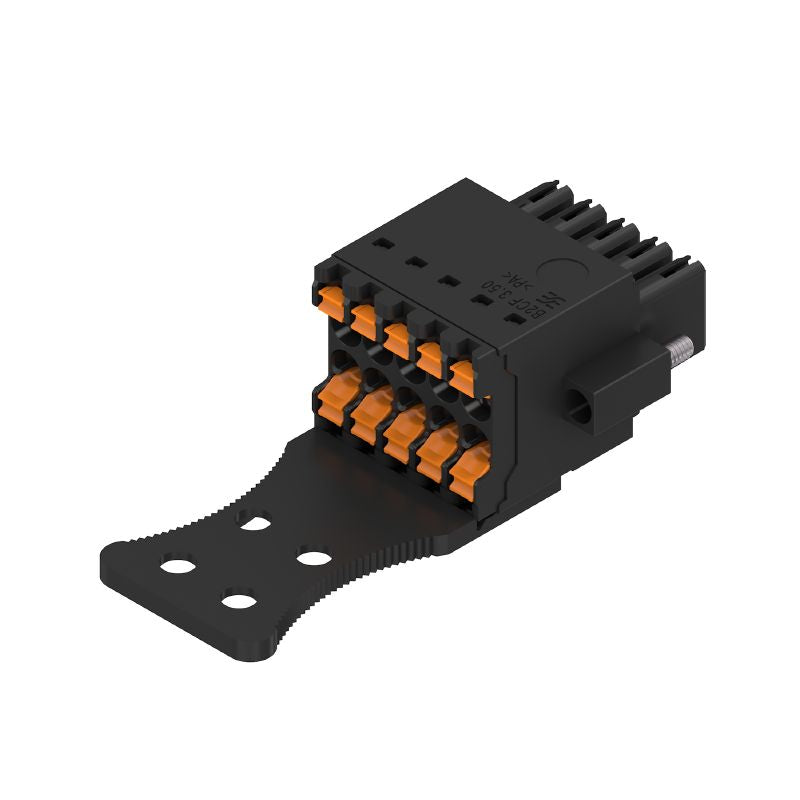

2467360000 - 3.50mm PCB Female Connector with 10 Poles, 180-Degree, Push-In (Pack of 54)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the B2CF 350/10/180FZE SN BK BX, a reliable PCB plug-in connector featuring a compact 350 mm pitch and a female plug configuration This connector is optimized with 10 poles that facilitate a 180-degree connection, employing a user-friendly PUSH IN mechanism complete with an easy-to-operate button It supports wire sizes from 014 to 15 mm², providing a versatile clamping range suited for multiple applications.

Delivered in a protective box, this connector meets RoHS compliance and adheres to other industry standards, ensuring high-quality performance in your projects.

Features and Benefits:

•Compatible with IEC: 320 V / 13.4 A / 0.14 - 1.5 mm².

•UL rated for 300 V / 9.5 A / AWG 30 - AWG 16.

•Insulating material is PA 66 GF 30 for durability.

•Touch-safe design protecting against finger touch according to DIN standards.

•The connector allows for a maximum pulling force and plugging cycles of 25.

•Can be coded for secure connections.

•Field connection applications.

Specifications:
