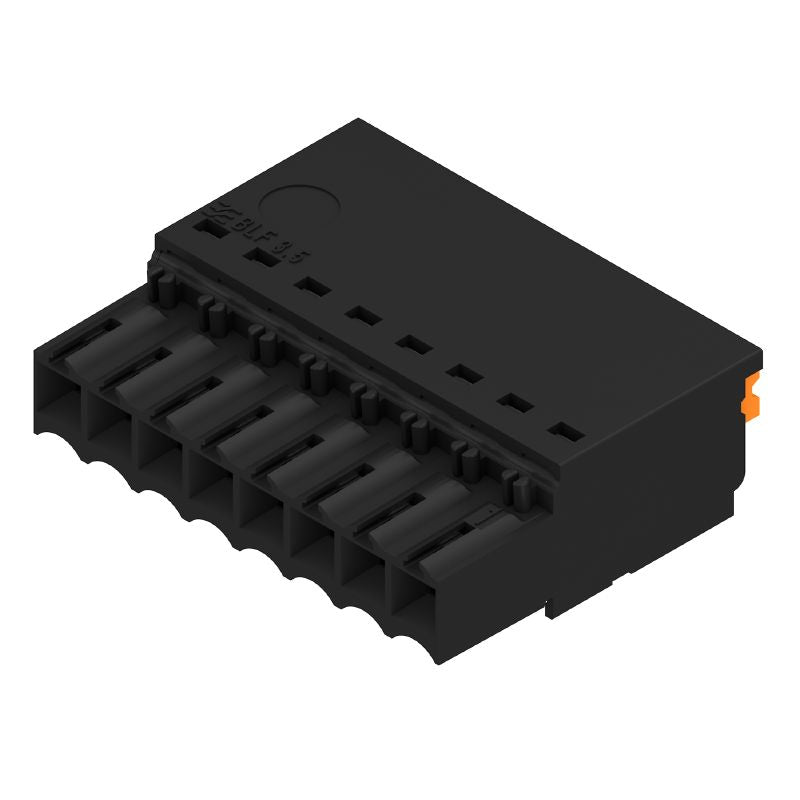

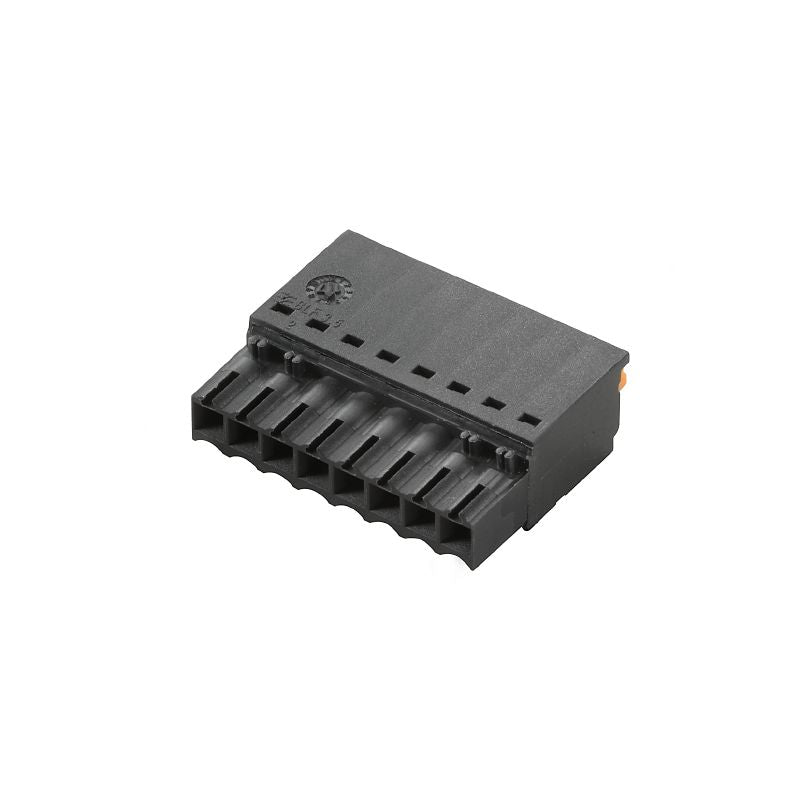

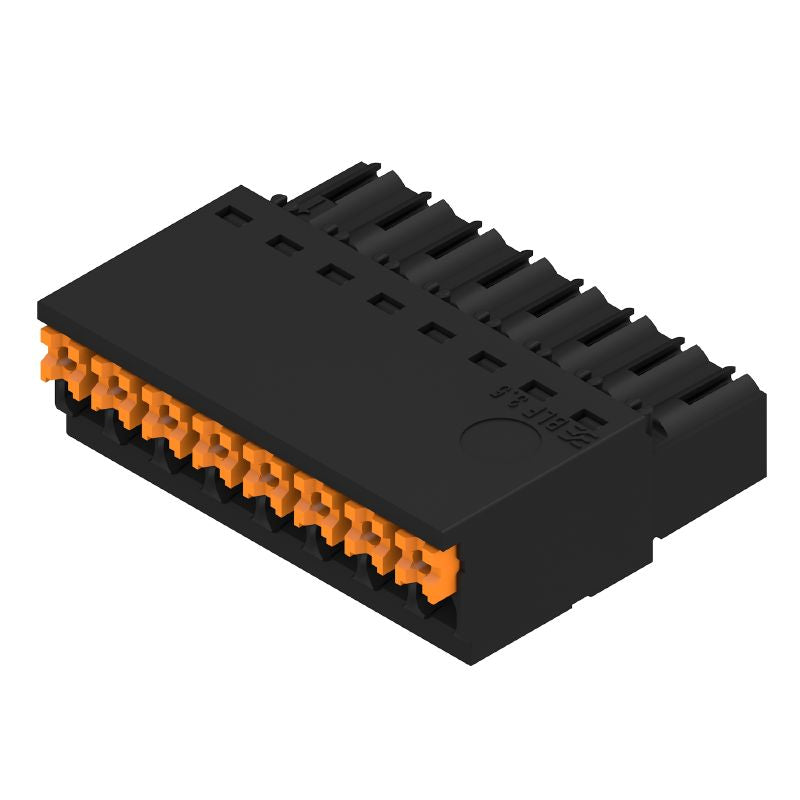

2459340000 - 3.5mm PCB 8-Pole Female Connector with PUSH IN Technology (Pack of 66)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the BLF 350/08/180 SN BK BX, a reliable PCB plug-in female connector featuring a compact 35 mm pitch and equipped with 8 poles set at a 180-degree angle This connector is designed for easy wire insertion with its PUSH IN mechanism and can handle wire sizes of up to 15 mm² Each unit comes packaged in a protective box and meets various compliance standards, including ROHS, ensuring a safe and environmentally friendly choice for your electrical connections.

Features and Benefits:

•PUSH IN wire connection method.

•Supports a maximum clamping range of 1.5 mm².

•Compatible with a variety of conductor sizes, including AWG 16 to AWG 26.

•Touch-safe protection according to DIN VDE standards.

•Can be coded for secure connections.

•Visual and dimensional tests confirmed compliance.

Specifications:
