2454880000 - 3.81mm 8-Pole PCB Plug Connector for THT/THR Soldering (Pack of 300)

2454880000 - 3.81mm 8-Pole PCB Plug Connector for THT/THR Soldering (Pack of 300)

SKU: SKU: 2454880000   Download PDF

Select a Variant:
  • 2454880000 - 3.81mm 8-Pole PCB Plug Connector for THT/THR Soldering (Pack of 300)
Qty:
Regular price Now $1,105.26   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $1,105.26 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

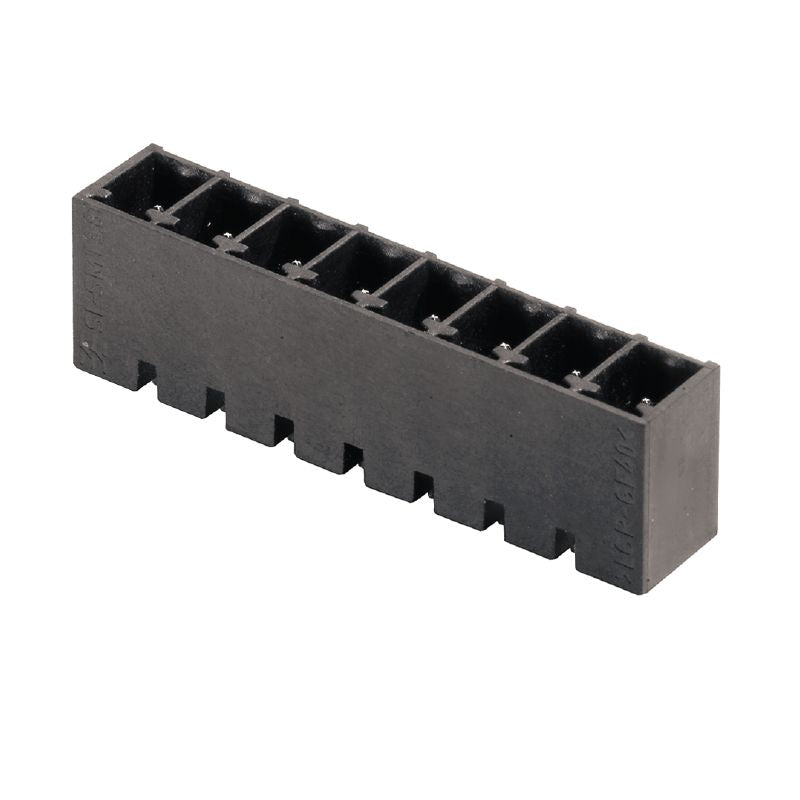

This male header PCB plug-in connector is expertly crafted for THT/THR solder connections, featuring a closed side design for enhanced stability With a compact 381 mm pitch and 8 poles, it provides reliable connectivity The solder pins measure 15 mm in length and are tinned for improved conductivity For convenience, the connectors are packaged in black tape, making them easy to manage and store.

Features and Benefits:

    •Compliant with RoHS without exemption.

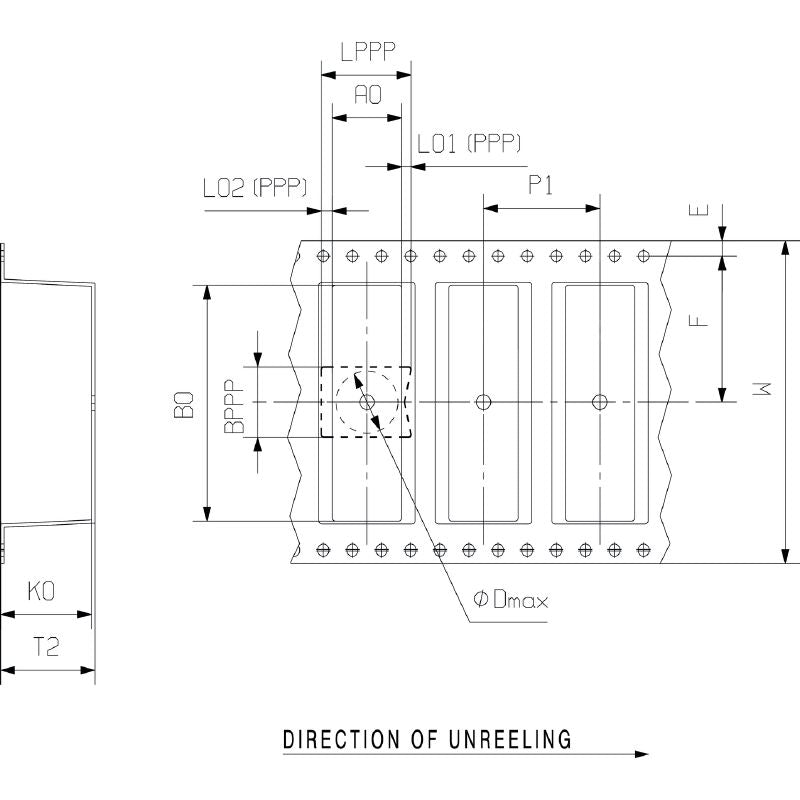

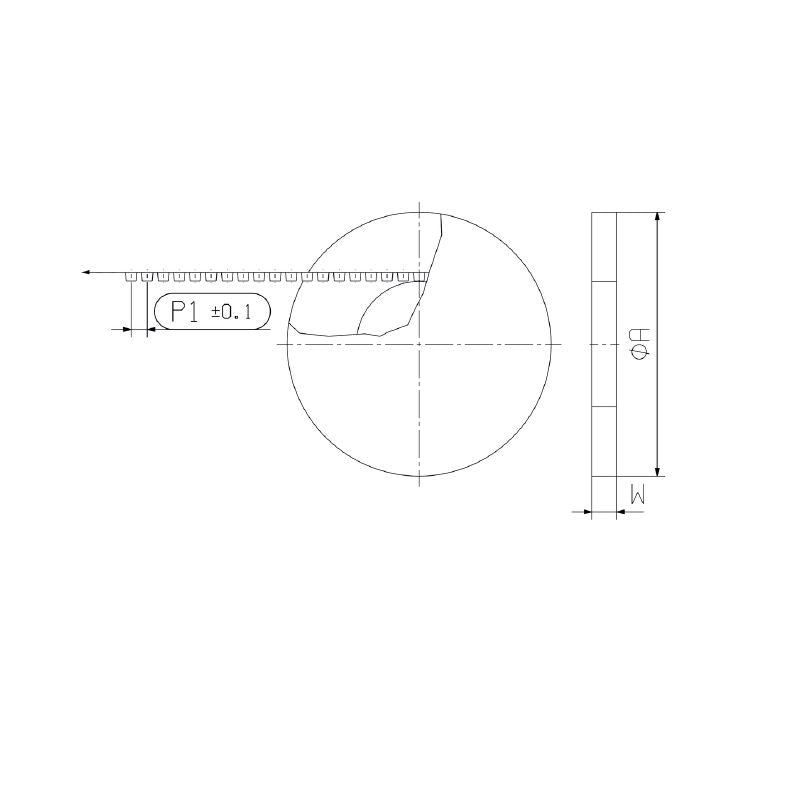

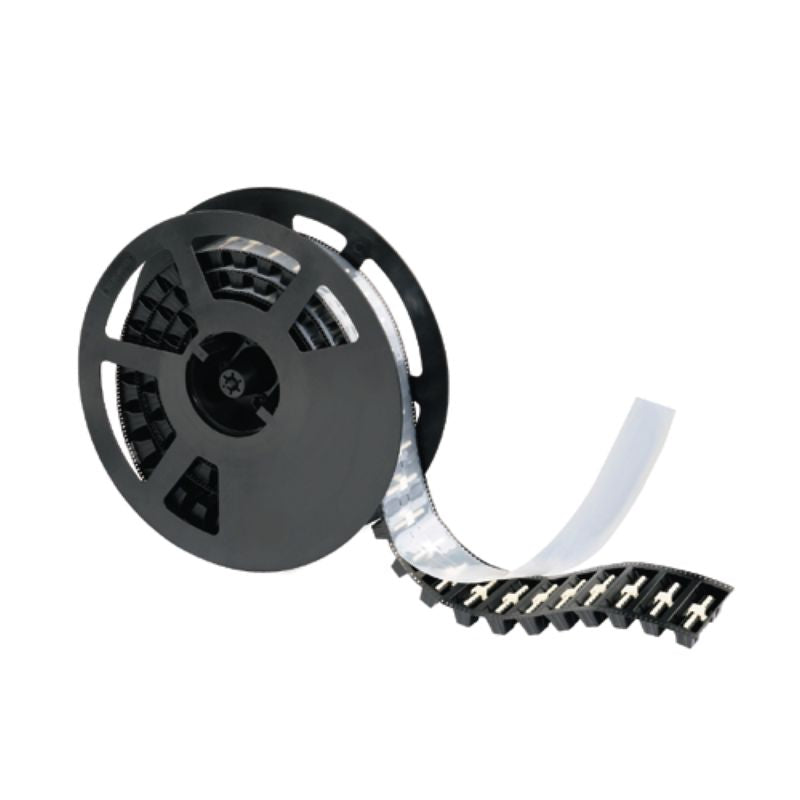

    •Contains a tape packaging.

    •Touch-safe protection according to DIN VDE 57 106.

    •Can be coded.

Specifications:

 IEC Voltage Rating 320 V / 17.5 A
 UL Voltage Rating 300 V / 11 A
 Depth 7.07 mm
 Height 10.7 mm
 Width 31.17 mm
 Pitch 3.81 mm
 Operating Temperature (Min) -50 °C
 Operating Temperature (Max) 120 °C
 Storage Temperature (Min) -40 °C
 Storage Temperature (Max) 70 °C
 Volume Resistance ≤5 mΩ
 Solder Pin Dimensions d = 1.0 mm
 Number of Poles 8
 Number of Solder Pins per Pole 1
 Template Aperture Diameter 1.9 mm
 L1 in mm 26.67 mm
 Flammability Rating V-0
 Number of Rows 1
 Short-time Withstand Current Resistance 3 x 1s with 76 A
