2454750000 - 5mm Pitch PCB Connector with 180° Orientation (Pack of 180)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

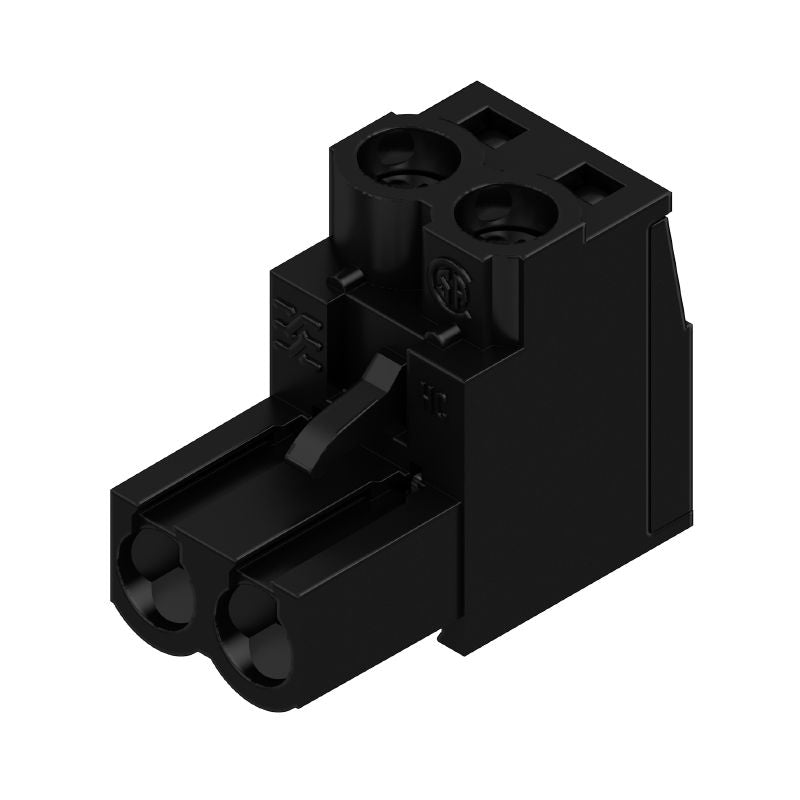

Introducing the BLZP 500HC/02/180 female plug PCB connector, designed with a precise 500 mm pitch and featuring a dual-pole design with a 180° connection angle This connector utilizes a reliable clamping yoke connection method, accommodating wire sizes between 02 mm² and 4 mm² Delivered in a secure box, it also meets multiple standards, including RoHS compliance, ensuring safety and quality for your electronic projects.

Features and Benefits:

•Conforms to RoHS standards without exemption.

•Rated for 400 V at 23 A according to IEC criteria.

•Compliant with UL standards at 300 V and 20 A.

•Compatible with wire sizes from AWG 26 to AWG 12.

•Designed for field connection with clamping yoke method.

•Includes touch-safe protection.

•Can be coded for additional functionality.

Specifications:
