2444220000 - 5-Pole 3.81mm PCB Connector with 180° Angle (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

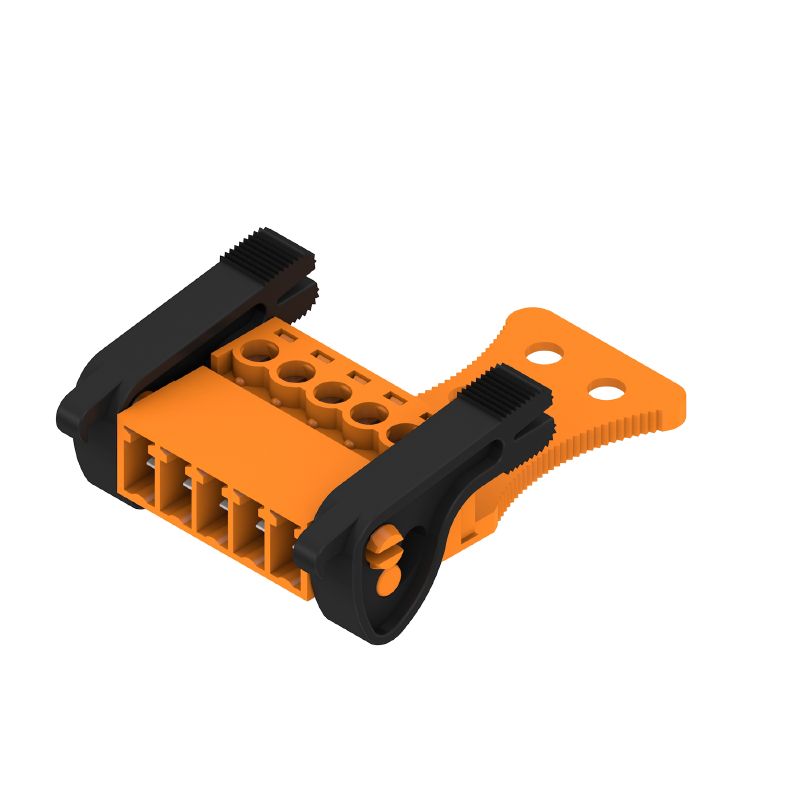

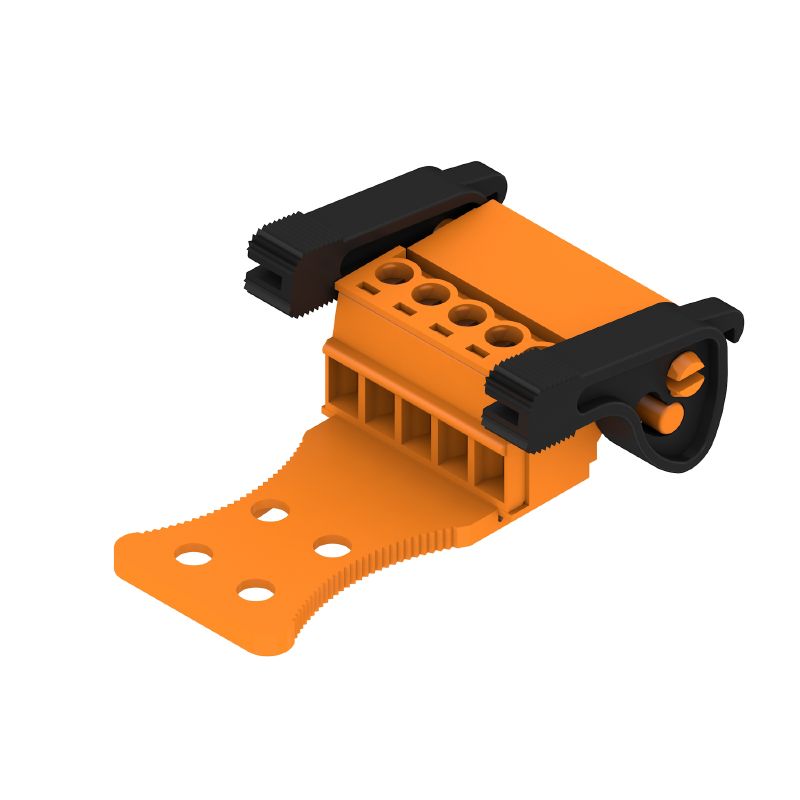

Optimize your connections with this versatile PCB plug-in connector, specifically designed for male plugs with a 381 mm pitch It features a compact layout of five poles positioned at a 180° angle, providing reliable and secure connections The clamping yoke mechanism supports conductors with a cross-section of up to 15 mm² for effortless wire attachment Fully compliant with RoHS regulations and certified by multiple industry authorities, this connector is suitable for a wide array of applications, ensuring safety and performance.

Features and Benefits:

•Conforms to RoHS standards.

•Suitable for field connections.

•Compatible with a range of wire cross-sections from 0.08 mm² to 1.5 mm².

•Finger-safe when plugged in and back-of-hand-safe when unplugged.

•Touch-safe design according to DIN VDE standards.

•Can be coded for secure, unambiguous connections.

•Designed for simple installation and connection.

Specifications:
