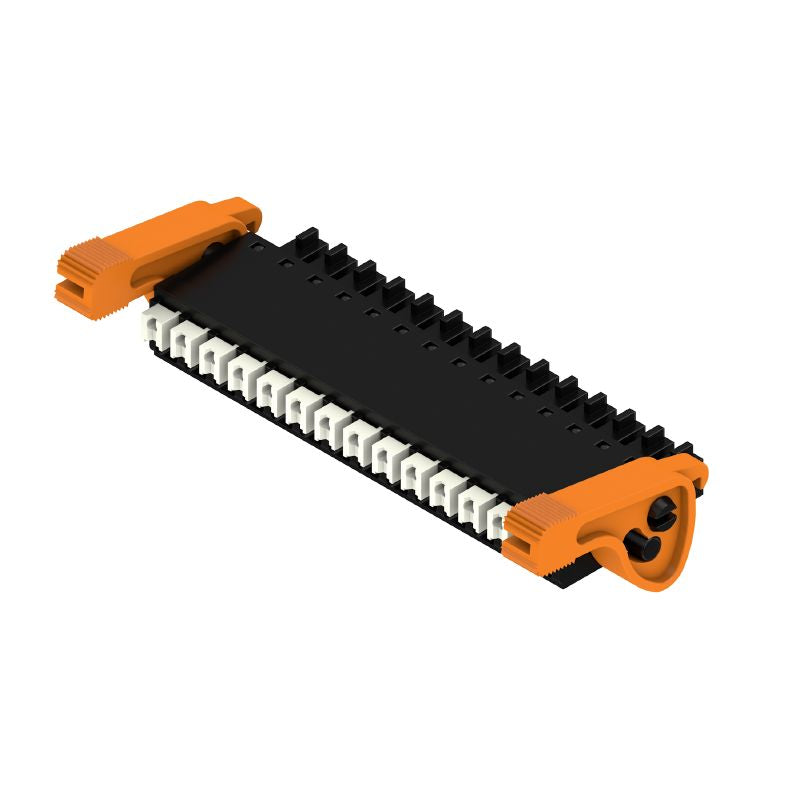

2442860000 - 14-Pole 3.81mm PCB Female Plug Connector, Push-in Design (Pack of 50)

2442860000 - 14-Pole 3.81mm PCB Female Plug Connector, Push-in Design (Pack of 50)

SKU: SKU: 2442860000   Download PDF

Select a Variant:
  • 2442860000 - 14-Pole 3.81mm PCB Female Plug Connector, Push-in Design (Pack of 50)
Qty:
Regular price Now $509.56   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $509.56 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

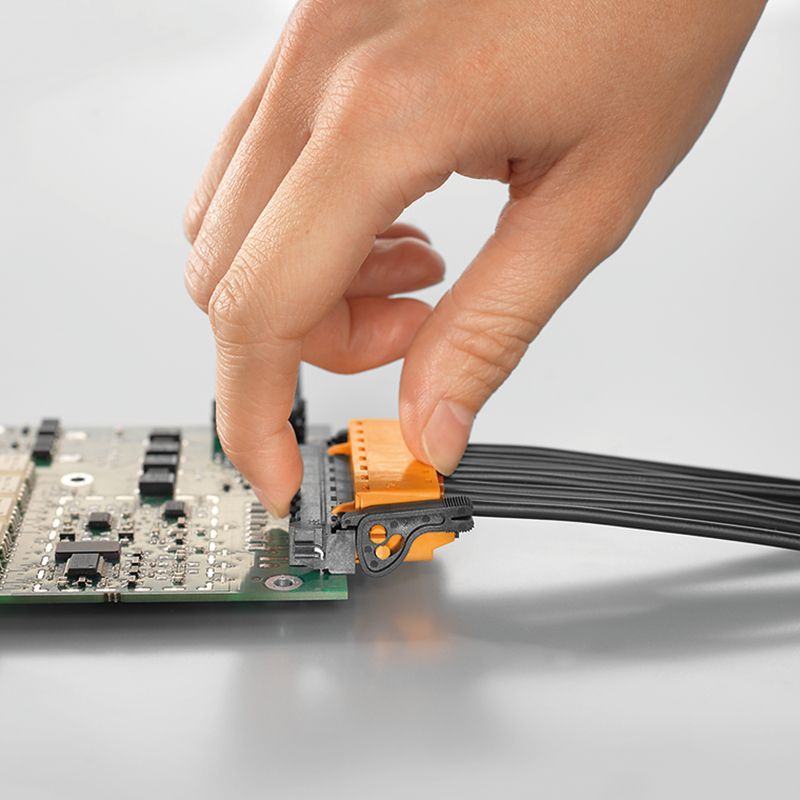

Introducing the BCF 381/14/180LR SN BK BX, a female plug PCB connector perfect for your electronic projects This connector features a 381 mm pitch and includes 14 poles for a reliable 180° connection It utilizes a PUSH IN mechanism with an actuator for effortless installation, accommodating a maximum clamping range of 15 mm² With compliance to RoHS and various UL standards, this connector ensures quality and safety in your applications.

Ideal for both professional and DIY use.

Features and Benefits:

    •Safe from finger touch according to DIN VDE 57 106.

    •Can be coded for specific applications.

    •Insulating material PA 66 GF 30.

    •Black color that corresponds to RAL 9011.

    •Meets IP20 rating for touch-safe protection when plugged and IP10 when unplugged.

    •Low volume resistance of ≤5 mΩ.

Specifications:

 Approvals ROHS Compliant
 UL File Number E60693
 Rated Voltage IEC: 320 V / 17.5 A / 0.14 - 1.5 mm²; UL: 300 V / 10 A / AWG 26 - AWG 16
 Pitch 3.81 mm
 Number of Poles 14

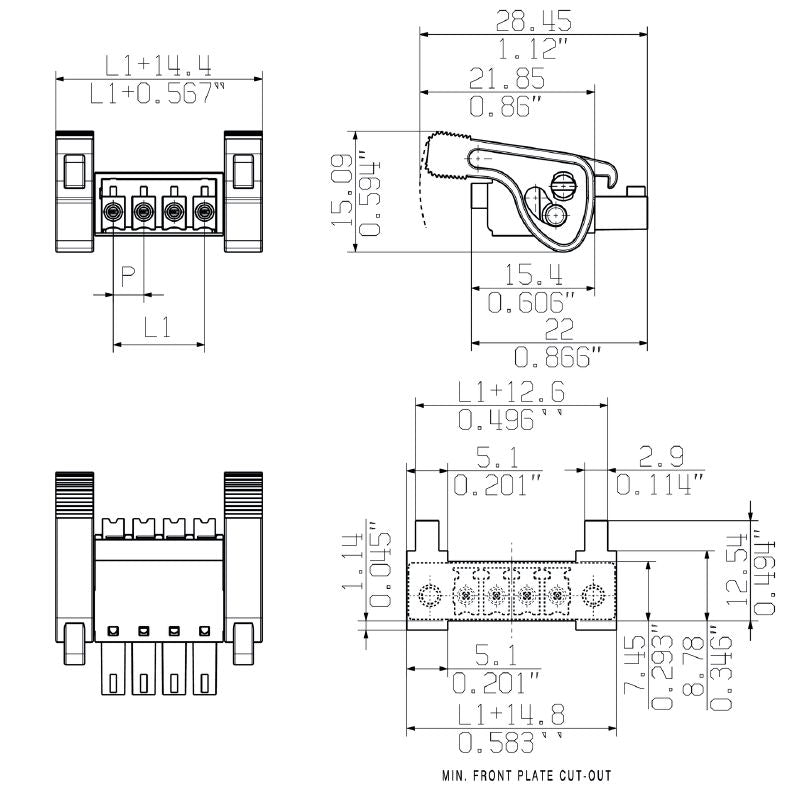

 Dimensions {'Depth': '28.45 mm', 'Height': '15.09 mm', 'Width': '63.93 mm'}
 Operating Temperature {'Min': '-50 °C', 'Max': '120 °C'}
 Storage Temperature {'Min': '-40 °C', 'Max': '70 °C'}

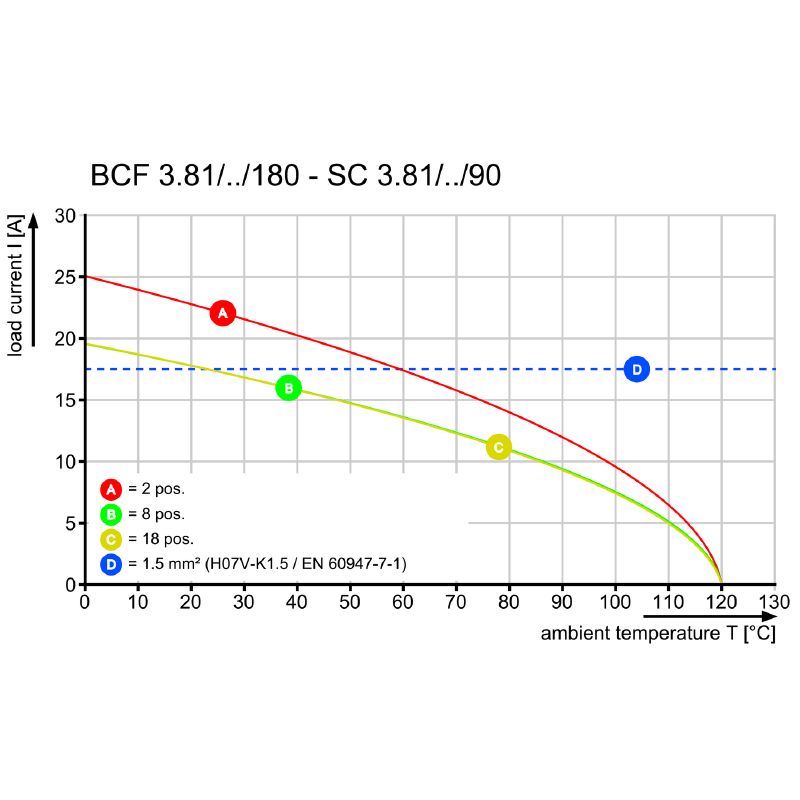

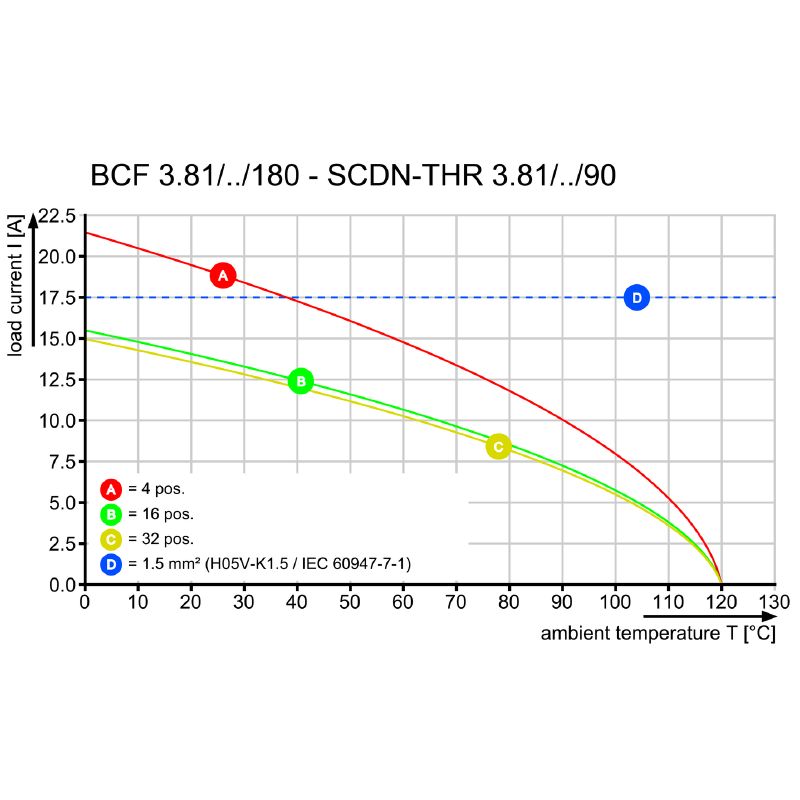

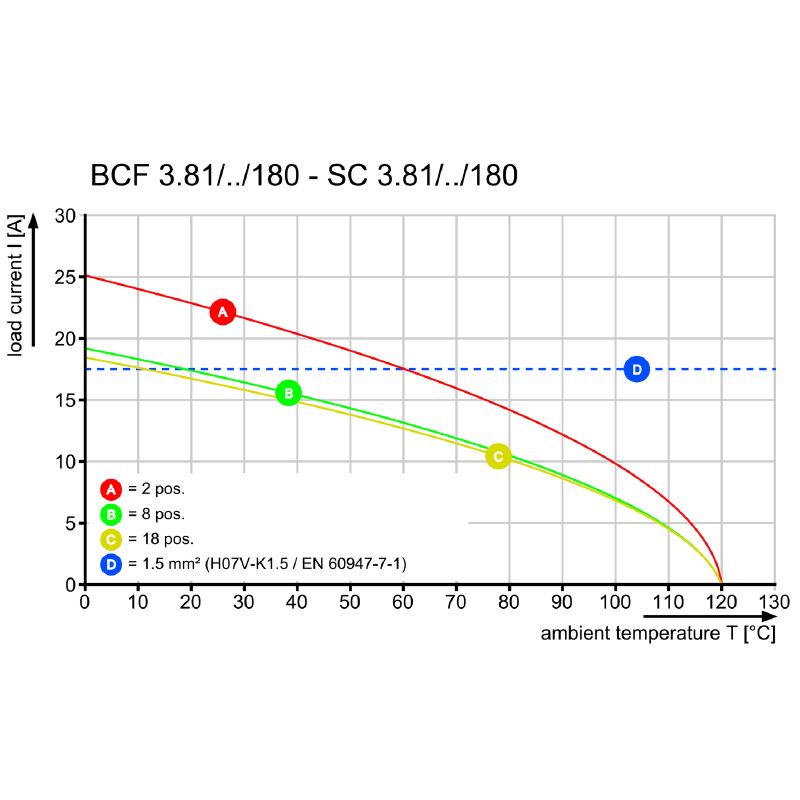

 Rated Current {'Min (Tu=20°C)': '17.5 A', 'Max (Tu=20°C)': '17.5 A', 'Min (Tu=40°C)': '17.5 A', 'Max (Tu=40°C)': '16.3 A'}
 Insulation Resistance ≥ 10^8 Ω
 Flammability Rating UL 94 V-0
 Touch-safe protection IP20 plugged/ IP10 unplugged
