2442270000 - 3.81mm Pitch Female Plug Connector for PCB Applications (Pack of 50)

2442270000 - 3.81mm Pitch Female Plug Connector for PCB Applications (Pack of 50)

SKU: SKU: 2442270000   Download PDF

Select a Variant:
  • 2442270000 - 3.81mm Pitch Female Plug Connector for PCB Applications (Pack of 50)
Qty:
Regular price Now $549.04   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $549.04 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

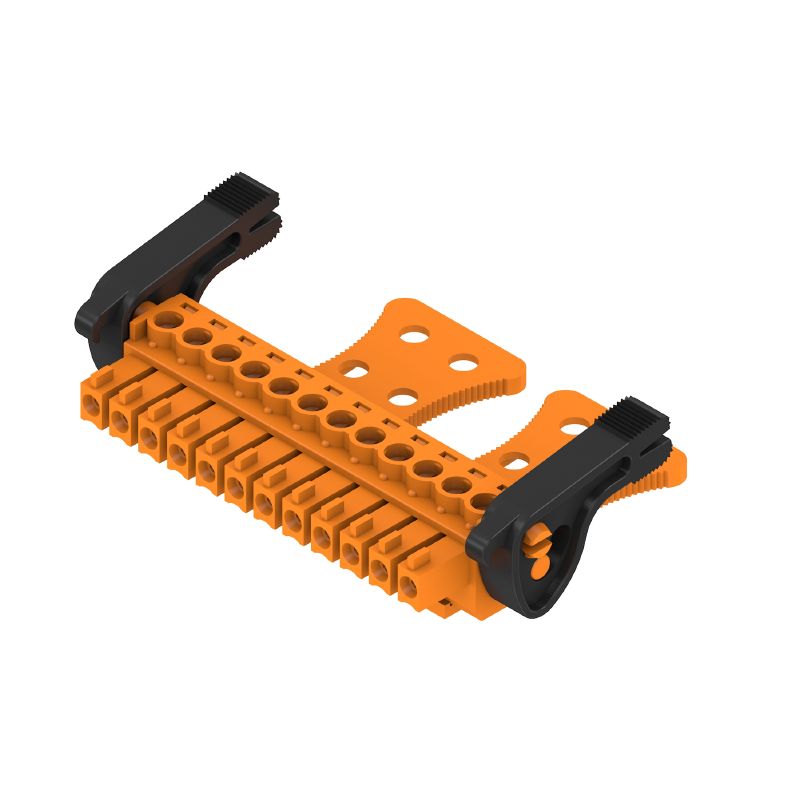

Introducing a female plug-in connector tailored for PCB applications, featuring a 381 mm pitch and 12 poles arranged at a 180° angle This versatile connector employs a clamping yoke connection, accommodating conductor sizes ranging from 02 to 15 mm² Each unit is packaged in a box, adheres to RoHS regulations, and bears the cURus certification number E60693, ensuring high standards of safety and compliance.

Features and Benefits:

    •Conforms to RoHS regulations.

    •Field connection type.

    •Touch-safe protection according to DIN VDE 57 106.

    •Can be coded for secure connections.

    •Simple wire stripping length of 7 mm.

Specifications:

 Rated voltage (IEC) 320 V / 300 V

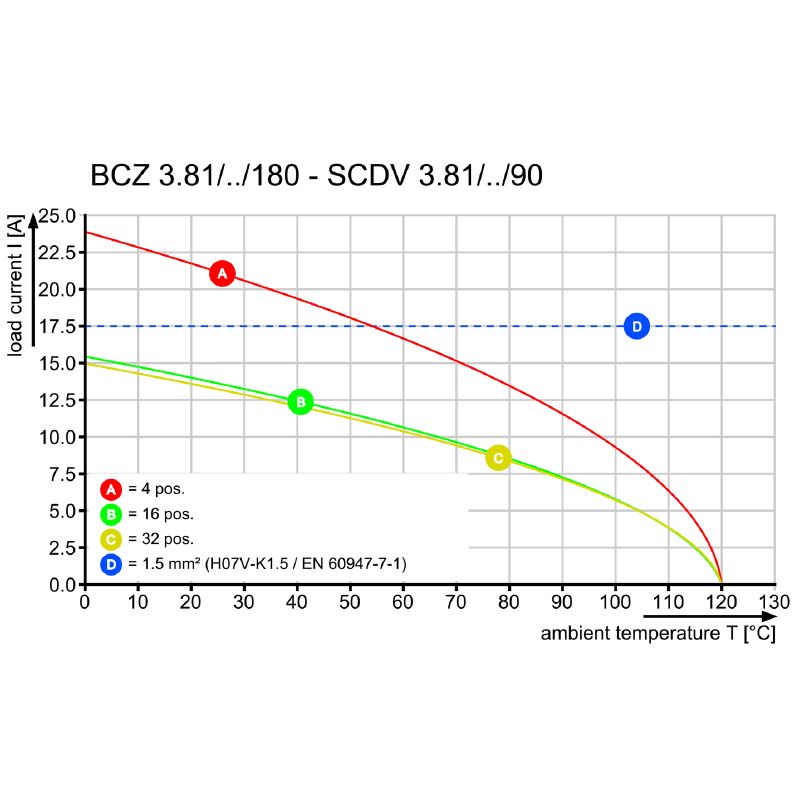

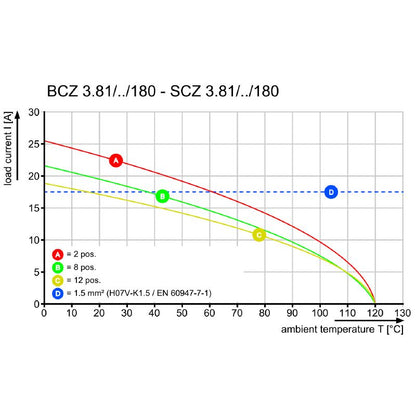

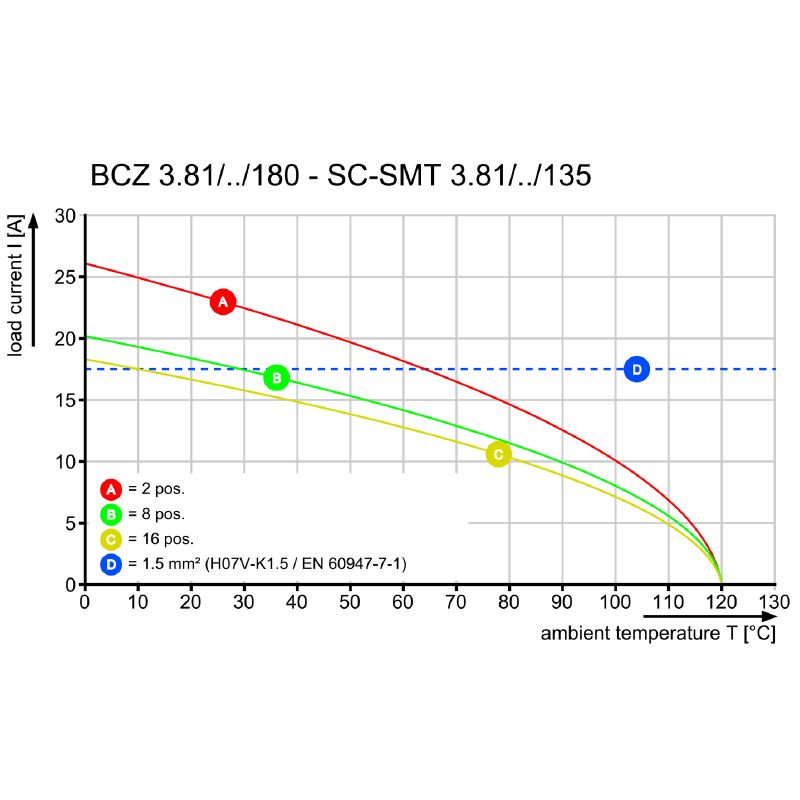

 Rated current (IEC) 17.5 A / 10 A

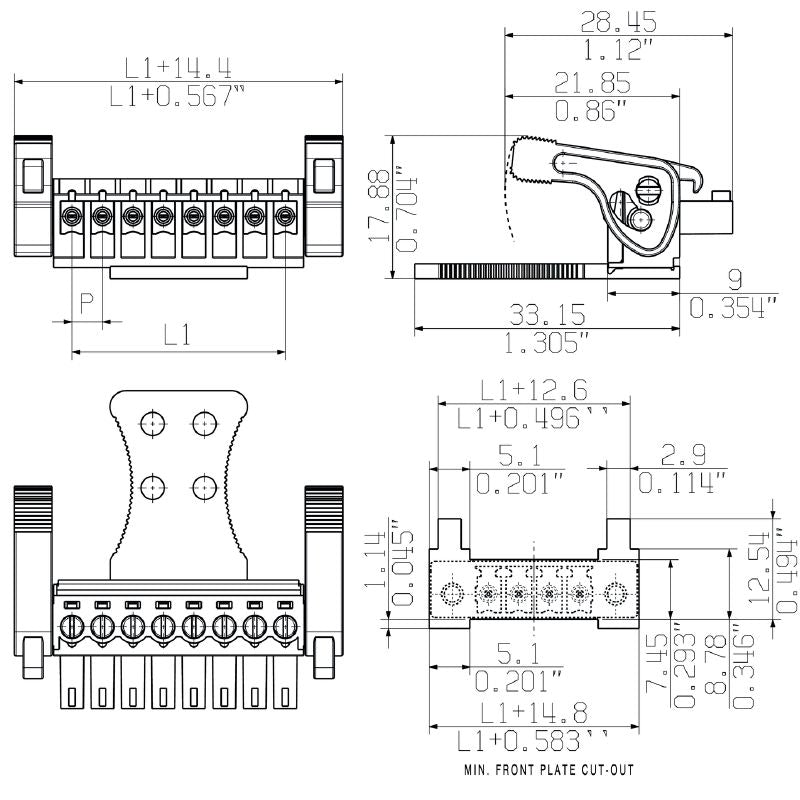

 Width 56.31 mm / 2.217 inch
 Height 17.88 mm / 0.704 inch
 Depth 39.75 mm / 1.565 inch
 Protection degree IP20
 Storage temperature range -40 °C to 70 °C
 Operating temperature range -50 °C to 120 °C
 Pitch 3.81 mm
 Volume resistance ≤5 mΩ
 Plugging cycles 25
 Material PA 66 GF 30
