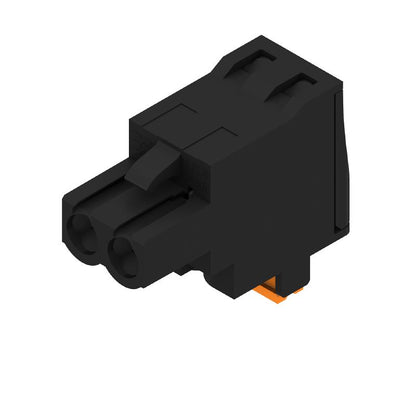

1990780000 - 5.08mm PCB Female Connector, 270° Angle, PUSH IN Design (Pack of 180)

1990780000 - 5.08mm PCB Female Connector, 270° Angle, PUSH IN Design (Pack of 180)

SKU: SKU: 1990780000   Download PDF

Select a Variant:
  • 1990780000 - 5.08mm PCB Female Connector, 270° Angle, PUSH IN Design (Pack of 180)
Qty:
Regular price Now $320.03   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $320.03 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Enhance your connectivity with this PCB plug-in female connector, featuring a compact 508 mm pitch and dual poles Designed with a 270° angle, it utilizes a PUSH IN connection method equipped with an actuator for easy installation Capable of accommodating a clamping range of up to 331 mm², it meets a variety of application needs This product comes securely packaged in a box and has undergone rigorous testing to ensure compliance with industry standards.

Features and Benefits:

    •PUSH IN connection with actuator.

    •Rated voltage of 400 V / 24 A according to IEC standards.

    •UL certified with a voltage rating of 300 V / 18.5 A.

    •Touch-safe design compliant with relevant safety standards.

    •Can be coded for connector alignment.

Specifications:

 Depth 26.2 mm
 Height 20.6 mm
 Width 10.16 mm
 Conductor outlet direction 270°
 Number of poles 2
 Protection degree IP20
 Material PBT
 Color black
 Rated cross-section 2.5 mm²
 Storage temperature range -40 °C to 70 °C
 Operating temperature range -50 °C to 100 °C
 Pitch 5.08 mm
 Plugging cycles 25
 Volume resistance ≤5 mΩ
 Touch-safe protection Safe from finger touch
 Stripping length 10 mm
