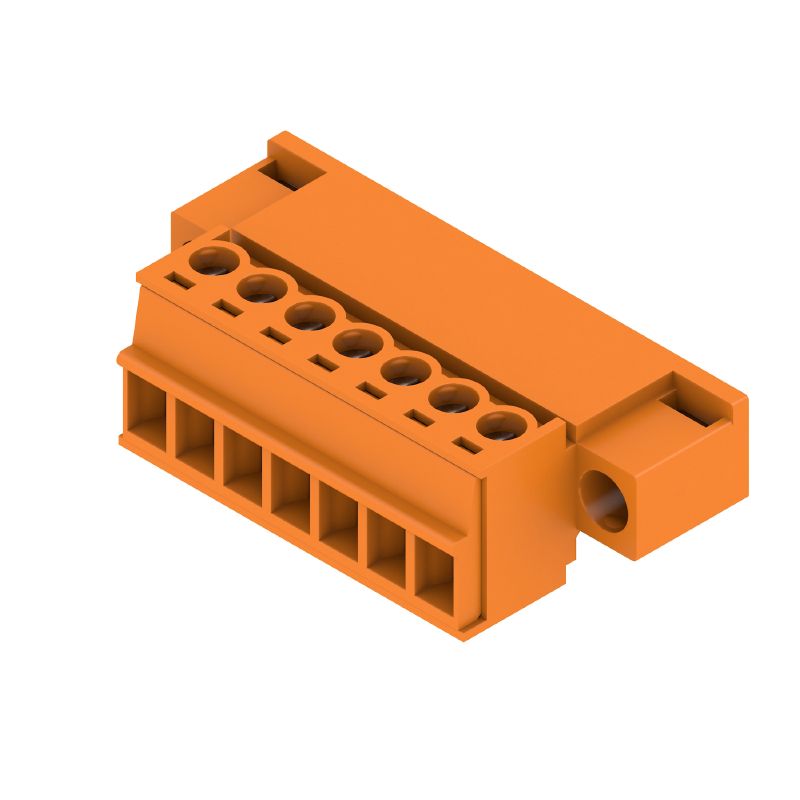

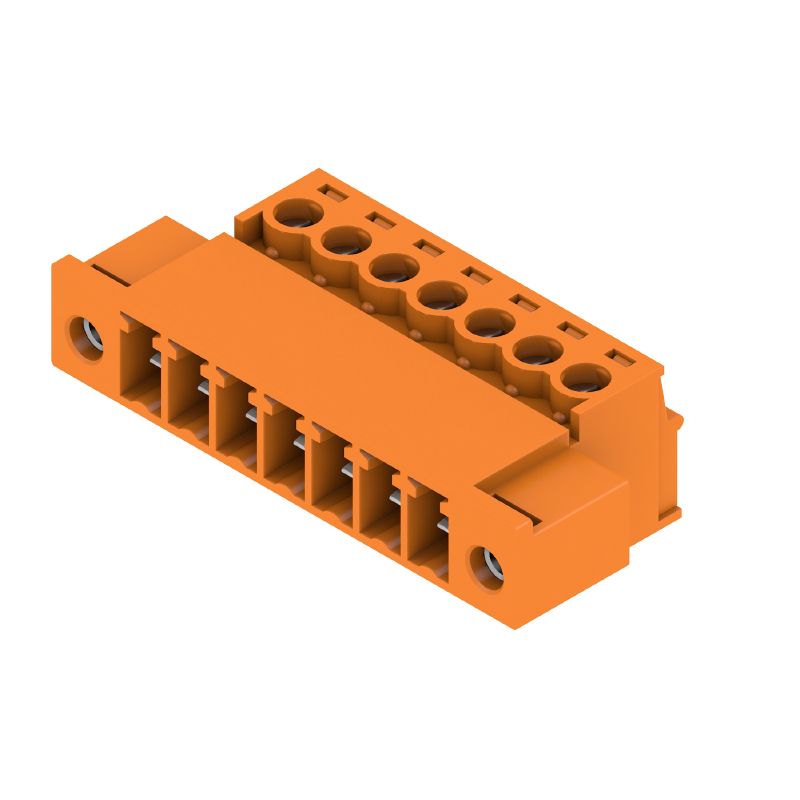

1970970000 - 7-Pole PCB Plug Connector 3.81mm Pitch for 180° Clamping (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SCZ 381/07/180F SN OR BX, a compact male PCB plug-in connector featuring a 381 mm pitch design with 7 poles for 180° connection Engineered for optimal performance, this connector supports clamping yoke connections with a maximum wire size of 15 mm² Delivered in boxes of 50, this product adheres to various compliance standards, including RoHS, ensuring safety and reliability It is suitable for applications requiring up to 320 V / 17.

5 A per IEC and 300 V / 10 A for UL specifications Perfect for your electronic projects, this connector combines efficiency and quality.

Features and Benefits:

•Clamping yoke connection method.

•Can be coded for secure connection.

•Finger-safe when plugged and back-of-hand-safe when unplugged.
