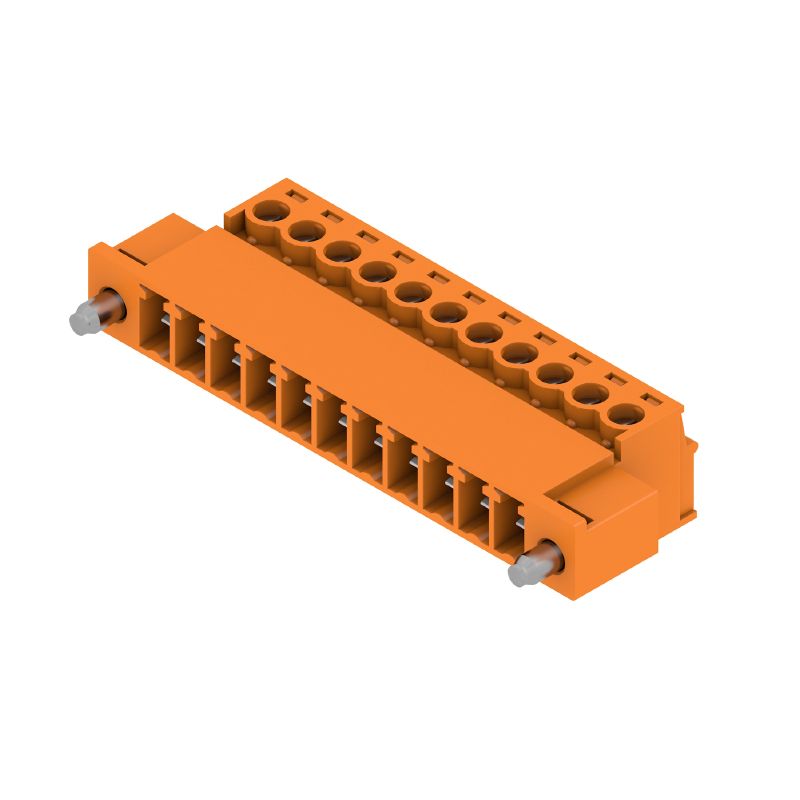

1970420000 - 3.81mm 11-Pole PCB Connector, 180° Angle, Clamping Yoke (Pack of 50)

1970420000 - 3.81mm 11-Pole PCB Connector, 180° Angle, Clamping Yoke (Pack of 50)

SKU: SKU: 1970420000   Download PDF

Select a Variant:
  • 1970420000 - 3.81mm 11-Pole PCB Connector, 180° Angle, Clamping Yoke (Pack of 50)
Qty:
Regular price Now $505.46   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $505.46 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Presenting a reliable male plug PCB connector engineered for a 381 mm pitch, featuring 11 poles angled at 180° This connector utilizes a clamping yoke method, accommodating wire sizes from 02 mm² to 15 mm², providing flexibility for various applications With certifications from IEC and UL, it guarantees dependable performance for industrial setups.

Features and Benefits:

    •Compliant with RoHS and UL standards.

    •Offers a compact design for easy integration.

    •Suitable for various wire sizes.

    •Touch-safe protection according to DIN VDE standards.

    •Field connection applications.

    •Electrical panel manufacturing.

Specifications:

 Type SCZ 3.81/11/180FI SN OR BX
 Rated Voltage 320 V / 300 V
 Rated Current 17.5 A / 10 A
 Number of Poles 11
 Pitch 3.81 mm
 Height 11.1 mm
 Depth 18.4 mm
 Storage Temperature -40 °C to 70 °C
 Operating Temperature -50 °C to 120 °C
 Rated Impulse Voltage 2.5 kV
 Clamping Range 0.08 mm² to 1.5 mm²
