1970350000 - 7-Pole 3.81mm Male PCB Connector with Clamping Yoke (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

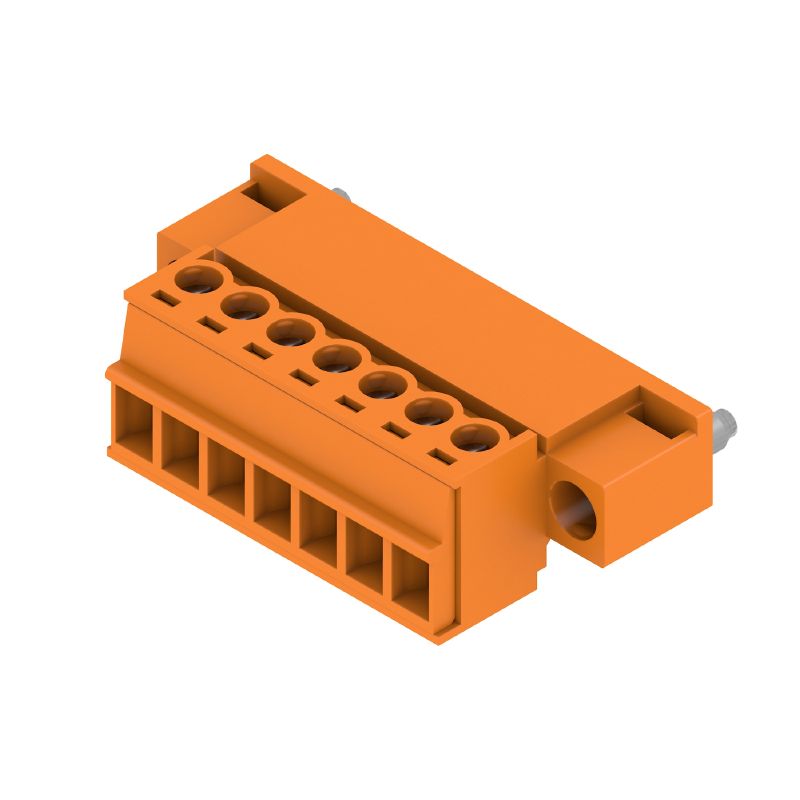

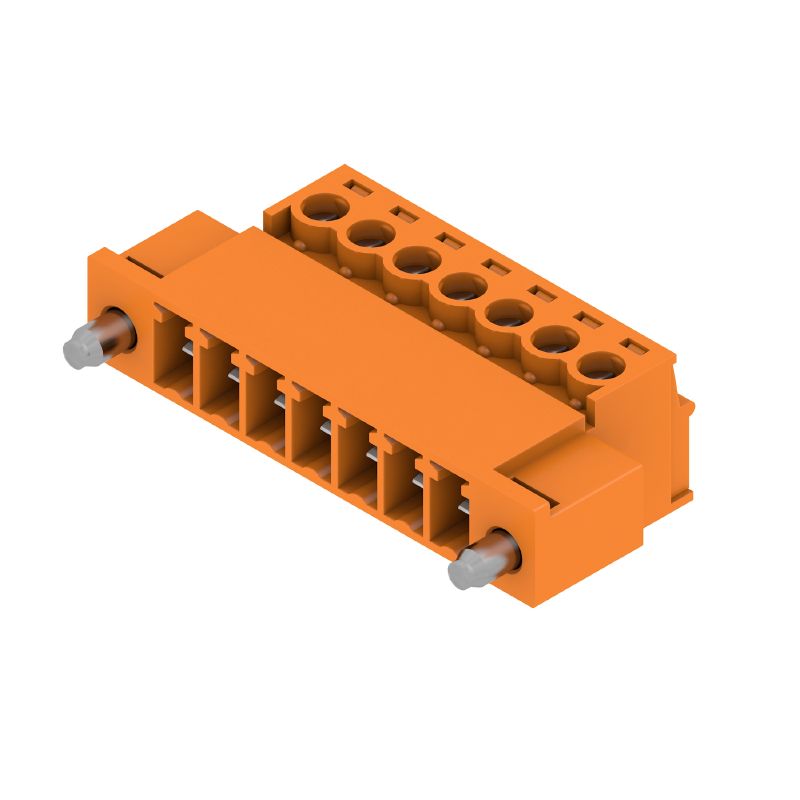

Discover the versatility of this male plug PCB connector, crafted with a 381 mm pitch and featuring 7 poles arranged at a 180° angle It employs a reliable clamping yoke connection, accommodating wire sizes with a maximum clamping range of 15 mm² This connector adheres to prominent standards including IEC and UL, and is capable of managing voltages up to 320 V and currents reaching 175 A It comes conveniently packaged in a box and holds several important certifications, such as cURus, ensuring its quality and reliability for various applications.

Features and Benefits:

•Clamping yoke connection for secure wire connections.

•Easy field connection method.

•Touch-safe design according to specified standards.

•Compatibility with a range of wire sizes, including AWG 28 to AWG 16.

•Can be coded for specific applications.

Specifications:
