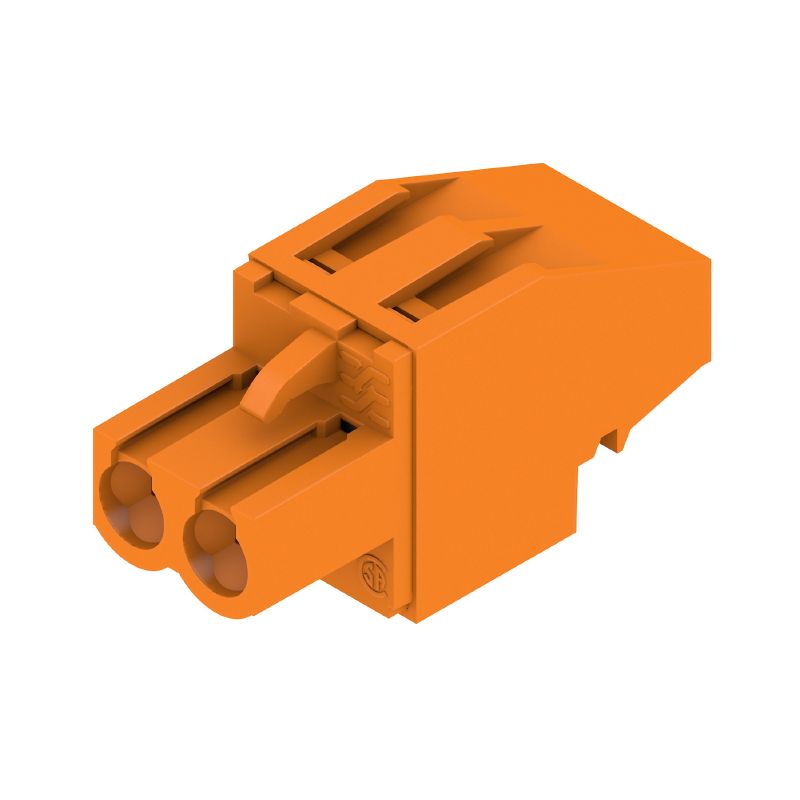

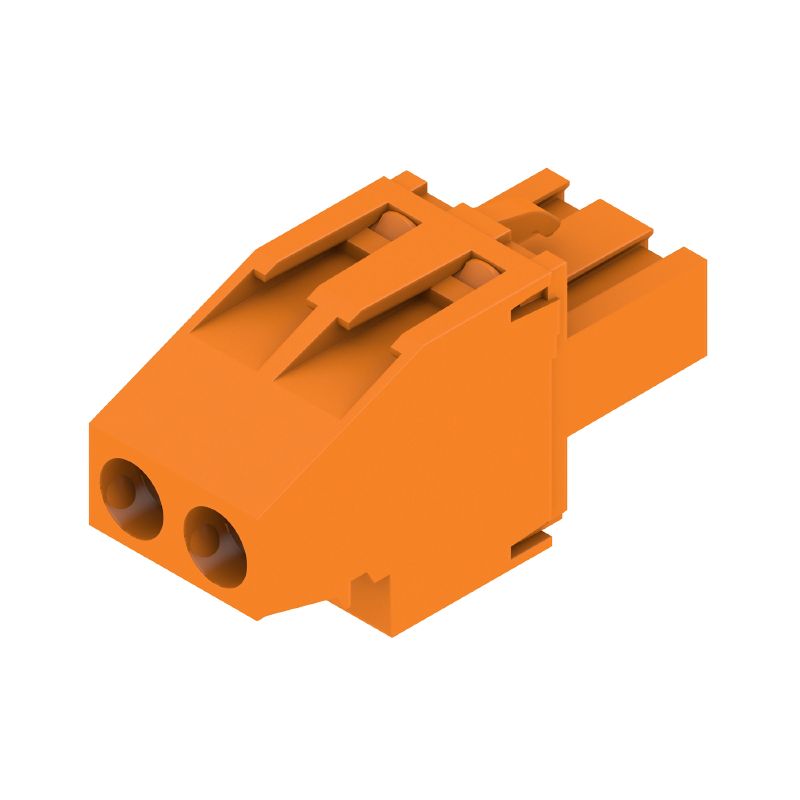

1958870000 - 5mm PCB Female Connector, 2 Poles, 23A Max Load (Pack of 180)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing this reliable PCB plug-in female connector, designed with a 500 mm pitch and equipped with 2 poles It features a clamping yoke connection that accommodates conductors with a maximum cross-sectional area of 4 mm² This connector adheres to both IEC and UL standards, supporting a voltage rating of up to 400 V for IEC and 300 V for UL It can efficiently handle current loads between 20 A and 23 A, depending on the specific application.

Each box contains a total of 180 connectors, making it a practical choice for your projects.

Features and Benefits:

•RoHS compliant without exemptions.

•Touch-safe protection according to DIN VDE standards.

•Easy field connection with a clamping yoke method.

•Plugging cycles rated for up to 25 uses.

•Can be coded for customized applications.

•Suitable for various electrical and electronic applications requiring reliable connections.

Specifications:
