1948460000 - 5.08mm PCB Female Connector, 24 Poles, 90° Angle (Pack of 12)

1948460000 - 5.08mm PCB Female Connector, 24 Poles, 90° Angle (Pack of 12)

SKU: SKU: 1948460000   Download PDF

Select a Variant:
  • 1948460000 - 5.08mm PCB Female Connector, 24 Poles, 90° Angle (Pack of 12)
Qty:
Regular price Now $196.84   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $196.84 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Ensure secure and reliable connections with this 508 mm pitch PCB plug-in female connector Featuring a 24-pole configuration at a precise 90° angle, it is designed with a clamping yoke connection, accommodating wires of up to 4 mm² Each unit comes neatly packaged in a box for easy storage or transport.

Features and Benefits:

    •Clamping yoke connection for secure wire attachment.

    •Easy installation with minimal space requirements.

    •Compliant with RoHS and REACH standards.

Specifications:

 Rated Voltage IEC 400 V
 Rated Current IEC 23 A
 Clamping Range Max 4 mm²
 Rated Voltage UL 300 V
 Rated Current UL 20 A

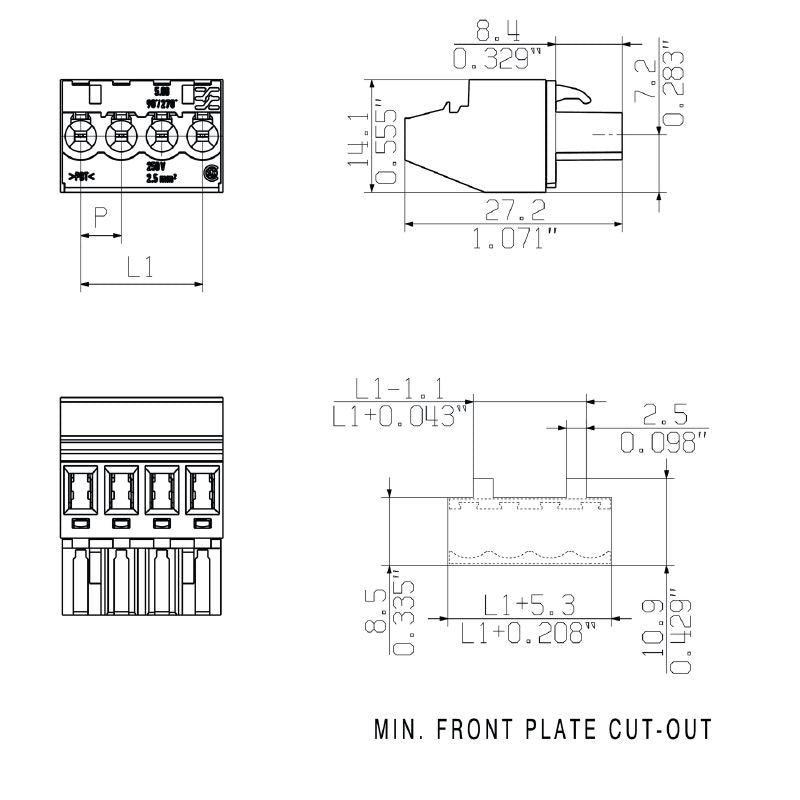

 Depth 27.2 mm
 Height 14.1 mm
 Width 121.92 mm
 Insulating Material PBT
 Protection Degree IP20
 Storage Temperature Min -40 °C
 Storage Temperature Max 70 °C
 Operating Temperature Min -50 °C
 Operating Temperature Max 100 °C
 Clamping Range Min 0.13 mm²
 Conductor Outlet Direction 90°
