1947730000 - 5.08mm 22-Pole PCB Connector for Field Connections (Pack of 12)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

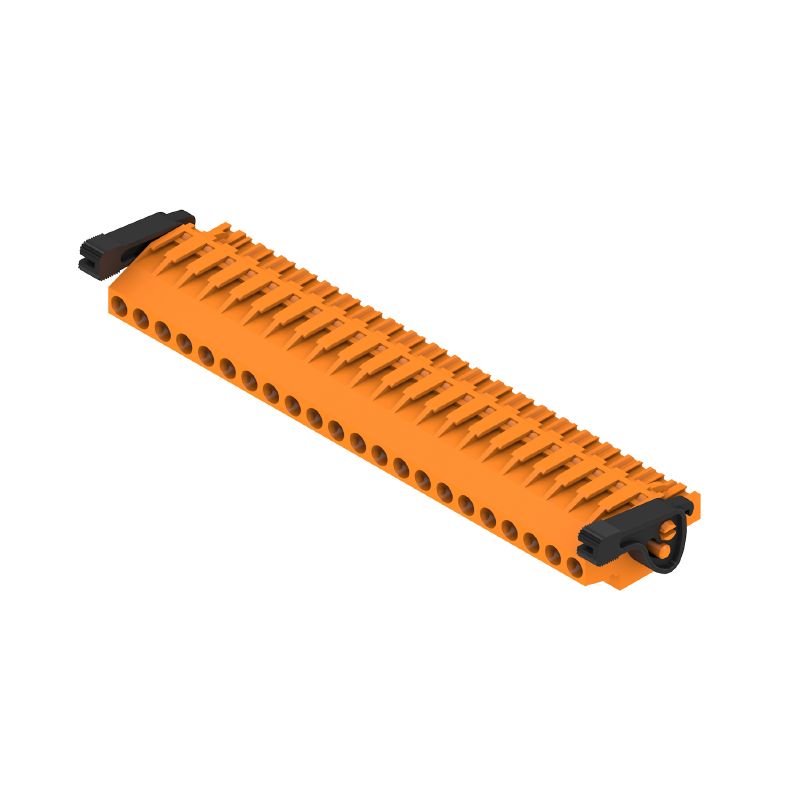

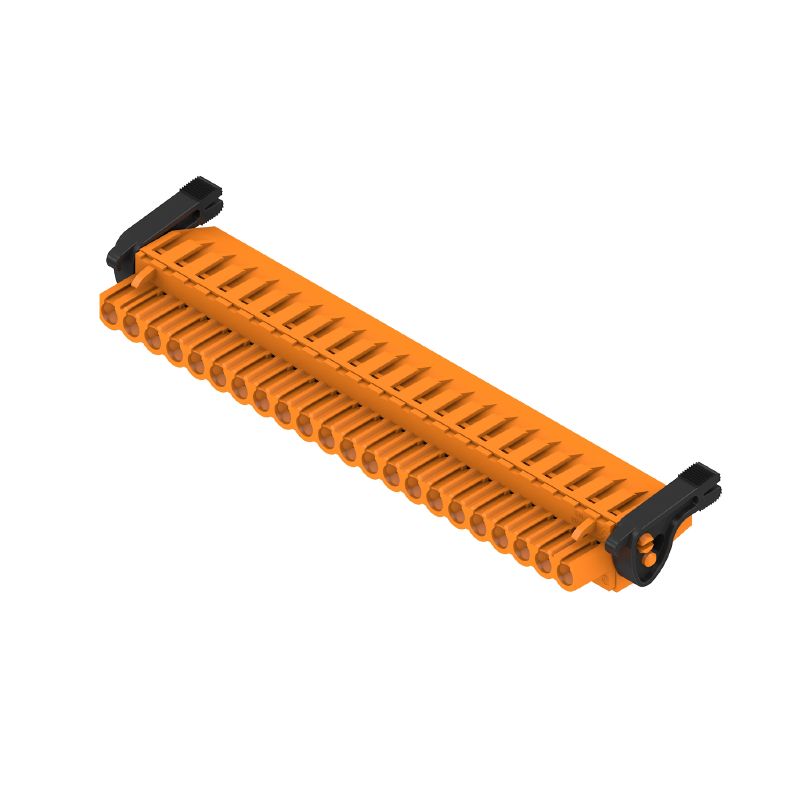

Introducing the BLZP 508HC/22/270LR SN OR BX, a reliable female plug-in PCB connector boasting a 508 mm pitch and accommodating up to 22 poles for efficient field connections This connector features a robust clamping yoke mechanism with a maximum clamping capacity of 4 mm², ensuring secure and stable connections Packaged in an easy-to-handle box, it complies with IEC standards for voltage and current ratings of 400 V and 23 A, along with UL standards rated for 300 V and 20 A.

For optimal longevity, it is recommended to store this connector in environments with temperatures not exceeding 50 °C and moderate humidity levels.

Features and Benefits:

•Compatible with a clamping yoke connection method.

•Touch-safe protection according to DIN VDE standards.

•Can be coded for secure connections.

•Low volume resistance.

•Available in orange color.

Specifications:
