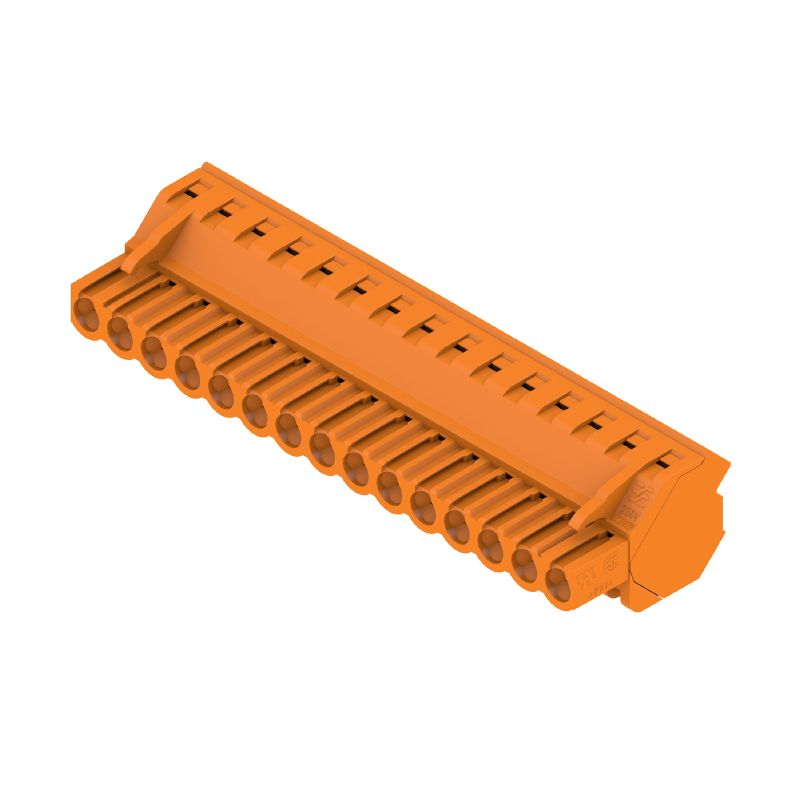

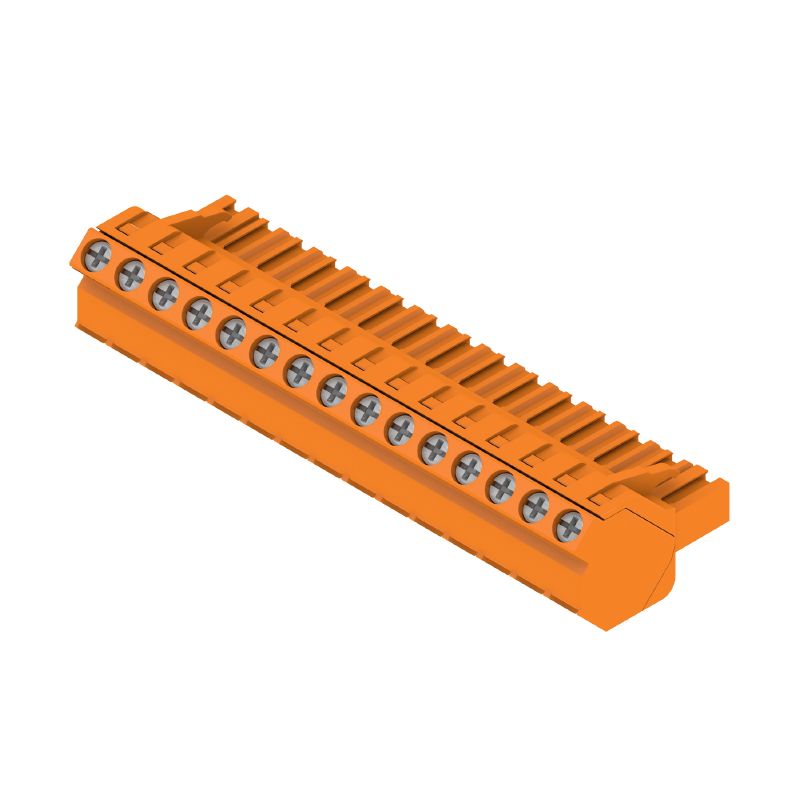

1946380000 - 5.08mm 15-Pole PCB Connector with Clamping Yoke, 400V Rated (Pack of 24)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing our versatile PCB plug-in connector, expertly crafted for reliable field connections This female connector boasts a pitch of 508 mm with a configuration of 15 poles Featuring a robust clamping yoke connection, it can handle a maximum conductor size of 4 mm² It's engineered to operate at 400 V and 175 A, adhering to IEC standards, and also compliant with UL regulations for 300 V and up to 15 A, covering a clamping range between 0.

2 to 4 mm² Perfect for various electrical applications, this connector ensures secure and efficient connections.

Features and Benefits:

•Safe from finger touch according to DIN VDE 57 106.

•IP20 protection when plugged and IP10 when unplugged.

•Compatible with a wide range of conductors, accommodating AWG from 30 to 12.

•Suitable for a variety of conductor types including solid and stranded wire.

•Can be coded for specific applications.

•Durable with a high number of plugging cycles.

Specifications:
