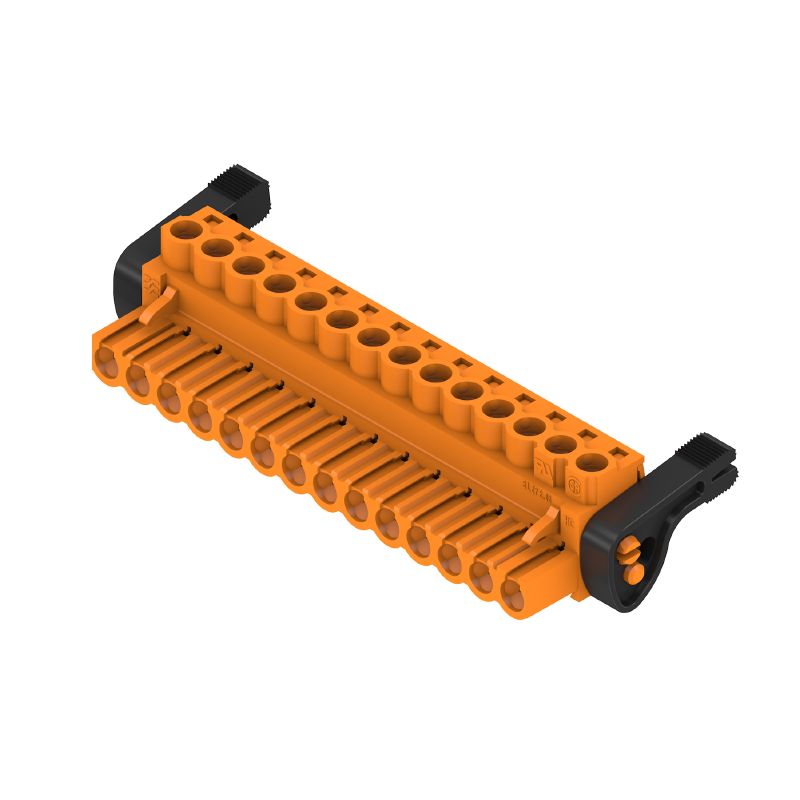

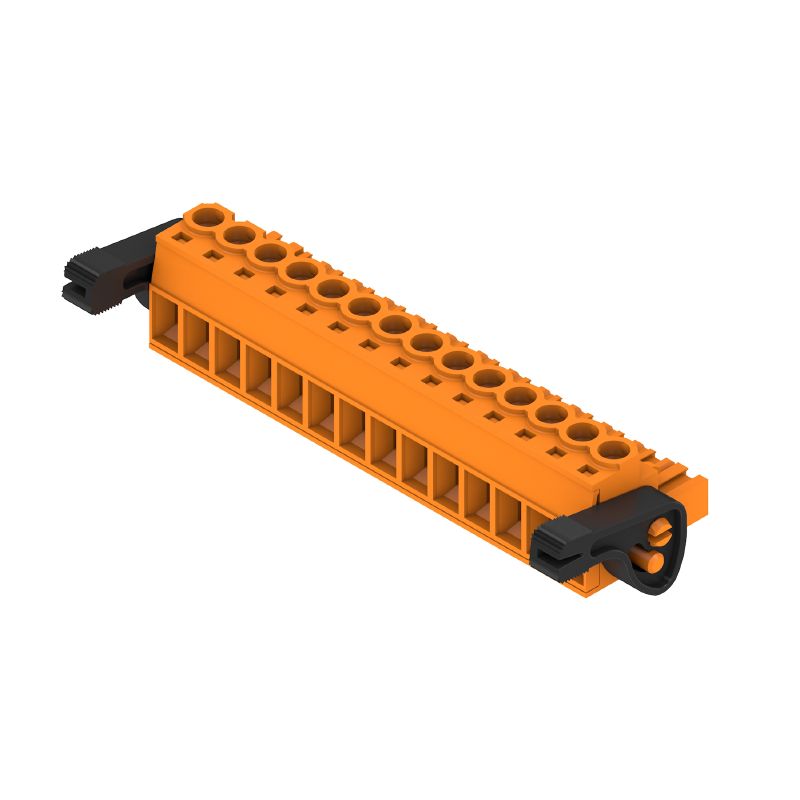

1945410000 - 14-Pole PCB Connector, 180° Orientation, 5.08mm Pitch (Pack of 18)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

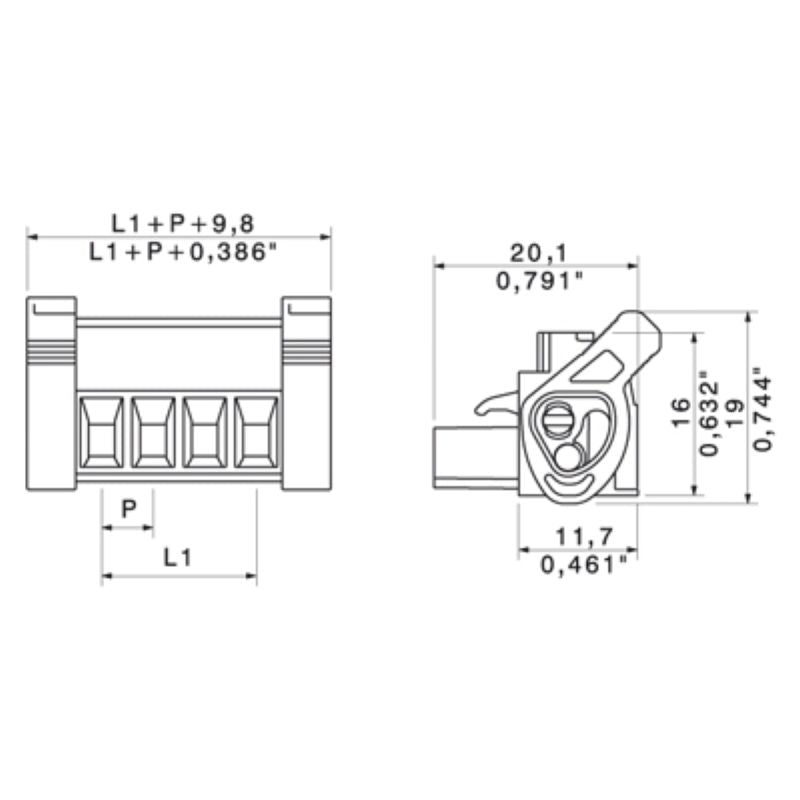

Introducing a reliable female plug-in connector ideal for PCB applications With a pitch of 508 mm and equipped with 14 poles arranged in a 180° configuration, this connector ensures efficient connections It accommodates conductor cross-sections ranging from 02 to 4 mm² through a secure clamping yoke, adhering to essential safety standards Dimensions are precise, measuring 296 mm in depth, 146 mm in height, and 80.

92 mm in width, with a net weight of 24 g This connector is designed for easy and safe field terminations across different wire types.

Features and Benefits:

•RoHS compliant.

•Field connection type.

•Clamping yoke connection method.

•Touch-safe protection according to DIN VDE standards.

•Can be coded for specific applications.

•Compatible with a variety of conductor types.

•Includes durable tinned contact material.

•Meets IP20 and IP10 protection degrees based on connection status.

•Stripping length is adjustable based on wire specifications.

Specifications:
