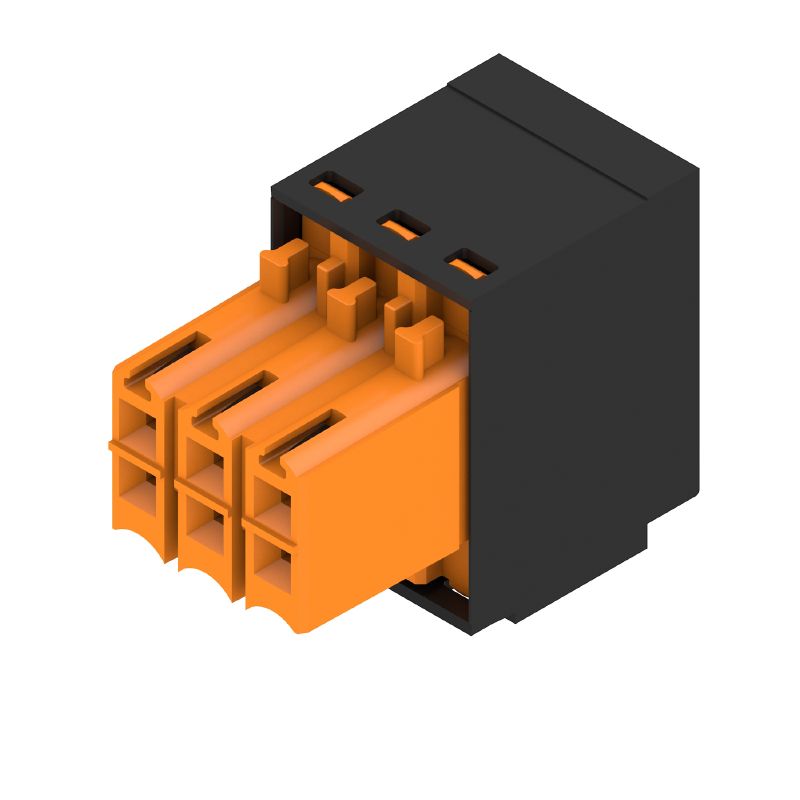

1944590000 - 3.50mm PBT PCB Connector, 6 Poles, 180° Angled (Pack of 174)

Description:

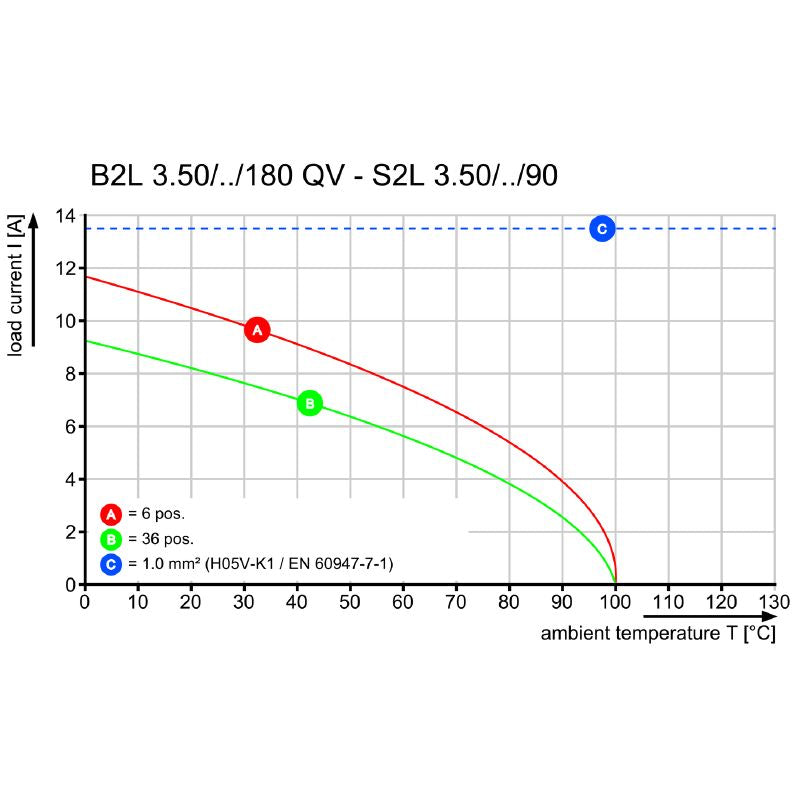

Introducing the B2L 350/06/180QV3 SN BK BX connector, an angled female PCB connector boasting a compact 350 mm pitch with six poles set at 180° This connector employs a reliable tension-clamp mechanism, accommodating wire gauges of up to 1 mm² It adheres to ROHS standards for safety and compliance, and each unit comes packaged with a UL certificate (number E60693) Capable of handling a maximum current of 10.

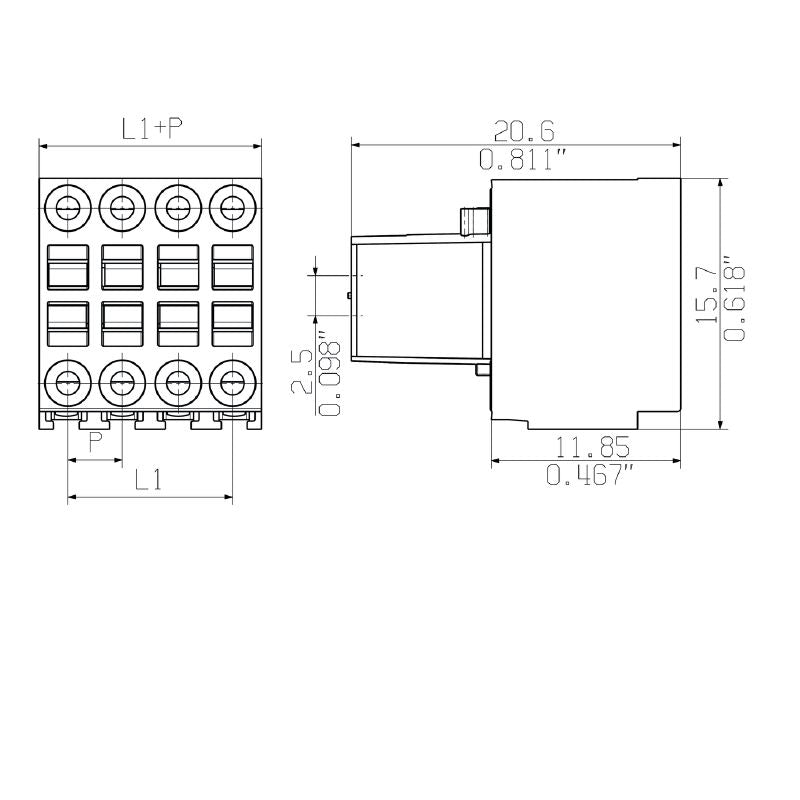

6 A, it is suitable for wire connections in the range of AWG 28 to AWG 18 The connector measures 206 mm in depth, 157 mm in height, and 105 mm in width, weighing just 095 g Made from durable PBT material, it offers IP20 protection when properly mounted, making it an excellent choice for your electronic projects.

Features and Benefits:

•Tension-clamp connection allows simple and secure wiring.

•Compact design suitable for PCB applications.

•Compatible with a variety of wire gauges.

•High reliability with a maximum plugging force of 5 N.

•Can be coded for secure connections.

•Used in PCB plug-in connectors for various electronic applications.
