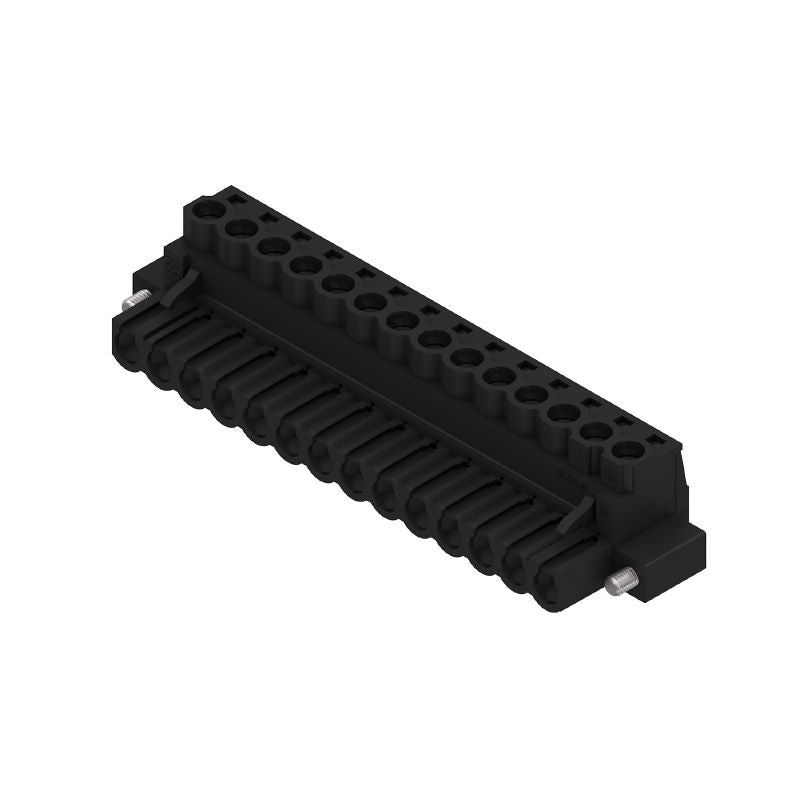

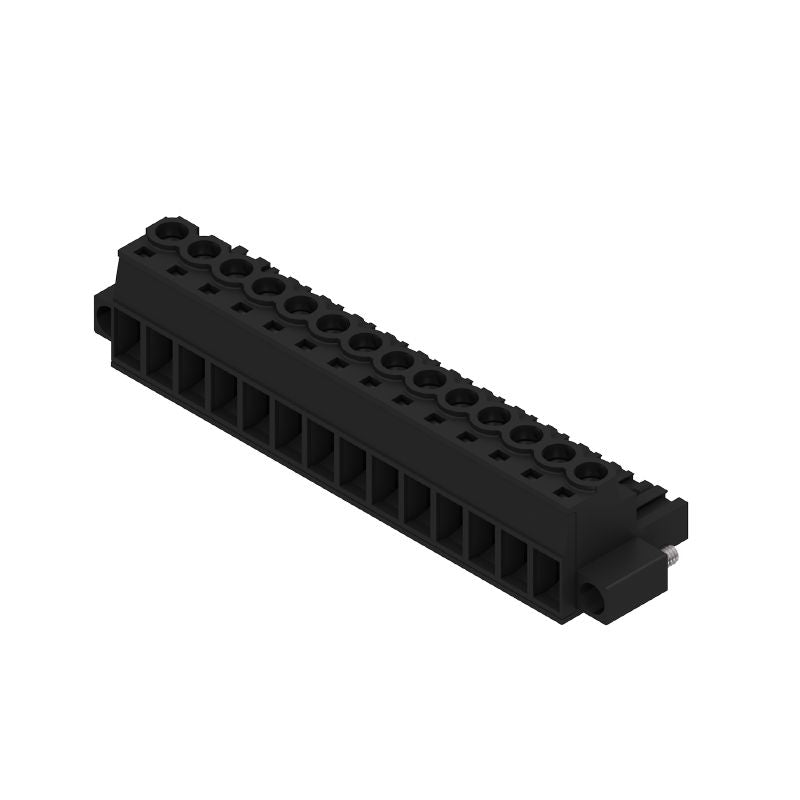

1944450000 - 180° 14-Pole Female PCB Connector, 5.08mm Pitch (Pack of 18)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the BLZP 508HC/14/180F SN BK BX, a specialized female plug PCB connector featuring a 508 mm pitch and 14 terminals arranged at a 180° angle This connector utilizes a clamping yoke design, allowing for a maximum wire gauge of 4 mm² It is engineered to handle diverse voltage requirements, compatible with 400 V and 23 A according to IEC specifications, and 300 V and 20 A as per UL regulations.

Each unit is conveniently packaged in a sturdy box, making it ideal for both professional and personal use.

Features and Benefits:

•RoHS compliant without any exemptions.

•Touch-safe protection compliant to DIN VDE standards.

•Can be coded.

•Plugging cycles rated for 25 cycles.

•Maintains a volume resistance of less than or equal to 5 mΩ.

Specifications:
