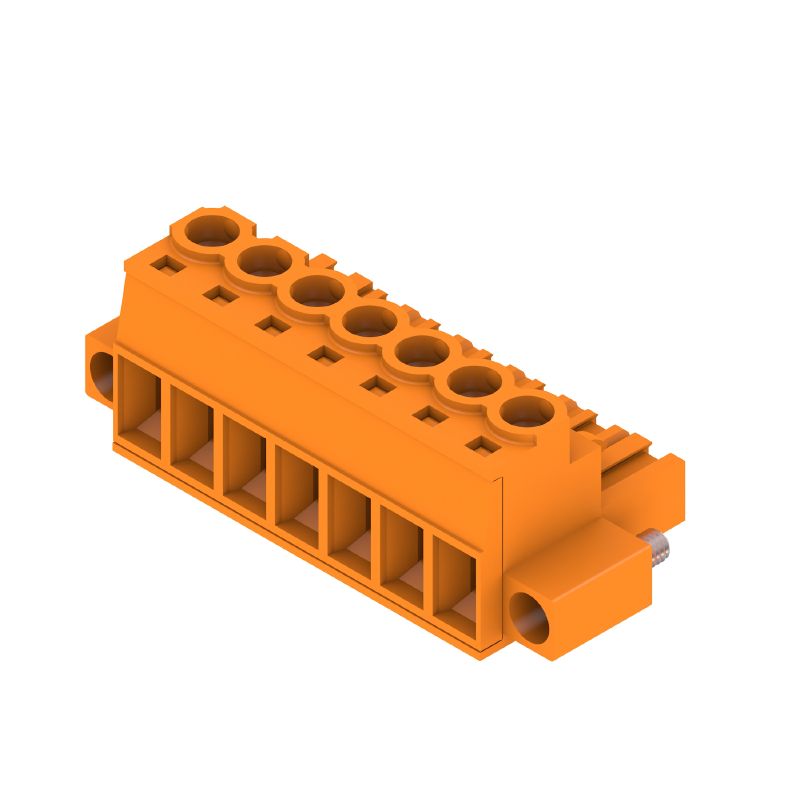

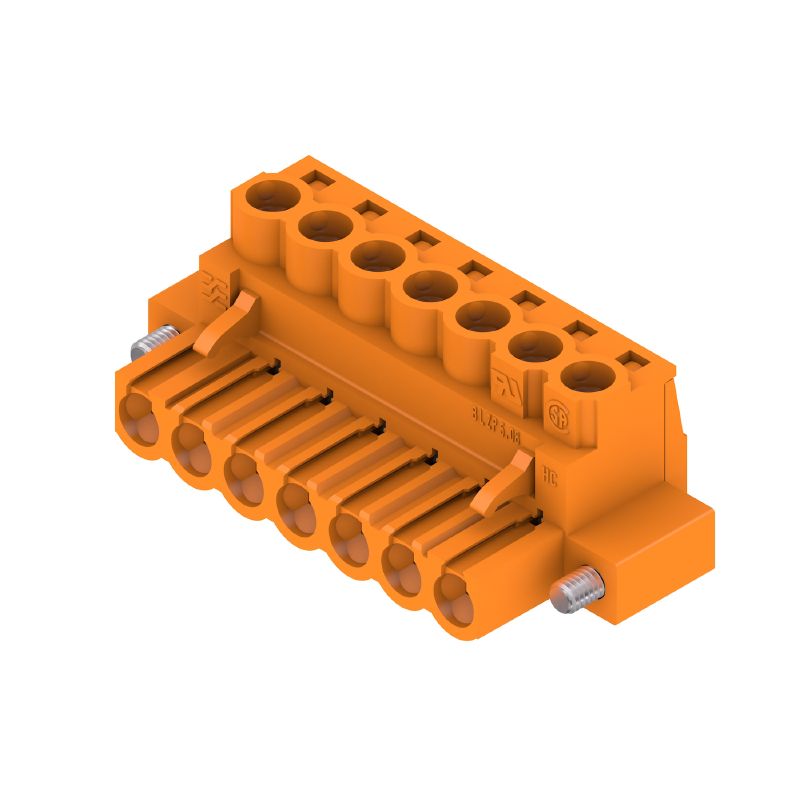

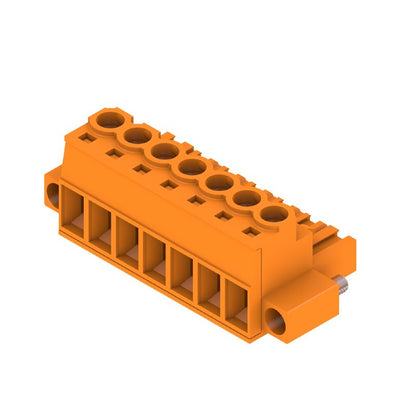

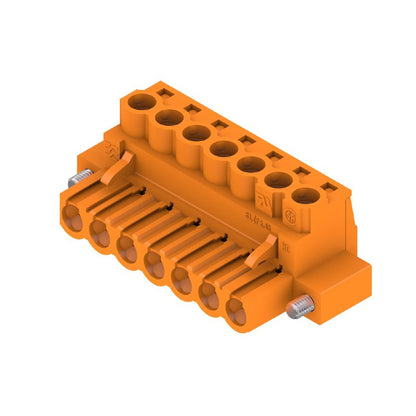

1944140000 - 5.08mm Female PCB Connector with 7 Poles and Clamping Yoke (Pack of 36)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a versatile PCB plug-in connector, specifically crafted for female plugs with a 508 mm pitch and 7 poles This connector employs a reliable clamping yoke connection and accommodates a maximum conductor size of 4 mm² It meets stringent IEC and UL standards: rated for 400 V and 23 A under IEC for conductors ranging from 02 to 4 mm², and 300 V and 20 A under UL for AWG sizes from 26 to 12 Perfect for ensuring secure and efficient connections in your electrical applications.

Features and Benefits:

•Compliant with RoHS and REACH regulations.

•IP20 rated protection when plugged in, IP10 when unplugged.

•Safety from touch according to DIN VDE standards.

•Can be coded to prevent misengagement.

•Suitable for a variety of wire sizes and connection types.

Specifications:
