1940830000 - 3.81mm Female Plug Connector for PCB, 12 Poles, 50 Units (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

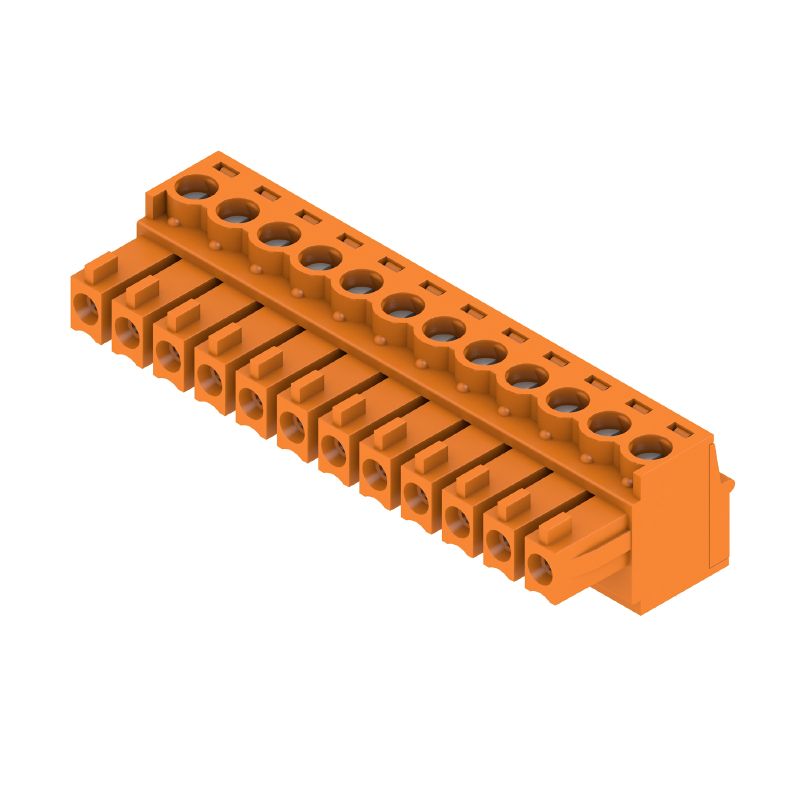

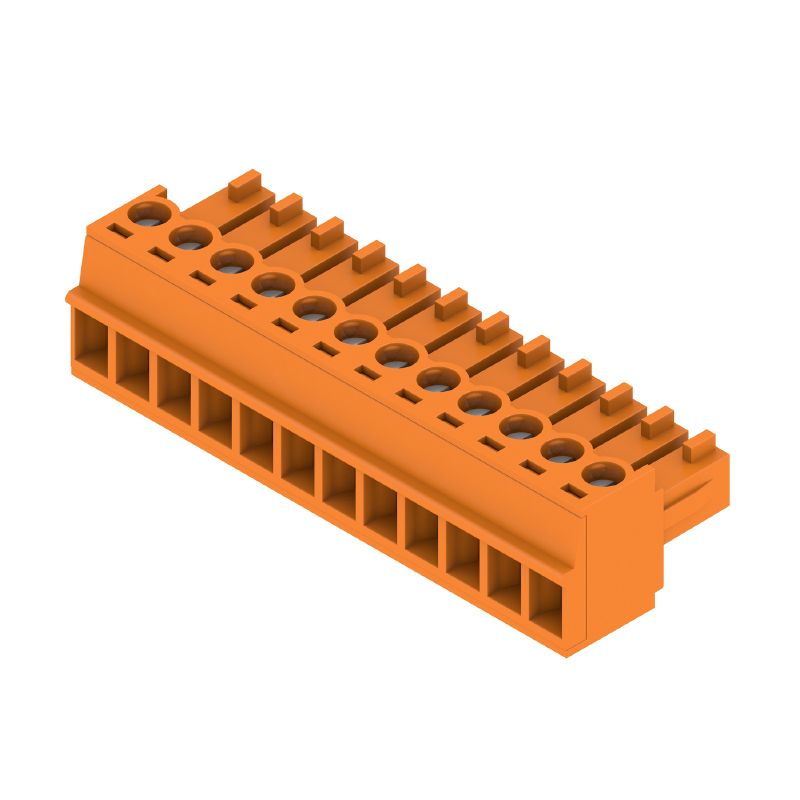

Introducing the BCZ 381/12/180 SN OR BX female plug-in connector, specially crafted for PCB applications Featuring a compact 381 mm pitch, this connector supports up to 12 poles, ensuring reliable connections Its clamping yoke design accommodates a maximum wire range of 15 mm² Certified to RoHS standards, this versatile connector is rated for 320 V at 175 A per IEC standards and 300 V at 10 A under UL regulations.

Each order comes with a box containing 50 connectors, making it a practical choice for your electronic projects.

Features and Benefits:

•Clamping yoke connection method.

•Compliant with RoHS.

•Touch-safe protection according to DIN VDE standards.

•Can withstand plugging cycles up to 25.

•Color coded for easy identification.

•Field connection in electronic systems.

•Signal transmission applications.

Specifications:
